Bradley SS-2/IR/JUV Installation Instructions Manual

Express lavatory system ss-series
Hide thumbs
Table of Contents

Advertisement

Quick Links

IMPORTANT
Read this entire installation manual
to ensure proper installation, then
file these instructions with the
owner or maintenance department.
Flush all the water supply lines
before making connections.
Wall anchors used must have a
minimum pull-out rating of 1,000
lbs.
Product warranties may be found
under "Product Information" on our
web site at www.bradleycorp.com.
215-1243 Rev. E; EN 08-805
© 2008 Bradley Corporation
Page 1 of 19
4/24/08
Installation
Instructions
OBSOLETE
SS-2/IR/STD
SS-2/IR/JUV

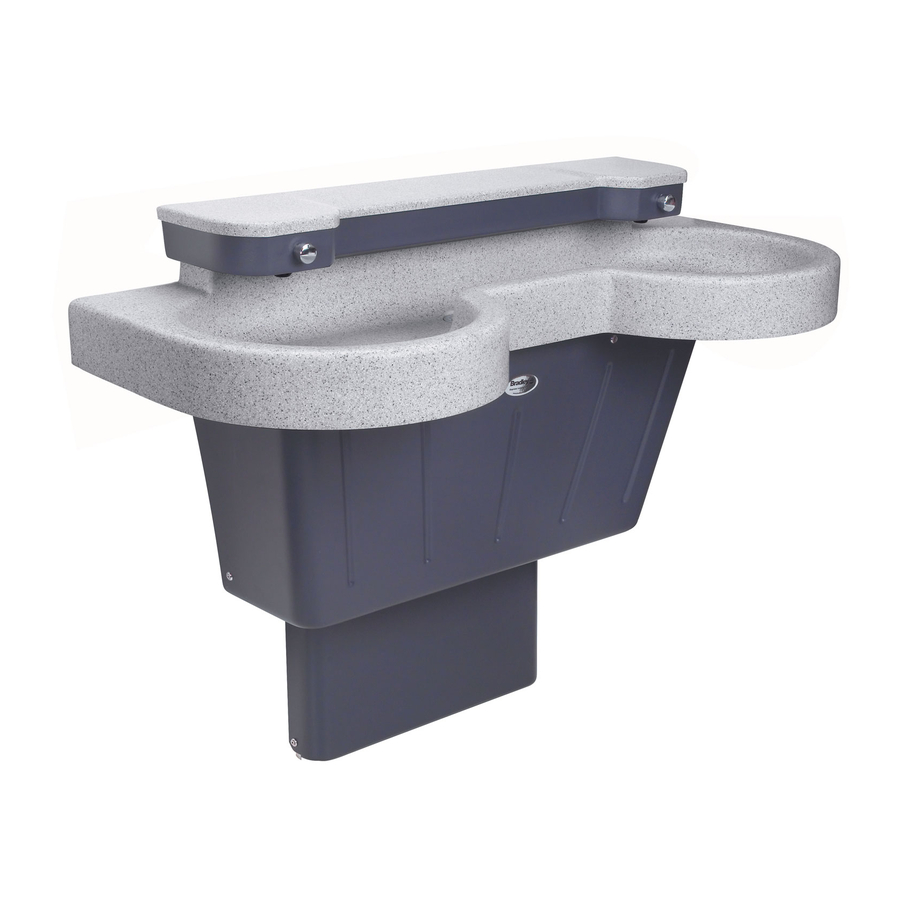

Express® Lavatory
System SS-Series
(Standard* and Juvenile Height)
*Express® Lavatory Systems
are ADA compliant.

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . .2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Installation Instructions . . . . . . . . . . . . . . . . 5-11
Soap Dispenser Maintenance . . . . . . . . . . .13-14
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . .14
Assembly of Components . . . . . . . . . . . . . .15-16
Check Valve Troubleshooting . . . . . . . . . . . . . .17
Solenoid Valve Troubleshooting . . . . . . . . .17-18
Vernatherm™ Valve Maintenance & Service . .19
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY
http://www.bradleycorp.com
FAX 262-251-5817

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS-2/IR/JUV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley SS-2/IR/JUV

Summary of Contents for Bradley SS-2/IR/JUV

  • Page 1: Table Of Contents

    © 2008 Bradley Corporation Page 1 of 19 4/24/08 Installation Instructions OBSOLETE SS-2/IR/STD SS-2/IR/JUV Express® Lavatory System SS-Series (Standard* and Juvenile Height) *Express® Lavatory Systems are ADA compliant. Table of Contents Pre-Installation Information ....2 Dimensions .

  • Page 2: Pre-Installation Information

    Always check local codes and ordinances for compliance. Barrier-free and ADA compliant - juvenile height mounting The SS-2/IR/JUV Express® Lavatory System is compliant with Americans with Disabilities Act (ADA) Accessibility Guidelines for Buildings and Facilities: Building Elements Designed for Children's Use;...

  • Page 3: Dimensions

    Express® Lavatory System SS-Series Installation - Obsolete SS-2/IR/STD, SS-2/IR/JUV SS-2/IR/STD Express® Lavatory System Dimensions Standard Height Mounting 38-1/4" (971) 8" (203) 6" (152) 22" (559) 34" (864 50" (1270) 8-1/2" (216) 21" (533) 10" (254) Radius 8" (203) Radius 30"...
  • Page 4 Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV Standard Height SS-2/IR/STD Juvenile Height SS-2/IR/JUV 4/24/08 11" (279) 38" (965) 34" (864) 29" (737) 9" (229) 11" (279) 34" 30" (864) (762) 25" (635) 9" (229) Bradley Corporation • 215-1243 Rev. E; EN 08-805 Installation - Obsolete 4"...

  • Page 5: Installation Instructions

    ELECTRICAL OUTLET (6) 3/8" WALL ANCHORS WITH MINIMUM PULL- OUT RATING OF 1,000 LBS. CENTERLINE Installation Instructions continue . . . Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV 23-1/2" (597) 9-3/8" (238) 1" (25) 3" (76) 1/2" NPT HOT AND COLD SUPPLIES,...
  • Page 6 Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV SS-2/IR/JUV Express® Lavatory System Dimensions Juvenile Height Mounting (MM) 28" (711) 24-5/8" (625) 21" (533) 15-5/8" (397) 11-3/8" (289) Figure 1b 4/24/08 23-1/2" (597) 9-3/8" (238) 13-1/2" (343) 2-3/4" (70) 1-1/2" NPT DRAIN - STUB OUT 2"...
  • Page 7 NOTE: The anchors will be used to mount the Express® bowl and frame to the wall. 110 Volt GFCI ELECTRICAL OUTLET Figure 2 Bradley Corporation • 215-1243 Rev. E; EN 08-805 Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV 1-1/2" NPT DRAIN - STUB OUT 1/2" NPT HOT AND COLD SUPPLIES OR TEMPERED SUPPLY - STUB Installation Instructions continue .
  • Page 8 Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV Installation Instructions continued . . . Step 2: Mounting frame to wall 1. Remove the eight Torx-head screws securing the panel to the frame, and remove the panel (see Figure 3). Note: Scuff panel does not need to be removed.
  • Page 9 3/8" BOLT WASHER Figure 5 Bradley Corporation • 215-1243 Rev. E; EN 08-805 BACK VIEW BOWL ASSEMBLY 1/4"-20 X 3/8" PAN HEAD SCREWS AND WASHERS Installation Instructions continue . . . Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV 3/8" BOLT WASHER 4/24/08...
  • Page 10 Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV Installation Instructions continued . . . Step 4: Connecting supply and drain 1. FOR HOT AND COLD SUPPLY: Connect the flexible hoses installed to the Vernatherm™ Mixing Valve to the hot and cold water supply piping from the wall (see Figure 6a).
  • Page 11 COMPRESSION NUT WATER SUPPLY RED WIRE Figure 8 Bradley Corporation • 215-1243 Rev. E; EN 08-805 WHITE WIRE GREEN WIRE Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV GREEN SUPPLY TUBE (FROM SPRAYHEAD) CONNECTOR TO TRANSFORMER CONNECTOR TO SOLENOID FROM SPRAYHEAD 4/24/08...

  • Page 12: Cleaning And Maintenance Instructions

    Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV Cleaning and Maintenance Instructions IMPORTANT: Strong alkaline or acid-based chemicals and cleansers should not be used to clean Terreon®. If these chemicals come in contact with the Terreon® surface, wipe off the surface immediately and flush with soapy water.

  • Page 13: Soap Dispenser Maintenance

    133-107 (GRAY) 133-131 (PUTTY) 133-131A (COAL) Figure 9b Bradley Corporation • 215-1243 Rev. E; EN 08-805 Express® Lavatory System SS-Series ACTIVATION LABEL 204-476 (qty. 2) (one above each activation zone) FILLER HOLE (2) SOAP DISPENSER VALVE S09-007 4/24/08 SS-2/IR/STD, SS-2/IR/JUV...

  • Page 14: Step 3: Cleaning Instructions

    Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV Soap Dispenser Maintenance continued . . . Step 2: Change soap type 1. Pour out all of the soap from the dispenser. 2. Rinse the soap dispenser with hot water several times until all of the residue is removed, and pump the valve until clean water appears.

  • Page 15: Assembly Of Components

    269-653 WASHER 269-1188 STOP/CHECK VALVE S27-102 Bradley Corporation • 215-1243 Rev. E; EN 08-805 Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV SPRAYHEAD COVER/SHELF (part number varies with color of unit—contact your local Bradley representative for assistance) FRAME Standard S17-274 Juvenile S17-275...

  • Page 16: Assembly Of Components

    Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV Assembly of Components continued . . . Sensor assembly and solenoid valve To access solenoids and sensors: Remove the eight Phillips-head screws located in the bottom of the sprayhead body and lift the cover/shelf off.

  • Page 17: Check Valve Troubleshooting

    • reconnect to the adjacent valve and turn on electrical and water supplies to the unit; • pass your hand in front of the sensor. If the station still fails to turn on, replace the sensor (see page 16). Bradley Corporation • 215-1243 Rev. E; EN 08-805 Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV 4/24/08...
  • Page 18 Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV Installation - Obsolete 4/24/08 Bradley Corporation • 215-1243 Rev. E; EN 08-805...

  • Page 19: Maintenance Instructions

    No Water Cold Cold Cold Cold No Water No Water Cold Cold Cold Express® Lavatory System SS-Series SS-2/IR/STD, SS-2/IR/JUV Power Element* S27-019 Valve Slide S01-039 Cover 107-261B THEN Valve Delivers Mixed 107° Valve shuts off or drips Valve shuts off or drips Cold Cold/below 107°...
