Drija AMERICA 90 User Manual

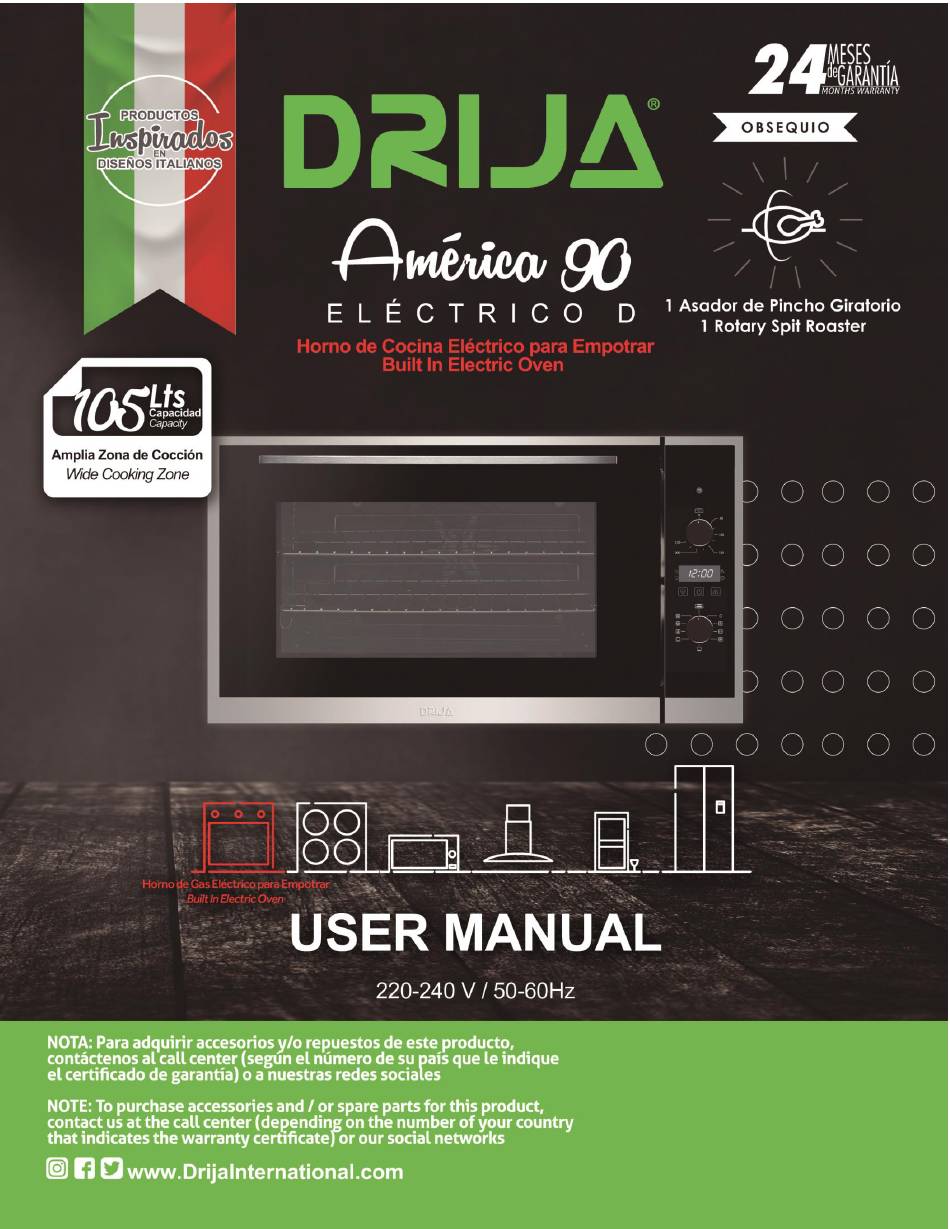

Drija AMERICA 90 User Manual

Built in electric oven 220-240 v / 50-60hz
Hide thumbs Also See for AMERICA 90:

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMERICA 90 and is the answer not in the manual?

Questions and answers

Related Manuals for Drija AMERICA 90

Summary of Contents for Drija AMERICA 90

  • Page 2: Table Of Contents

    User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO 1. SAFETY WARNING ......................2 2. PRODUCT DESCRIPTION ....................4 3. HOW TO USE YOUR OVEN ....................5 4. HOW TO KEEP YOUR OVEN ..................... 11 5. PRACTICAL COOKING TIPS ....................16 6.

  • Page 3: Safety Warning

    HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO SAFETY WARNING Thanks for buying a Drija oven. We are confident that with your new oven you will enjoy a pleasant culinary experience now and in the future. Please read carefully all the instructions contained in this manual. It provides you with important information about the safe installation, use and maintenance of the appliance, as well as useful tips to get the most out of your oven.
  • Page 4 User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO  Use of the appliance barefoot;  Pulling the appliance or power cord to unplug it from the power outlet;  Obstruct ventilation or heat dissipation slots;  Allow small appliance power cords to come into contact with hot parts of the appliance; ...

  • Page 5: Product Description

    User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO PRODUCT DESCRIPTION A. Control panel B. Button to select the cooking functions. C. Knob to adjust the cooking temperature. D. Electronic cooking programmer E. Oven light: When the light is on, it indicates that the oven is heating up. It will turn off when the temperature setting is reached.

  • Page 6: How To Use Your Oven

    User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO HOW TO USE YOUR OVEN This oven combines the advantages of a traditional convection oven with those of a forced oven with fan. It has extremely versatile functionality that allows you to easily and safely choose between 9 different cooking modes.
  • Page 7 User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO Ventilated convection mode Set the thermostat knob (c) between 50oC and 250oC. The outer heating elements are activated at both the top and bottom of the furnace, as well as the fan. Based on the convection model, this combination of characteristics increases the effectiveness of thermal radiation from heating elements through forced air circulation throughout the furnace.
  • Page 8 User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO Forced fan mode Set the thermostat knob (C) between 50oC and 250oC. The circular heating element and fan will light up. The heat remains constant and uniform throughout the oven, the air cooks and dora food evenly throughout its surface.
  • Page 9 User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO Countdown To set up a countdown, a signal sounds after time has elapsed. This function does not affect the operation of the furnace. Cooking time To set how long the oven will be used. End time To set when the oven should be turned offagain.
  • Page 10 User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO 1. To change the time that has already been set, press the Selection button repeatedly, until the function indicator flashes. Set the current time with the or button. w After approx. 5 seconds, the flicker stops and the clock shows the configured time of day. The device is now ready for use.
  • Page 11 User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO sounds for 2 minutes.  Press any button to turn off the signal, cooking time Press Selection repeatedly, until the Cooking Time function indicator blink. Using the or the button, set the required cooking time. After approximately 5 seconds, the screen returns to the current time.

  • Page 12: How To Keep Your Oven

    User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO HOW TO KEEP YOUR OVEN Important: Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, you should clean it frequently.  Do not use steam equipment to clean the oven. ...
  • Page 13 User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO If you choose our self-cleaning oven, you can follow the instructions below: Inside the oven door: Clean the surface with a cloth moistened with hot water and non- abrasive liquid detergent, then rinse and dry thoroughly. Inside the oven: The interior of your oven is coated with a special enamel of self-cleaning microporousenamel, which at a normal cooking temperature of between 200 and 300oC,...
  • Page 14 User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO Replace the glass lid and reconnect the oven to the mains. WARNING: Make sure the appliance is turned off before replacing the lamp to avoid the possibility of electric shock. Mounting on a power cord Opening the terminal board: ...
  • Page 15 User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO Connecting the power cord to the grid Install a standardized plug corresponding to the load indicated on the data plate. When connecting the cable directly to the mains, install an omnipolar automatic switch with a minimum contact opening of 3 mm between the appliance and the network.
  • Page 16 User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO This product should not be disposed of together with household waste. This product must be disposed of in an authorized place for recycling electrical and electronicequipment. By collecting and recycling waste, it helps save natural resources and ensures that the product is disposed of in a healthy and environmentally friendly manner.

  • Page 17: Practical Cooking Tips

    User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO PRACTICAL COOKING TIPS Using the grill This oven offers three different roasting modes. Use the "Grill" setting to grill small portions such as toasted sandwiches, hot dogs, etc., to perfection. The "Maxigrill" position is the best for roasting food quickly. For better heat distribution, not only to brown the surface but also to cook the bottom, select the "Ventilated Maxigrill"...
  • Page 18 User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO and fish, use low-temperature settings (150oC-220oC). For red meats that should be well cooked on the outside and tender and juicy on the inside, it is a good idea to start with a high temperature setting (200 c-220 c) for a short time and then turn off the oven.
  • Page 19 User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO hot parts of the appliance;  Exposure of the appliance to atmospheric agents (rain, sun);  Use of the oven for storage;  Use of flammable liquids near the appliance;  Using adapters, multiple plugs and/or extension cords; ...

  • Page 20: Instalación

    User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO INSTALLATION Important: The oven should be cut off before any adjustment or maintenance is made. Installation of built-in furnaces To ensure proper operation of the built-in oven, the kitchen unit must be of a suitable size.
  • Page 21 User Manual HORNO EMPOTRABLE | AMÉRICA 90 ELÉCTRICO Electrical connection Ovens with a three-pole power cord are designed to operate ac to the supply frequency and voltage indicated on the data plate (at the bottom of the furnace board). The ground conductor of the cable is the yellow-green conductor.
