Summary of Contents for Drija Europa 60
-
Page 2: Table Of Contents

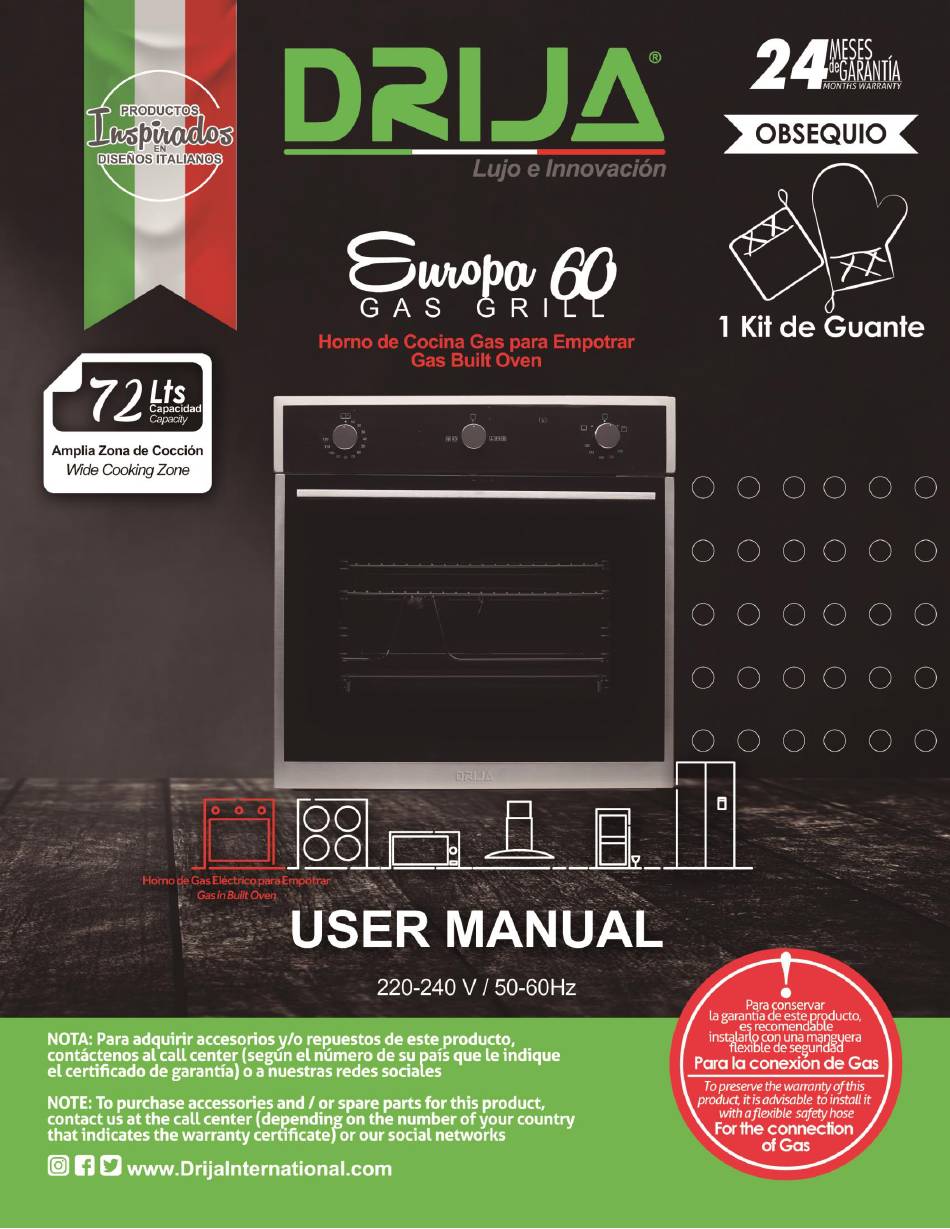

User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL SAFETY WARNINGS ........................2 HOW TO USE THE OVEN ......................3 INSTALLATION ..........................7 SPECIFICATIONS ........................13 CLEANING AND MAINTENANCE ....................14... -
Page 3: Safety Warnings
User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL 1. SAFETY WARNINGS Warning: a) The use of a gas cooking appliance produces heat and humidity in the room in which it is installed. Make sure the kitchen is well ventilated: keep the natural ventilation openings open or install a mechanical ventilation device (mechanical hood) b) During use, the appliances become hot. -
Page 4: How To Use The Oven
User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL 2. HOW TO USE THE OVEN The various features of this oven are controlled through the knobs and buttons located on the control panels. Notices: The first time you use your appliance, we recommend that you set the thermostat to the highest setting and leave the oven on for about half an hour with nothing inside, with the oven door closed. - Page 5 User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL Important notice: if the burner flame goes out accidentally, turn the control knob "B" to the off position, open the oven door and wait at least one minute before trying the burner again.
- Page 6 User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL Warning: the oven door gets hot during cooking. Please keep children well away. The grill indicator light This light comes on when the grill starts. Cooling ventilation To cool your outdoor temperature, some models are equipped with a cooling fan that turns on when the selector knob "B"...
- Page 7 User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL To set the timer, turn the knob fully clockwise until it stops and then turn it counterclockwise until the required time. The set period of time will expire when the control knob reaches zero, a brief audible signal will sound.
-
Page 8: Installation
User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL 3. INSTALLATION The appliance must be installed only by a qualified person in accordance with the instructions provided. The manufacturer declines all responsibility for improper installation that could harm people and animals and damage property. - Page 9 User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL by indirect means. that is, forming adjacent rooms equipped with air circulation tubes as described above. However, these rooms must be common rooms, bedrooms or rooms with fire risk (Fig. B)
- Page 10 User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL To ensure adequate ventilation, the back panel of the cabinet unit must be removed. Installing the oven so that it rests on two strips of wood is preferable. If the oven rests on a flat and continuous surface, there should be an opening of at least 45x560 mm.
- Page 11 User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL • Using a screwdriver, fix the side tabs on the terminal board cover; • Open the cover of the terminal board. To install the cable, proceed as follows: • Remove the wire clamp screw and the three L-N contact screws •...
- Page 12 User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL Check that the electrical capacity of the system and the plugs will support the maximum power of the device, as indicated on the data plate. If you have any questions, call a qualified technician.
- Page 13 User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL Take special care when delivering spark plug wires and thermocouple tubes Replace all parts, following the steps described above in reverse order Primary air regulation for the oven burner. b) The burner was designed to not need any adjustment to the primary air.
-
Page 14: Specifications
User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL 4. SPECIFICATIONS Technical specifications Internal dimensions of the oven: Width: 43.6 cm Depth: 41cm Height: 31.5cm Total dimensions for the oven volume: 56 liters A. Control panel B. Oven knob / gas grill D. -
Page 15: Cleaning And Maintenance
User Manual BUILT-IN OVEN | EUROPA 60 GAS GRILL 5. CLEANING AND MAINTENANCE OVEN CLEANING Never use metal abrasive pads, abrasive cleaning products or very rigid brushes. To clean the light cover, use only a household cleaning product, diluted with water, then rinse with clean water and dry with a soft cloth.
