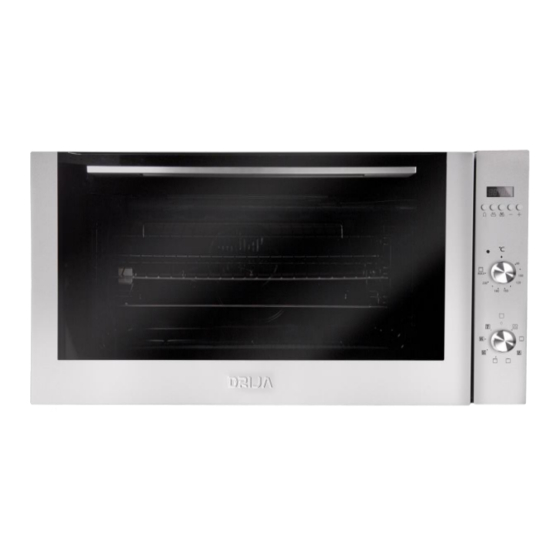

Drija america 90 User Manual

Voltage 220v-240v electric in built oven
Hide thumbs Also See for america 90:
Table of Contents

Advertisement

Quick Links

User Manual
AMÉRICA 90
ELÉCTRICO D
Voltage 220V-240V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the america 90 and is the answer not in the manual?

Questions and answers

Related Manuals for Drija america 90

Summary of Contents for Drija america 90

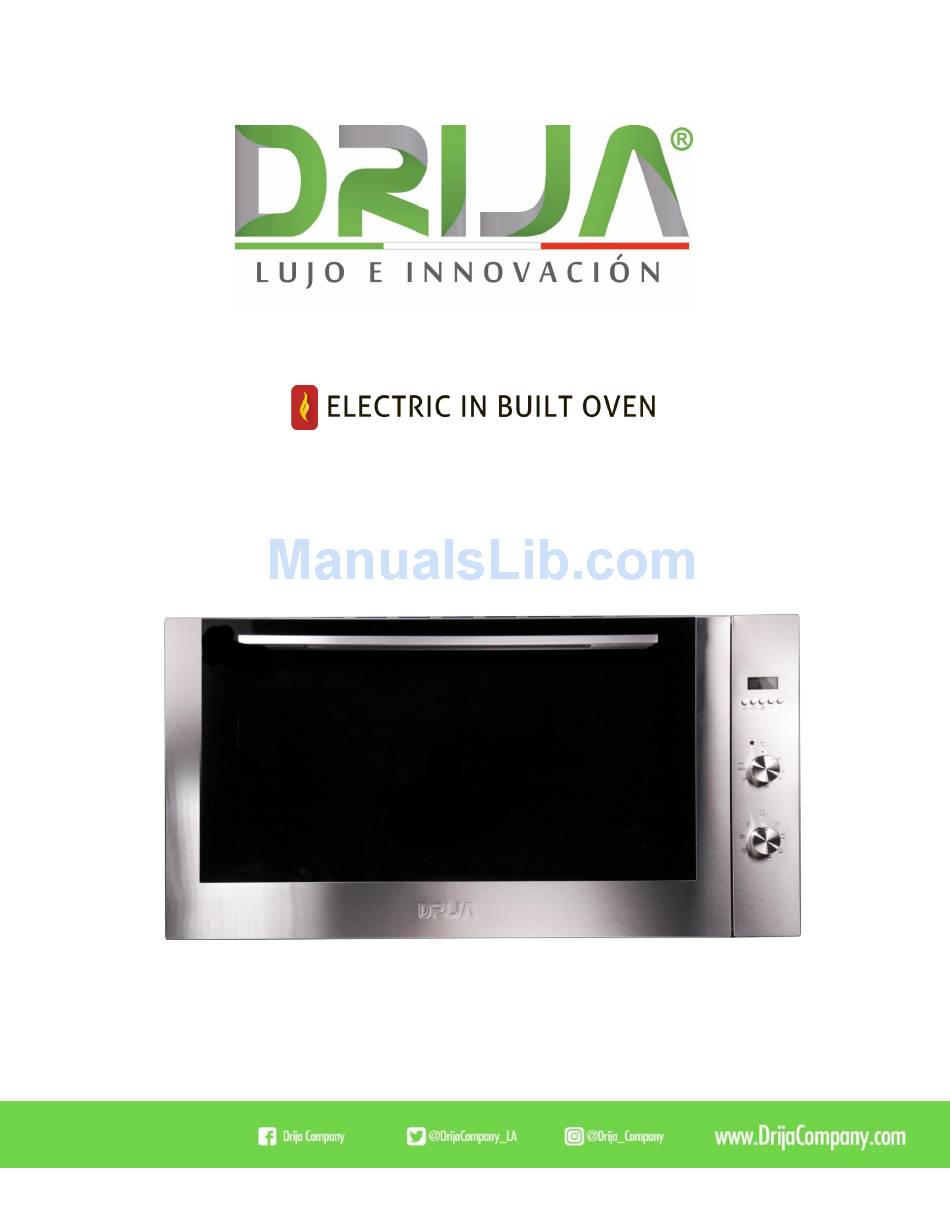

  • Page 1 User Manual AMÉRICA 90 ELÉCTRICO D Voltage 220V-240V...

  • Page 2: Table Of Contents

    User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D 1. INTRODUCTION ..................... 3 2. INSTRUCTION FOR USE ................6 3. OVEN VIEW ....................7 4. OVEN PROGRAMMING ................13 5. ¿HOW TO KEEP YOUR OVEN IN SHAPE? ..........15 6.

  • Page 3: Introduction

    User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D INTRODUCTION We recommend that you read this manual carefully before use for best performance and to extend the life of the device, as it will provide you with the necessary instructions to ensure installation, use and maintenance.
  • Page 4 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D kept away unless supervised. Make sure the appliance has been turned off when replacing the lamps to avoid possible electric shock. The following items are potentially dangerous, and appropriate measures should therefore be taken to prevent children and persons with disabilities from contacting them: ...
  • Page 5 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D • If the appliance breaks or malfunctions; Order original spare parts. It is a good idea if you meet the following: • Steam cleaner cannot be used to clean the oven. •...

  • Page 6: Instruction For Use

    User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D INSTRUCTION FOR USE Vista del mando de control 5-FUNCIONES 6-FUNCIONES 8-FUNCIONES 10-FUNCIONES 5-FUNCIONES 180 160 180 160 180 160 180 160 180 160 6-FUNCIONES 8-FUNCIONES 10-FUNCIONES 180 160 180 160 180 160...

  • Page 7: Oven View

    User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D OVEN VIEW A. Control Panel. B. Cooking Mode Selector Button. C. Cooking temperature selector button. D. Electrical programmer: Allows you to program the desired cooking time by selecting the duration as well as the completion. It can also be used as a watch (available only on some models).
  • Page 8 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D N. Advance button. O. Duration and manual mode. P. Automatic programming. Q. End of cooking time This multifunction oven combines the advantages of the traditional convection oven with those of the most modern fan models in a single appliance. It is a very versatile device that allows you to choose easily and safely between the different cooking modes.
  • Page 9 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D perfectly and efficiently distributes heat and reduces energy consumption. The convection oven is still unmatched when it comes to dishes such as cabbage with ribs, cod in the Spanish style; cod style Ancona, veal strips with rice, etc. Excellent results are achieved in the preparation of veal or meat dishes as well (stewed meats, stew, Hungarian stew, game animals, ham, etc.) that need to be cooked slowly or added liquid.
  • Page 10 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D can be obtained by cooking vegetable-based dishes such as curettes, aborigines, peppers, etc. Desserts: This mode is also perfect for baking yeast cakes. This mode can also be used to defrost the meat quickly either white or red as well as bread by adjusting the temperature to 80 ℃.
  • Page 11 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D Set the thermostat knob to "C": Between 60 ℃ and 200 ℃. The central part of the heat and the fan will light. This combination increases the efficiency of the heat element forces the circulation of air through the furnace.
  • Page 12 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D...

  • Page 13: Oven Programming

    User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D OVEN PROGRAMMING Final cooking time grill (I) (Available only on some models). This model is equipped with a timer to control when the oven is switched off during cooking. Timer knob position "I": between 10 minutes and 120 minutes. At the end of the programmed time, the controller will sound and automatically switch off the oven.
  • Page 14 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D Complete automatic operation Press the duration key (2) and set the time using the +/- keys (4 + 5). The symbol A will appear. The relay will turn on and display the pot symbol. Select the cooking end function (3) - the minimum cooking time will be displayed.

  • Page 15: How To Keep Your Oven In Shape

    User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D In order to cool the exterior of the appliance, this model is equipped with a cooling fan, which automatically activates when the oven is hot. When the fan is turned on, a normal flow of air is heard between the oven door and the control panel.

  • Page 16: How To Remove Oven Doors

    User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D ¿HOW TO REMOVE OVEN DOORS? For better cleaning, you can remove the oven door. Proceed as pictured: • Open the door completely. • Lift and rotate the lever on the two hinges. •...

  • Page 17: Replacing The Oven Lamp

    User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D REPLACING THE OVEN LAMP WARNING: Make sure the appliance is switched off when replacing the lamp to avoid possible electric shock. • Disconnect the oven from the power source using the omnipolar switch used to connect the appliance to the mains or unplug the appliance if it is accessible.
  • Page 18 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D • The oven is equipped with 4 grills. During the cooking fan assistance, use the two central grills; the grills at the top and bottom receive the hot air direct so delicate food could burn in these grills.
  • Page 19 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D does not mean that you cannot use lower temperatures. Simply by adjusting the thermostat knob to the desired temperature. Therefore the best results when using the grille modes are obtained by placing the grill in the lower racks (see cooking table), then, to prevent the grease from dripping on the bottom of the oven and the formation Of smoke, place a grease fitting on the 1 bottom grille.
  • Page 20 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D • When cooking pizza on two grids, use the second and fourth with a temperature of 220 ℃ and place the pizza in the oven after it has been preheated for at least 10 minutes.
  • Page 21 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D Weight Preheating Cooking time Position of cooking Thermostat Cooking Selector Food to cook (In kg) grids from the bottom (Minutes) Programming (Minutes) 1. Convention Duck 65-75 Veal and roast beef 70-75 Roasted pork 70-80...
  • Page 22 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D Cod fillet Grilled vegetables Veal Chop 10-15 Burger 15-20 Mackerels 15-20 Toasted sandwiches 7-10 With automatic rotisserie Veal on the grill 80-90 Chicken on the grill 70-80 Lamb on the grill 70-80 Grilled chicken 55-60...
  • Page 23 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D Puff cream sweets) 20-25 Cookies (on 3 grills 20-25 Meringues (on 3 grids) Frozen food Pizza Quick Caption Zucchini pie Spinach pie 30-35 Flipped Lasagna Gold rolls 25-30 Chicken 15-20 Pre-cooked food Chicken wings...

  • Page 24: Installation Instruction

    User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D INSTALLATION INSTRUCTION Only qualified personnel following the instructions provided may install the appliance. The appliance is assembled for normal operation. The manufacturer will not be responsible for improper installations that may cause injury to persons, animals or property damage.
  • Page 25 User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D Electric connection These furnaces are equipped with a three-pole power cord, designed to operate with alternating current. Ground wire is yellow - green. Connecting the power cord to the mains Install a standardized plug for the load indicated on the data plate.

  • Page 26: 10. Technical Specifications

    User Manual ELECTRIC IN BUILT OVEN | AMÉRICA 90 ELÉCTRICO D Before making the connection: • The electrical safety of the appliance can only be guaranteed if the oven is grounded correctly and efficiently in compliance with electrical safety regulations. Always ensure that grounding is efficient; if you have any questions call a qualified technician to check the system.
