User Manual
AMERICA 90
GAS
Voltage 110V-120V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMERICA 90 GAS and is the answer not in the manual?

Questions and answers

Related Manuals for Drija AMERICA 90 GAS

Summary of Contents for Drija AMERICA 90 GAS

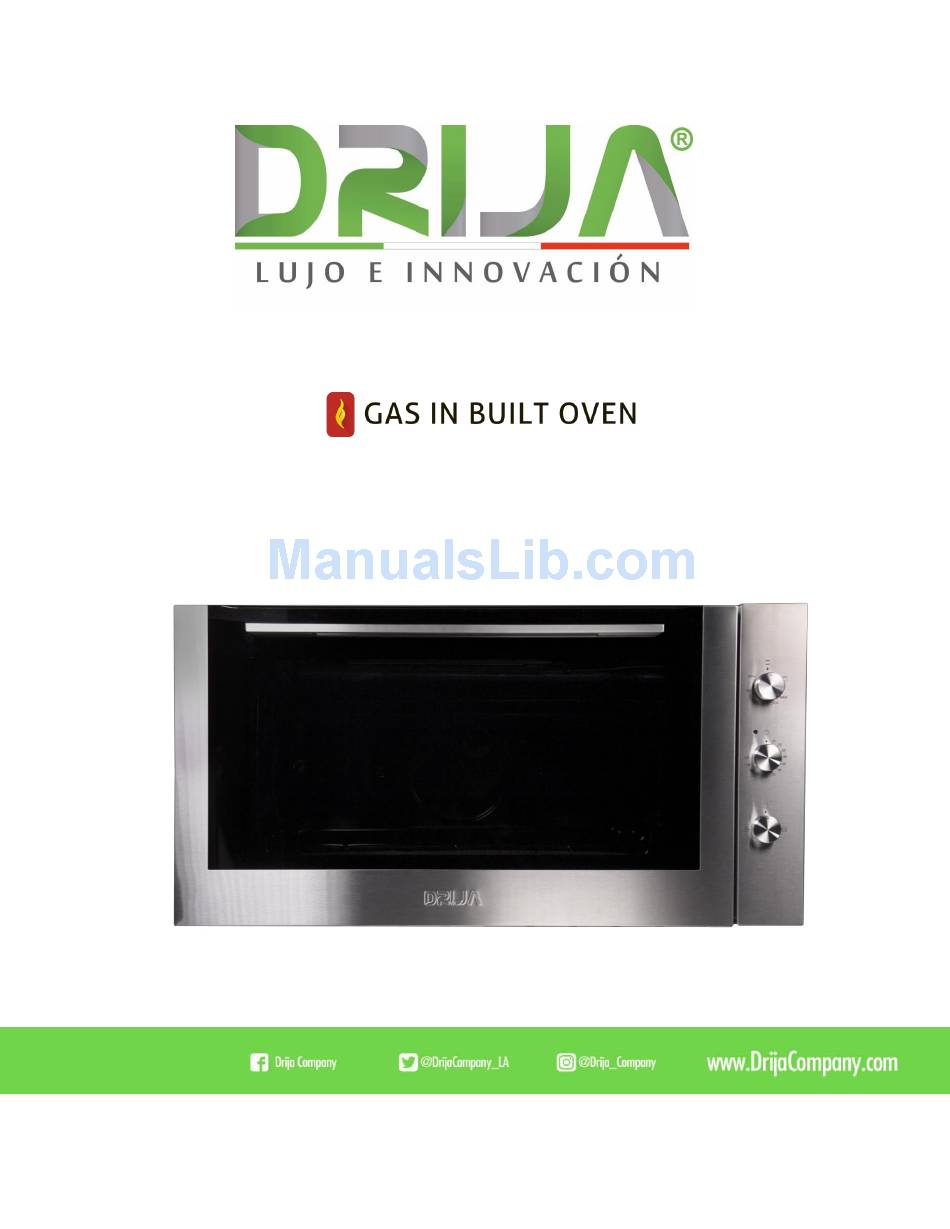

  • Page 1 User Manual AMERICA 90 Voltage 110V-120V...

  • Page 2: Table Of Contents

    User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS 1. PRECAUTIONS FOR USE ................3 2. INSTRUCTIONS FOR THE INSTALLATION ........... 6 3. ADAPT TO OTHER TYPES OF GAS .............. 9 4. TABLE OF BURNERS AND KNOBS: ............11 5.

  • Page 3: Precautions For Use

    User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS PRECAUTIONS FOR USE This manual is an integral part of the appliance. Take care of it and keep it handy throughout the oven's life cycle. We advise you to read this manual carefully before using the appliance. Keep the supplied nozzles in a safe place.
  • Page 4 User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS ENVIRONMENT - INSTRUCTION FOR ELIMINATION Disposal Instructions - Environmental Policies Our products are only packaged using non-polluting, environmentally friendly and recyclable materials. We urge you to cooperate by arranging the containers correctly.
  • Page 5 User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS • Immediately after installation, a brief test of the appliance must be carried out following the instructions given later in this manual. If the appliance does not work, disconnect from the mains and contact your nearest service center. •...

  • Page 6: Instructions For The Installation

    User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS INSTRUCTIONS FOR THE INSTALLATION  Appliance Installation  Installation must be carried out by a qualified engineer in accordance with current regulations.  Electric connection  The nameplate must not be removed. ...
  • Page 7 User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS • Air duct should be used in ventilation. Installation of built-in ovens In order to ensure proper operation of the appliance, the cabinet containing it must be appropriate. The figure below gives the dimensions for the area where it will be installed either under the counter or in a wall cabinet.
  • Page 8 User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS The panels of the adjacent cabinets must be of a heat resistant material. Laminated wood cabinets should be assembled with tails that withstand temperatures up to 100 ℃. In compliance with current safety regulations, contact with the electrical parts of the oven must not be possible once it has been installed.

  • Page 9: Adapt To Other Types Of Gas

    User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS Connection with steel tube: • Only use stainless steel hoses that comply with the relevant regulations, and always seal C properly fit between fitting A and hose E. When connecting with a hose, make sure that the length of the pipe is not more than 2 meters;...
  • Page 10 User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS  When using butane gas, the set screw should be turned fully clockwise. The diameter of the by-pass is indicated in point "5.2, Table of burner data and knobs".  When using natural gas, adjust the screw so that when the thermostat knob is turned from maximum to minimum, the flame will always remain stable and uniform.

  • Page 11: Table Of Burners And Knobs

    User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS TABLE OF BURNERS AND KNOBS: VOLTAGE / POWER: AC220-240V / 50-60Hz VOLTAGE / POWER: AC220-240V / 50-60Hz ELECTRICAL POWER: 2.5kW I3+(28-30/37) I3B/P(30) I3B/P(37) I3B/P(50) CATEGORY: □G30 □G31 □G30 □G30 □G30 TYPES OF GAS: PRESSURE...
  • Page 12 User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS (mbar): HOT: HIG. HIG. HIG. HIG. INPUT(Hs) BUNR.:2.0 kW BUNR.:2.0 Kw BUNR.:2.0 kW BUNR.:2.0 kW INF. INF. INF. INF. BUNR.:3.5 kW BUNR.:3.5 kW BUNR.:3.5 kW BUNR.:3.5 kW INJECTOR HIG. :1.05mm HIG.:1.05mm HIG.:1.05mm HIG.
  • Page 13 User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS Heat Capacity Burner nominal GAS NATURAL - G20 20 mbar (kW) Diameter of nozzles Reduction of heat capacity 1/100mm Oven 1200 Heat Elements Total heat input G30(30,37,50) G20, G25 Upper: Gas Burner 5.5kw 5.5kw Bottom: Gas burner...

  • Page 14: Description Of The Front Control Panel

    User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS DESCRIPTION OF THE FRONT CONTROL PANEL .All oven control and monitoring devices are placed together on the control panel. The following table provides the key symbols to use.
  • Page 15 User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS THERMOSTAT KNOB This knob turns the gas burner on inside the oven. Temperature Cooking time is programmed by turning the counter knob clockwise to the Desired value, between the minimum and the maximum. For instructions on turning on The gas furnace, refer to point "7.3 Use of the gas furnace.

  • Page 16: Using The Oven

    User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS USING THE OVEN Precautions and general advice When the oven and grill are used for the first time, it must be heated to the maximum temperature for a period long enough to burn any residue of oil left by the manufacturing process, which can contaminate the food with an unpleasant smell.
  • Page 17 User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS Manual ignition Completely open the oven door and turn the thermostat knob counterclockwise. Place a lighted match near the end of flame tube A in the center of the bottom of the oven and press the thermostat knob.
  • Page 18 User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS • Turn the plastic handle "D" counterclockwise and slide the grill into the oven guides, ensuring that the "E" grill enters the "F" hole. • The roasting rack must always be provided in the center of the oven (second position from the bottom).

  • Page 19: Cleaning And Maintenance

    User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS CLEANING AND MAINTENANCE Before carrying out any operation, disconnect the appliance from the power source. Never use a steam machine to clean the inside of the oven. Cleaning stainless steel To keep the stainless steel in good condition, it should be cleaned regularly, every time the oven is used and after it has cooled down.

  • Page 20: Extraordinary Maintenance

    User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS EXTRAORDINARY MAINTENANCE Occasionally, the furnace will require less service for the replacement of parts subject to use or breakage, such as gaskets, light bulbs, etc. Specific instructions for each procedure are provided below. Before carrying out any operation involving access to the electrical parts, disconnect the device from the power source.

  • Page 21: Technical Specifications

    User Manual GAS IN BUILT OVEN | AMÉRICA 90 GAS Remove gasket To allow proper cleaning of the oven, the door gasket can be removed. Before removing the gasket, remove the oven door as described above. Once the door has been removed, lift the tabs at the corners as shown in the figure.
