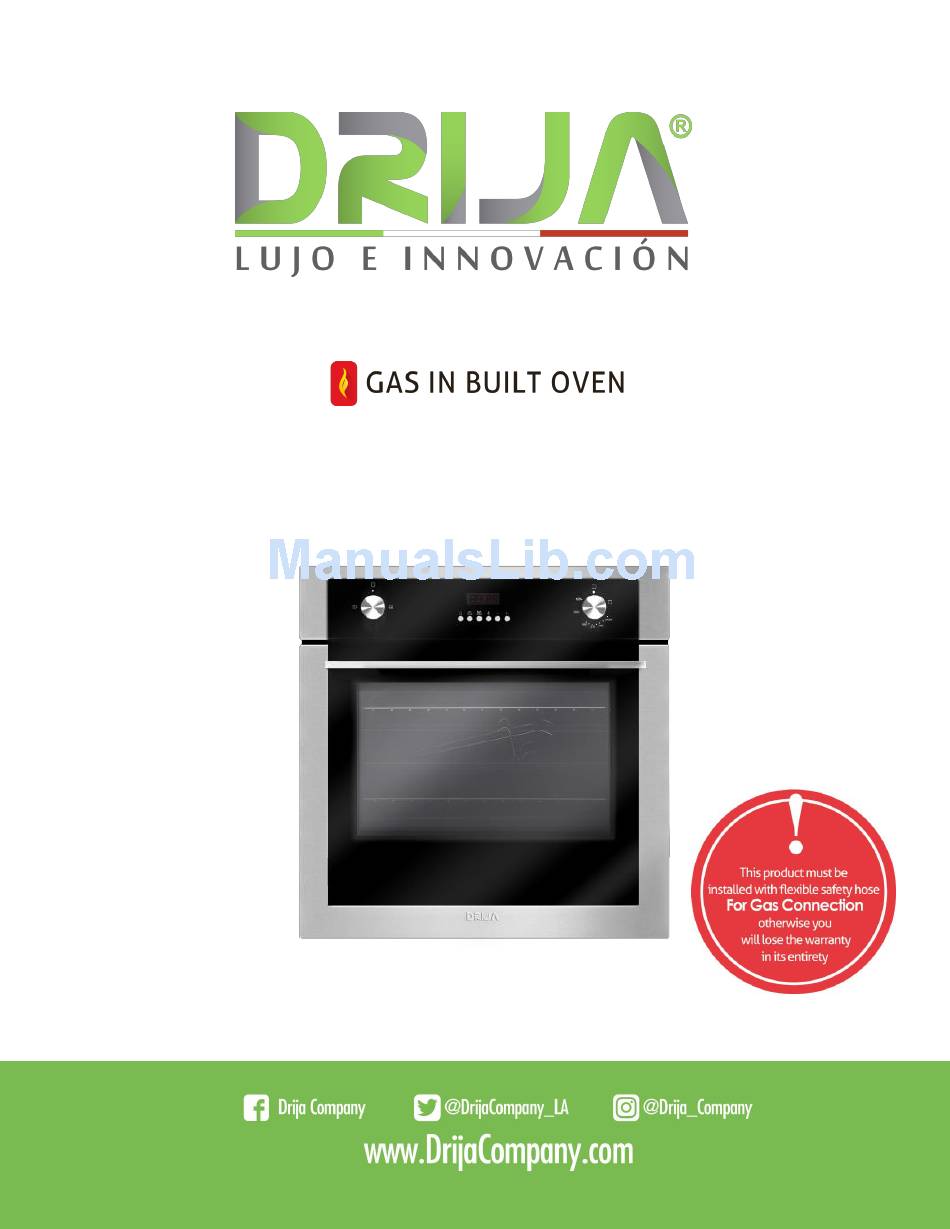

- Page 1 User Manual EUROPA 60 Voltage 110-120V/60Hz...
-
Page 2: Table Of Contents
User Manual GAS IN BUILT OVEN | EUROPA 60 GAS 1. PRECAUTIONS FOR USE ................3 2. ENVIRONMENT- INSTRUCTION FOR ELIMINATION........4 3. SAFETY PRECAUTIONS ................5 4. INSTRUCTIONS FOR THE INSTALLATION ........... 6 5. BURNER AND KNOB DATA TABLE............. 12 6. -
Page 3: Precautions For Use
User Manual GAS IN BUILT OVEN | EUROPA 60 GAS PRECAUTIONS FOR USE THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR USE OTHER THAN THE INDICATED. • Never use this appliance to heat spaces. • Never use packaging waste at home. Separate the different packages by type and assign them to the nearest recycling center. -
Page 4: Environment-Instructionfor Elimination
User Manual GAS IN BUILT OVEN | EUROPA 60 GAS ENVIRONMENT-INSTRUCTIONFOR ELIMINATION. Disposal Instructions - Environmental Policies Our products are only packaged using non-polluting, environmentally friendly and recyclable materials. We urge you to cooperate by arranging the containers correctly. Contact your local distributor or local competent organizations for information on collection, recycling and disposal centers. -
Page 5: Safety Precautions
User Manual GAS IN BUILT OVEN | EUROPA 60 GAS SAFETY PRECAUTIONS Safety precautions • See installation instructions for safety regulations for electrical or gas appliances and for ventilation functions. • For your interest and safety, all electrical equipment must be installed and serviced by qualified personnel in accordance with current regulations. -
Page 6: Instructions For The Installation
User Manual GAS IN BUILT OVEN | EUROPA 60 GAS INSTRUCTIONS FOR THE INSTALLATION Appliance Installation The installation must be carried out by a qualified engineer in accordance with the regulations in force. Electric connection The nameplate must not be removed. - Page 7 User Manual GAS IN BUILT OVEN | EUROPA 60 GAS Important: The power source must be disconnected from the unit when it is adjusted or maintained. Air duct should be used in ventilation. Plywood cabinets should be assembled with tails that withstand temperatures up to 100 ℃.
- Page 8 User Manual GAS IN BUILT OVEN | EUROPA 60 GAS Never use the door as a lever to insert the oven into the cabinet. Never apply too much pressure on the open door.
- Page 9 User Manual GAS IN BUILT OVEN | EUROPA 60 GAS Ventilation The appliance may only be installed in a permanently ventilated room as specified in the regulations. The air flow in the room where the appliance is installed should be sufficient for proper gas combustion and ventilation of the area.
- Page 10 User Manual GAS IN BUILT OVEN | EUROPA 60 GAS The apparatus was tested with G20 (2H) natural gas at a pressure of 20mbar. If it will be used with another type of gas, its nozzle must be changed and the gas valve adjusted.
- Page 11 User Manual GAS IN BUILT OVEN | EUROPA 60 GAS Adjusting the oven burner primary air flow • Unscrew the adjusting screw "A" from the air regulator cover. • Turn the regulator cover "B" to the position of the type of gas to be used, see table below.
-
Page 12: Burner And Knob Data Table
User Manual GAS IN BUILT OVEN | EUROPA 60 GAS BURNER AND KNOB DATA TABLE. I3+(28-30/37) I3B/P(30) I3B/P(37) I3B/P(50) CATEGORY: □G30 □G31 □G30 □G30 □G30 TYPES GAS: PRESSURE （mbar）: HEAT burner: burner: burner: burner: INPUT(Hs) 1.7kW(124g/h) 1.7kW(124g/h) 1.7kW(124g/h) 1.5kW(109g/h) Bottom burner:... -
Page 13: Description Of The Front Panel
User Manual GAS IN BUILT OVEN | EUROPA 60 GAS DESCRIPTION OF THE FRONT PANEL. THERMOSTAT KNOB This knob turns the gas burner on inside the oven. The cooking temperature is programmed by turning the knob counterclockwise to the desired value, between minimum and maximum. - Page 14 User Manual GAS IN BUILT OVEN | EUROPA 60 GAS FUNCTION OF THE SELECTION KNOBS The symbol turns on the light inside the oven during normal operation (without the timer). The symbol turns the rotisserie light and spinner into the oven during normal operation.
- Page 15 User Manual GAS IN BUILT OVEN | EUROPA 60 GAS Digital clock: Programmed time (0: 00-24: 00) and minutes. The display shows 3 bright numbers and "AUTO" when lit. To set the correct time, press the first button , then + or - to advance or rewind until the exact time appears.
-
Page 16: Oven Use
User Manual GAS IN BUILT OVEN | EUROPA 60 GAS Alarm, press the button Note: After pressing the corresponding button, the configuration should be completed in about 5 seconds. In case of power failure, the configuration process as well as the real time (hours, minutes) will disappear. Once the current returns, three "0"... - Page 17 User Manual GAS IN BUILT OVEN | EUROPA 60 GAS 231 °. If the burner is accidentally turned off, turn the knob to the off position ( ) and wait at least one minute before attempting to turn it on again.
-
Page 18: Cleaning And Maintenance
User Manual GAS IN BUILT OVEN | EUROPA 60 GAS CLEANING AND MAINTENANCE Before carrying out any operation, disconnect the unit from the power supply. Never use a steam machine to clean the inside of the oven. Cleaning stainless steel To keep the stainless steel in good condition, it must be cleaned regularly, every time the oven is used and after it has cooled. - Page 19 User Manual GAS IN BUILT OVEN | EUROPA 60 GAS Oven Lamp Replacement Disconnect the oven from the power source using the omnipolar switch used to connect the appliance to the mains or unplug the appliance if it is accessible.
-
Page 20: Technical Specifications
User Manual GAS IN BUILT OVEN | EUROPA 60 GAS TECHNICAL SPECIFICATIONS Oven internal dimension: • Width 43.5cm • Depth 40cm • Height 32cm Internal oven volume: • 70 liters Voltage and Frequency of Power Supply: • 110-120V ~ 50 / 60Hz or 50Hz.
