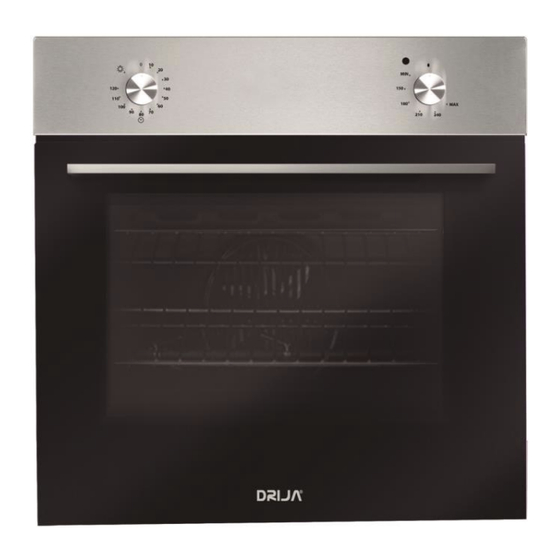

Gas in built oven
Hide thumbs Also See for Oceania 60:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oceania 60 and is the answer not in the manual?

Questions and answers

Related Manuals for Drija Oceania 60

Summary of Contents for Drija Oceania 60

  • Page 2: Table Of Contents

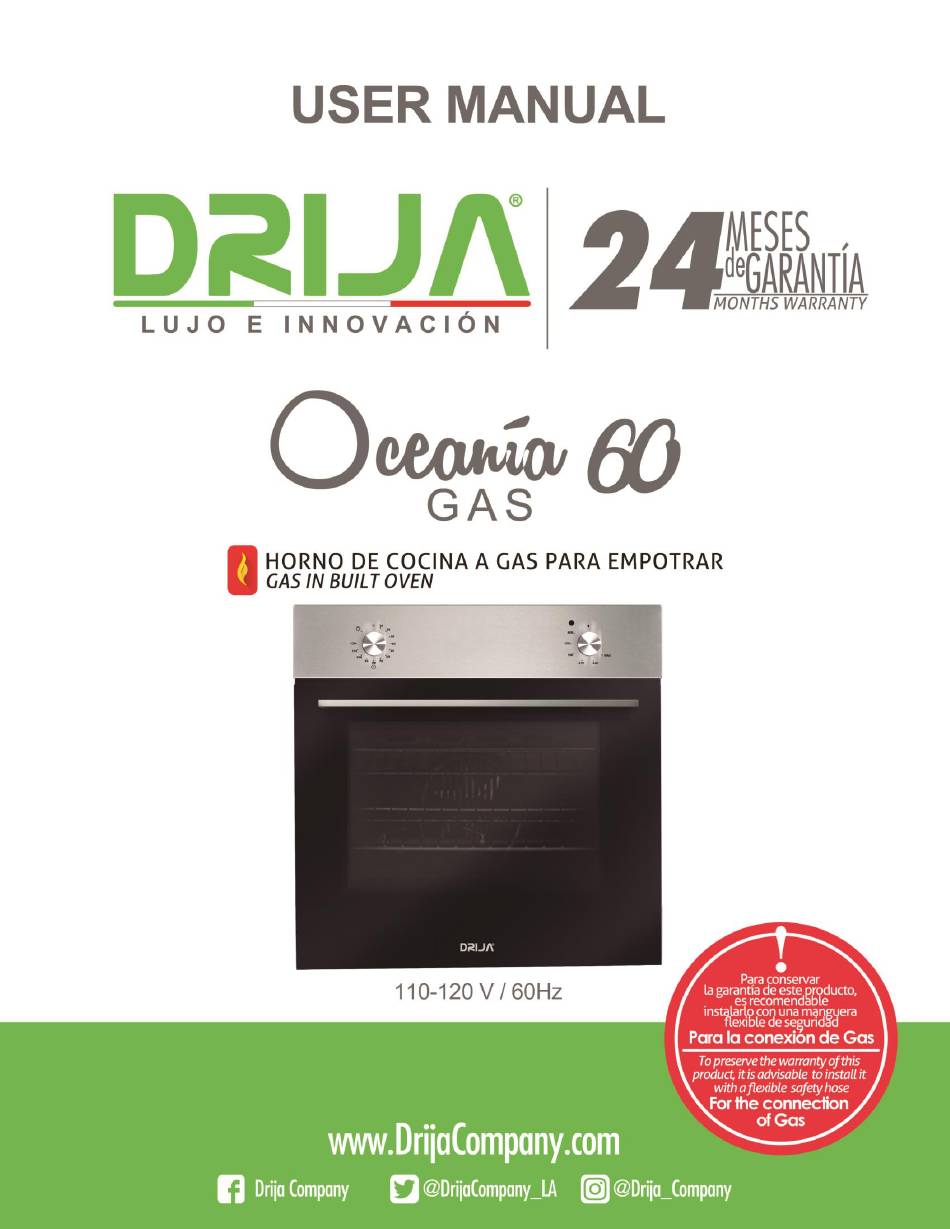

    User Manual HORNO A GAS | OCEANÍA 60 1. PRECAUTIONS FOR USE ................3 2. DISPOSAL INSTRUCTIONS – ENVIRONMENT POLICY ......4 3. SAFETY PRECAUTIONS ................4 4. INSTALLATION INSTRUCTIONS ..............5 5. ADAPTATION OF DIFFERENT TYPES OF GAS ........... 9 6.

  • Page 3: Precautions For Use

    User Manual HORNO A GAS | OCEANÍA 60 PRECAUTIONS FOR USE This manual is an integral part of the appliance, be careful of it and keep a hand through the whole life cycle of the oven.  We ask for a reading in this manual and all the information that contains a few times before using the device.

  • Page 4: Disposal Instructions - Environment Policy

    User Manual HORNO A GAS | OCEANÍA 60  Use ordinary non-abrasive products with the help of wooden or plastic utensils if necessary.  Rinse thoroughly and dry with a soft cloth or chamois leather.  Do not allow food spills with high sugar content to dry inside the oven. ...

  • Page 5: Installation Instructions

    User Manual HORNO A GAS | OCEANÍA 60  Gas or electrical appliances should always be disconnected by persons with adequate capacities.  The plug to connect to the power supply cable and the relative plug must be of the same type and comply with the relevant regulations. ...
  • Page 6 User Manual HORNO A GAS | OCEANÍA 60 If a socket and plug connection is used, verify that they are of the same type. Do not use reducers, adapters or joints, as they can cause overheating or burns. Si se utiliza una conexión permanente, la línea de alimentación eléctrica del dispositivo debe estar equipada con un dispositivo de rotura omnipolar con un espacio de contacto de al menos 3 mm, ubicado en una posición de fácil acceso cerca del propio dispositivo.
  • Page 7 User Manual HORNO A GAS | OCEANÍA 60 When installing under countertops, comply with the dimensions shown in figure 1-3. When installing under countertops that incorporate countertops, a gap of at least 110 mm must be left from any side wall, as shown in figure 1. When installed in tall units, comply with the dimensions shown in Figure 1-2 , taking into account that the upper / rear part of the unit must have an opening of 45 mm in depth.
  • Page 8 User Manual HORNO A GAS | OCEANÍA 60  Never use the door to leverage when inserting the oven in the cabinet.  Never apply excessive pressure on the open door. Ventilation of the room The device can only be installed in a room with permanent ventilation as specified by the relevant regulations.

  • Page 9: Adaptation Of Different Types Of Gas

    User Manual HORNO A GAS | OCEANÍA 60 relevant regulations) and located so that they can not be obstructed, even partially. The kitchen must be adequately ventilated to disperse the heat and humidity produced by the cooking processes: in particular, a window must be opened or the fans' speed increased after prolonged use.
  • Page 10 User Manual HORNO A GAS | OCEANÍA 60 Adjusting the oven burner: To adjust the oven burner, open the oven door and proceed as follows:  Remove all accessories (pans, shelves and any steel runners);  Lift the bottom plate of the oven and remove it so that the inside of the oven is as shown in the image.
  • Page 11 User Manual HORNO A GAS | OCEANÍA 60 Changing the nozzle  Loosen the oven burner fixing screws A.  Move burner B outwards until the nozzle is accessible.  Use a 7-socket wrench to change the nozzle, matching the type of gas to be used (see "5.2 Burner and nozzle data tables").
  • Page 12 User Manual HORNO A GAS | OCEANÍA 60 HEAT Bottom burner: Bottom burner: Bottom burner: Bottom burner: INPUT (HS): 2.5kW (182g / h) 2.5kW (182g / h) 2.5kW (182g / h) 2.5kW (182g / h) INJECTOR SIZE: Bottom: 0.77mm Bottom: 0.77mm Bottom: 0.77mm Bottom: 0.77mm CATEGORY OF I2E+...

  • Page 13: Descr Iption Of The Control Panel

    User Manual HORNO A GAS | OCEANÍA 60 Rated heat BURNER BOTTLED GAS - G30/G31 28/37 mbar capacity (kw) NOZZLE RATED FLOW- FLOW- DIAMETER PASS HEAT RATE RATE CAPACITY 1/100 mm 1/100 g/h G30 g/h G31 OVEN Rated heat BURNER BOTTLED GAS - G20 20 mbar capacity (kw)

  • Page 14: Using The Oven

    User Manual HORNO A GAS | OCEANÍA 60 between min. and max. For instructions on how to start the gas oven, refer to point Timer control (only in some cases): To use the timer, set the buzzer by turning knob clockwise.

  • Page 15: Cleaning And Maintenance

    User Manual HORNO A GAS | OCEANÍA 60 If the burner does not ignite after 15 seconds, stop trying, leave the oven door open and wait 1 minute before trying again. Burning the burner by hand: open the oven door completely and turn the thermostat knob anticlockwise.

  • Page 16: Extraordinary Maintenance

    User Manual HORNO A GAS | OCEANÍA 60  Do not allow food spills with a high sugar content (for example, jam) to dry in the oven. If they dry too long, they could damage the enamel coating inside the oven. Cleaning the oven ...

  • Page 17: 10. Tecnical Specifications

    User Manual HORNO A GAS | OCEANÍA 60 For a deeper cleaning, you can remove the oven door. Proceed as follows:  Open the door completely;  Lift and rotate the small levers located on the two hinges;  Hold the door on both external sides, close it slowly but not completely; ...
