- Page 1 GPS Tracker Model： R11 User Manual...
- Page 2 Statement Thank you very much for using the R11 vehicle terminal (mobile user terminal) product. Please read this manual carefully before use. Please pay attention to all the cautions and warnings mentioned in the manual. Please keep this manual properly for reference.
-
Page 3: Table Of Contents
Content 1. Product Description ----------------------------------- 3 2. Product Features --------------------------------------- 3 3. Specifications ------------------------------------------- 4 4. Appearance ---------------------------------------------- 5 5. Installation Instrusctions ----------------------------- 6 6. Setting Command Instructions----------------------- 9 7. Installation diagram-----------------------------------11 8. Troubleshooting---------------------------------------11... -
Page 4: Product Description

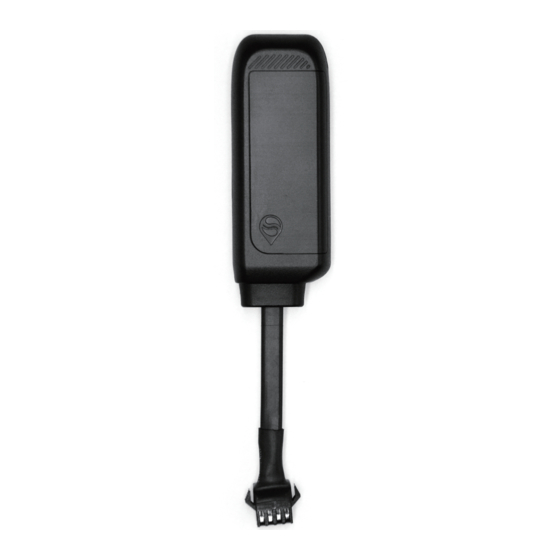

1.Product Description The R11 is a multifunctional GPS tracker with a wide range of applications. Adopts MTK6261 chip and supports GPS, COMPASS, GLONASS satellite systems. In addition to supporting satellite positioning, equipment also supports single-base and multi-base station positioning. Rich extended functions, please refer to the following descriptions about extended functions. - Page 5 ● Built-in high-power surge protection circuit; ● Adopt high temperature resistant, safe and explosion-proof rechargeable lithium cobalt oxide battery; ● Built-in high-power surge protection circuit; ● Built-in hardware monitoring circuit, automatic recovery of abnormal state; ● Support remote oil circuit control; ●...
-
Page 6: Specifications
3. Specification Items Specifications Remark Working Voltage DC9V-90V 25ma @12V Working Current Not charging (Quiescent current 10mA) Dimension L80mm *W28mm*H14mm Positioning mode GPS+LBS+WIFI(Optional) Positioning error <10 Meters communication GPRS network GSM frequency 850/900/1800/1900MHz Communication Temperature -25℃~ +75℃ range Storage -40℃ ~ +85℃ temperature range Backup battery 0.5h... -
Page 7: Appearance
4. Appearance By checking the status indicator, you can understand the working condition of the device. The status of the indicator is described as follows:... -
Page 8: Installation Instrusctions
LED Status Description Color Fast flash GSM starting Slow flash GPS receive signal is normal light GPRS online Drak No GSM signal/card/still sleep Fast flash GPS signal searching Blue Light GPS position Dark GPS sleep/not working 5.Installation instructions 5.1. Wiring Line No. - Page 9 Precautions for Relay Wiring Pump relay wiring: the oil connectors at both ends are thin white wire (85) and thin yellow wire (86). The thin white wire (85) is connected to the vehicle's positive power supply (+12V). The thin yellow wire is connected to the device relay control wire.
- Page 10 6.Description of command Instructions 6.1.Oneline Setting Command List SERVER,1,<domain>,<port># Please move to the E.g.:SERVER,1,gps. network service whatsgps.com,6801,0# provider service area APN,<use_apn># Set APN E.g.:APN,internet# T:The range of T is 5-900 second The default reporting TIMER,T# interval is T second after setting 6.2.
- Page 11 6.3.Alarm mode setting and description 6. Installation Instruction A=ON/OFF, turn on or turn off the alarm, the default is off Vibration SENALM,A M=0/1/2, alarm mode, 0: alarm GPRS only; 1: SMS+GPRS; 2: GPRS+SMS+PHONE A=ON/OFF, turn on or turn off the alarm, the default is off...
- Page 12 A=ON/OFF, turn on or turn off the alarm, the default is off Over speed SPEED,A, B=1-255 (Km/h), the alarm B,M# overspeed threshold, the default is 100 (Km/h) M=0/1/2, alarm mode, 0: GPRS only; 1: SMS+GPRS; 3: GPRS+SMS+PHONE 6.4.SOS and Center Number Setting The SOS number can be set to 1-3 numbers.
-
Page 13: Installation Diagram
7.Installation diagram... -
Page 14: Troubleshooting
8.Trouble shooting When operating the terminal, if you feel that the equipment is abnormal, please refer to the following problems and solutions. If the problem still cannot be solved, please contact the seller or service provider. Common Reason Solution Problem When using the terminal in areas with poor signal... - Page 15 Common Reason Solution Problem Unable to Please move to a connect to Weak signal place with strong signal and try again the network Please confirm Turn on the device whether the device battery switch is switched on Please check if the SIM卡Please install Switch off...
- Page 16 Warranty card Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person...
- Page 17 FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Need help?
Do you have a question about the R11 and is the answer not in the manual?
Questions and answers
Iwant of R11 in the platfom of whatsgps

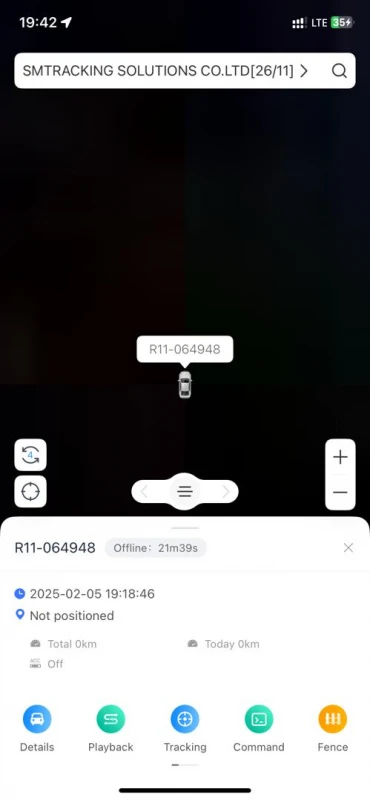

The R11 GPS tracker can be accessed on the WhatsGPS platform for real-time monitoring. This platform provides insights for fleet managers, allowing them to track vehicles, receive alerts, and manage security features such as remote engine and oil cut-off. To access the R11 on WhatsGPS, you likely need to log in to the platform and connect the device using its unique identification details.
