Summary of Contents for WhatsGPS S709

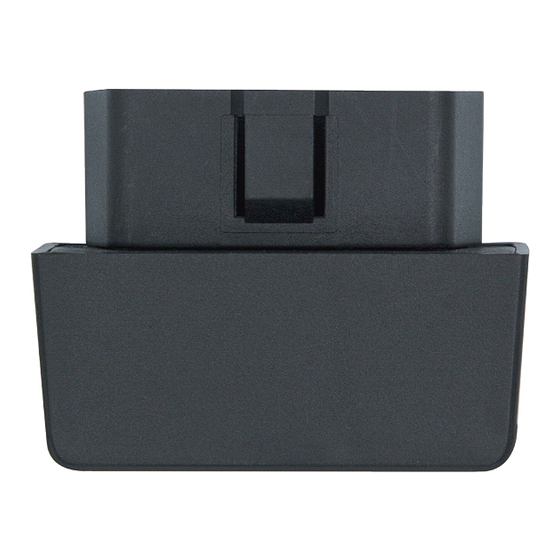

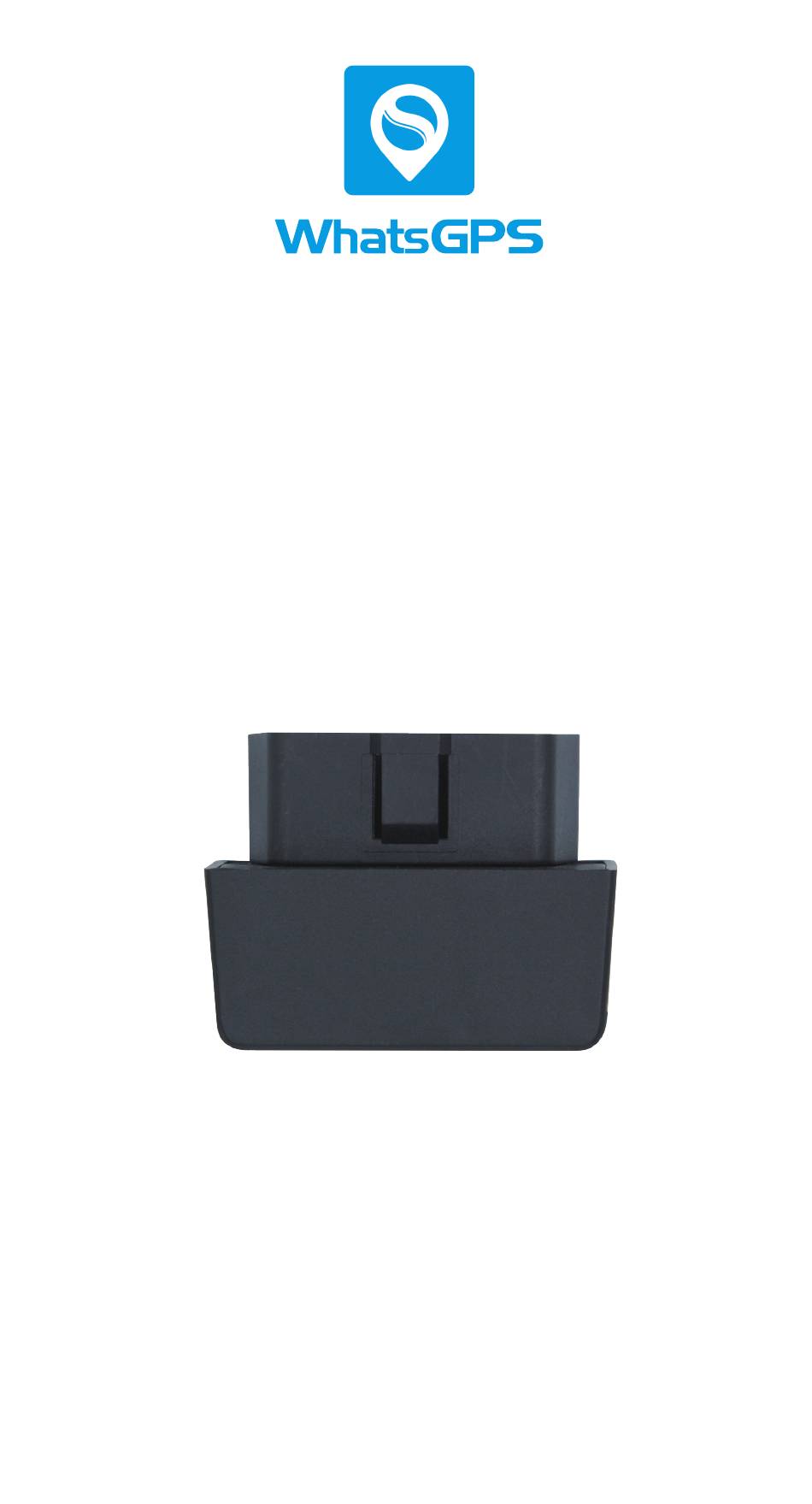

- Page 1 2G Vehicle GPS Tracker Model:S709 User Manual...
-
Page 2: Appearance Diagram
Appearance diagram Installation method of SIM card Preparation before installation Product inspection: open the package to check whether the device model is correct and whether the accessories are complete. Otherwise, please contact your distributor SIM card selection: the device needs to insert a GSM band SIM card. - Page 3 At this time, the external 9-36v power supply can be connected Note: the terminal GSM card needs to open the GPRS function, and ensure that the terminal GSM card has the tariff; If your GSM is enabled and requires PIN code input, please refer to your mobile phone user manual to turn off the PIN code input function.
- Page 4 disconnect the external power first and then insert the SIM card. When the device is started, the indicator light will turn on. When the external power connection +GPS positioning +GSM is normal, the indicator light will always be on. When the GPS +GSM is normal, but the external power is not connected, the indicator light flashes quickly;...
-
Page 5: User Instruction
2. SERVER command Para Example SERVER,8520, SERVER SERVER,password, www.whatsgps.com, domain,port # para 6801,0# This function is to change server Settings, need to modify the server IP domain and port. Instructions Port range: 10~65535; Password: fixed number, please contact the dealer... - Page 6 Instruction Successful return: set the IP successfully! returning 3. APN command Para Example Command APN, apn[account 1:APN,intenet,123,123# number, password]# 2:APN,cmnet# The APN instruction is used to configure the Internet access parameters of different countries' operators. Please check the APN Instructions parameters of the card by yourself.
- Page 7 Instruction Successful return: set the upload time successfully! returning 5. Positioning location Para Example English POSITION# POSITION# The command is used to query the current Instructions location description. Instruction Successful return: If the language is English, returning the message will return a link! 6.
- Page 8 Instruction Successful return: vibration alarm successfully! returning 8. Monitoring setting Para Example 1) LISTEN,1# Command LISTEN,0/1# 2) LISTEN,0# This instruction is used to set the listening range, 0~1, the listening function is off by default; If need to open, according to example 1 send instructions, if need to close, according Instructions to example 2 send instructions;...
- Page 9 10. Status command Para Example Command STATUS# STATUS# This instruction is used to query the current Instructions working state of the device BATTERY:100% -- BATTERY status GSM Signal:HIGH--GSM Signal strength Instruction GPS:FIXED-- FIXED by GPS returning GPS Signal:HIGH--GPS Signal strength CHARGER:NORMAL -- in the charged state The comma in the instruction must be an English comma;...
-
Page 10: Troubleshooting
Recording function description If you need the recording function (send instructions for the device to record a short speech and upload it to the service platform, generally about 10 seconds), please contact the dealer to customize this function. Switch and power off alarm instructions This equipment is equipped with a backup battery, but there is no switch to control the enabling of the... - Page 11 determine the status of the terminal. If there is no connection, the prompt terminal cannot be connected temporarily or is not in the service area. The area where the terminal is located may not cover the GSM signal or the signal is weak in the basement. Please drive to the area where there is a signal to use.
- Page 12 is insufficient or the machine is stopped. First of all, check the LEDs’ status. If it is not convenient to check that, please check the SIM card status : 1)Call the SIM card number of the device to check whether you can get through; 2)Check whether the vehicle is in no GSM area, such as basement;...
-
Page 13: After-Sales Service
After-sales service 1. The products are subject to technical changes without prior notice Please refer to the material object for appearance and color 3. The warranty card is applicable to IMEI products specified in the following table 4. Please keep the card and receipt for after-sales service 5. -
Page 14: Warranty Card
Warranty card Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person...
