Summary of Contents for WhatsGPS S102

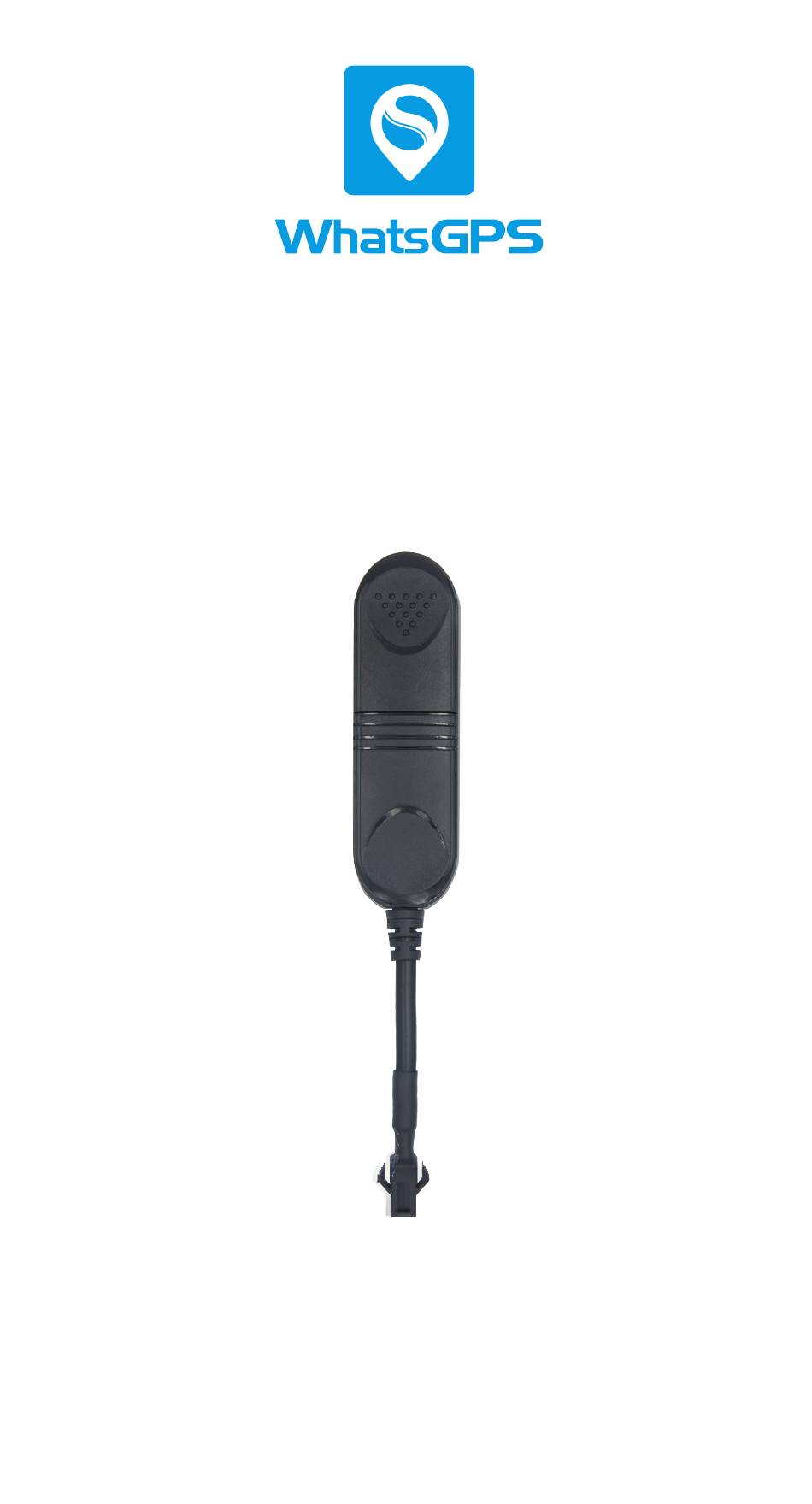

- Page 1 2G Vehicle GPS Tracker Model:S102 User Manual...

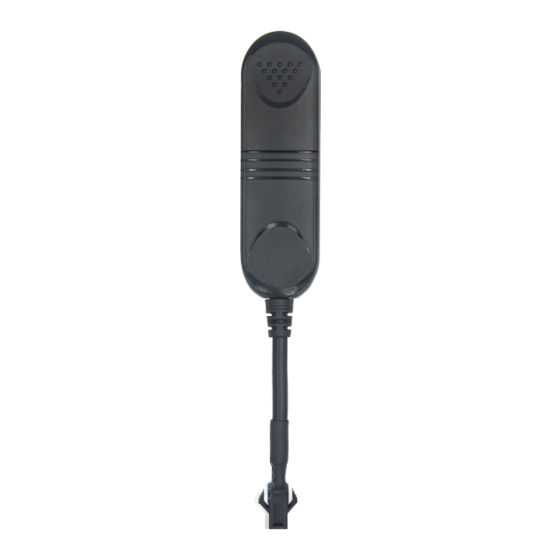

- Page 2 Chapter 1 Product Composition and Interface Definition 1. Product Overview Product Name: GPS vehicle tracker Product Model: S102 Product Size: L78.5mm*W23mm*H12mm 2. The Schematic Of Product...
- Page 3 3. The Product Configuration List Name Quantity Unit Remark Km-02 Host Unit User Manual; Warranty Card; Unit 3-In-1 Certificate Of Approval Package Box Unit Power Cable Unit Note: The Above Is a List Of Standard Configurations For The Entire Set Of Products,And Accessories Outside The Above Range Are Subject To Additional Fees.
- Page 4 5. Definition Of Product Indicator Fast Flash: GSM In The Initialization Slow Flash: GSM Signals Is Normal GSM (Red) Long Bright: GPRS On Line Not Light: Not Yet Received Indicator The GSM Signal/Not Insert Sim Card/GSM Dormancy Fast Flash: GPS Signal In、 The Search Long Bright: GPS Has Been GPS(Yellow)
- Page 5 Communication GPRS Network Gsm Frequency 850/900/1800/1900MHz Communication Working -25℃~ +75℃ Temperature Storage -40℃ ~ +85℃ Temperature Standby Battery 0.5 Hours 1 Year Warranty 2. Function List Of The Device Functions Function Details Description Upload The Longitude And Location Data Real-Time Latitude Information According Report Tracking...
- Page 6 The Power Down Alarm And Light Sensor Alarm Triggered Illegal Dismantling Of The Device In 2 Minutes, Then The Illegal Dismantling Alarm Alarm Will Be Reported To The Server The Data Is Stored Up To 300pcs If The Terminal Is Blind Area Other Located And Not Online,...
- Page 7 Install the SIM card Open the bottom cover of the device and insert the SIM card into the card holder. Do not use excessive force to damage the card holder. Do not insert or remove the SIM card while the device is power on. Make sure the SIM card has Internet access.
- Page 8 B.Wires should be concealed; C.Please make sure the GPS antenna is connected to the right connector and fixed tightening to avoid vibrated. SMS Command for Online Tracking Setup Exactly format: Set IP Online: <SPBSJ*P:BSJGPS*T:120.025.232.237,7788*A:CMN ET*N:IMEI number*C:0030> Set The Domain Name Online: <SPBSJ*P:BSJGPS*Q:s3.gps18.com:7700*A:CMNE T*N:IMEI number>...
- Page 9 Chapter III Analysis of Common Problems and After-sales Service 1. Analysis Of Common Problems Problem Reason Solution Recharge Money Sim Card No Money Sim Card Connect Please Install Sim Card Again Good Or Not Reset Parameters With Online Parameter Center Monitor Correct Format According Setting Error Cannot...
- Page 10 Working temperature is -25to 75centigrade, Please cut off power if the temperature is over this range. When vehicle is in underground parks, tunnels or garage, maybe GPS signal will not very good. Communication network blind area will be caused and cannot monitor vehicle.
- Page 11 maintenance material cost fee will be charged. Free to provide customers with product purchase, use, installation and other consulting and technical services.
- Page 12 Warranty card Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person...
