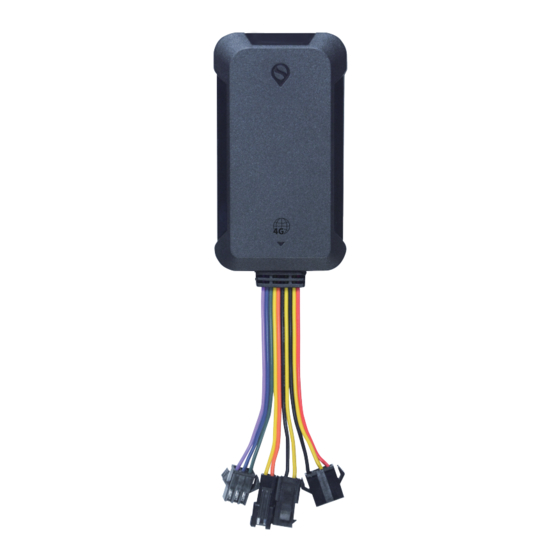

- Page 1 4G GPS Vehicle Tracker User Manual...
-
Page 2: Product Introduction
Product Introduction This user manual has been specially designed to guide you through the functions and features of your GPS vehicle tracker. Start Guide 1.1 Accessories ◆ Main device ◆ Power cord ◆ Relay line, 4-pin relay ◆ SOS cable ◆Fuel cable ◆... - Page 3 ◆ Vibration alarm ◆ Movement alarm ◆ External power supply cut-off alarm ◆ Over-the Air (OTA) ◆ Low battery alert 1.3 Specifications Frequency : FDD B1/B2/B3/B4/B5/B7/B8/B28 TDD B40 WCDMA 850/900/1900/2100MHz GSM 850/900/1800/1900MHz Networks WCDMA /EDGE/GPRS Location Time Operating Voltage 9-36VDC<300mA Cold Start: ＜35s Hot Start：＜2s Location Accuracy :<10 meters...
-
Page 4: After-Sales Service
My device 2.1Cable connection 1、Purple 2、Blue 1 2 3 6 4 5 3、Green 4、yellow 5、Red 6、Black Ignition Fuel oil sensor Battery Earth Wire Temperature sensor Relay Oil Pump 2.2 LED indicators After-sales service Light type Light status Red light (power indicator) No power / device failure Normal flashing (1 time / S) The server is connected... -
Page 5: Interface Definition
2.3 Device Installation 4、Interface definition Operation of device Power on/ Power off Power on:Once you insert a valid SIM card and connect all the wires, turn on the device. Power LED will flash first. During signal searching process stable Power off: Just turn off the power switch. Note: When device is connected with external power, please turn on the battery switch. -
Page 6: Main Functions
Main Functions 4.1 SOS In emergent case, press SOS for 3 seconds to activate SOS alarm. Then the device will send SOS SMS to preset SOS numbers and then dial the numbers in a loop for 3 times until the call is picked up. - Page 7 4.5 Oil/Electricity cut-off When vehicle is stolen, oil/electricity cut-off command can be sent by platform, APP or SMS. Notice 1.Make sure ACC is correctly connected. 2.When ACC is OFF, command will be executed immediately. 3.When ACC is ON, but GPS is not fixed, command will be postponed.
-
Page 8: Platform Operation
4.6 Restore oil/electricity When alarm is all-clear, you can send restore oil/electricity command by platform, APP or SMS and restore vehicle power. (See command list 7-15) 4.7 Restart device If GPRS is abnormal (device is offline), you can send SMS command RESET# to restart the device. Device will reboot after 20 seconds after receiving the command. -
Page 9: Common Command List
SERVER,mode,domainName/IP,port,0＃ E.g. SERVER,1,a.whatsgps.com,6801,0# SERVER,0,47.75.111.37,6801,0# mode = 1 means set with domain name mode = 0 means set with ip address 5.2Download APP Please download and install the APP in designated website, APP store or Google Play store,www.whatsgps.com Common Command List... -
Page 10: Troubleshooting
After-sales service Delete SOS SOS,D,number1,number2, phone number number3# Center phone CENTER,A,phone number# number setting Set the petrol/ RELAY,T# electricity Reboot RESET# Trouble shooting If you are having trouble with your device, try these troubleshooting procedures before contacting a service professional. After-sales service problem Causes... - Page 11 After-sales service problem Causes Solutions Using the GPS tracker in the Unable to places that connect to Poor signal have good the network signal condition. Change the Unable to Signal shielded installation locate or Poor signal place No power Built-in battery Turn it on off alarm is off...
-
Page 12: Warranty Instructions And Service
Warranty instructions and service 1. The warranty is valid only when the warranty card is properly completed, and upon presentation of the proof of purchase consisting of original invoice indicating the date of purchase, model and serial No.of the product. We reserve the right to refuse warranty if this information has been removed or changed after the original purchase of the product from the dealer. -
Page 13: Warranty Card
Warranty card Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person...
