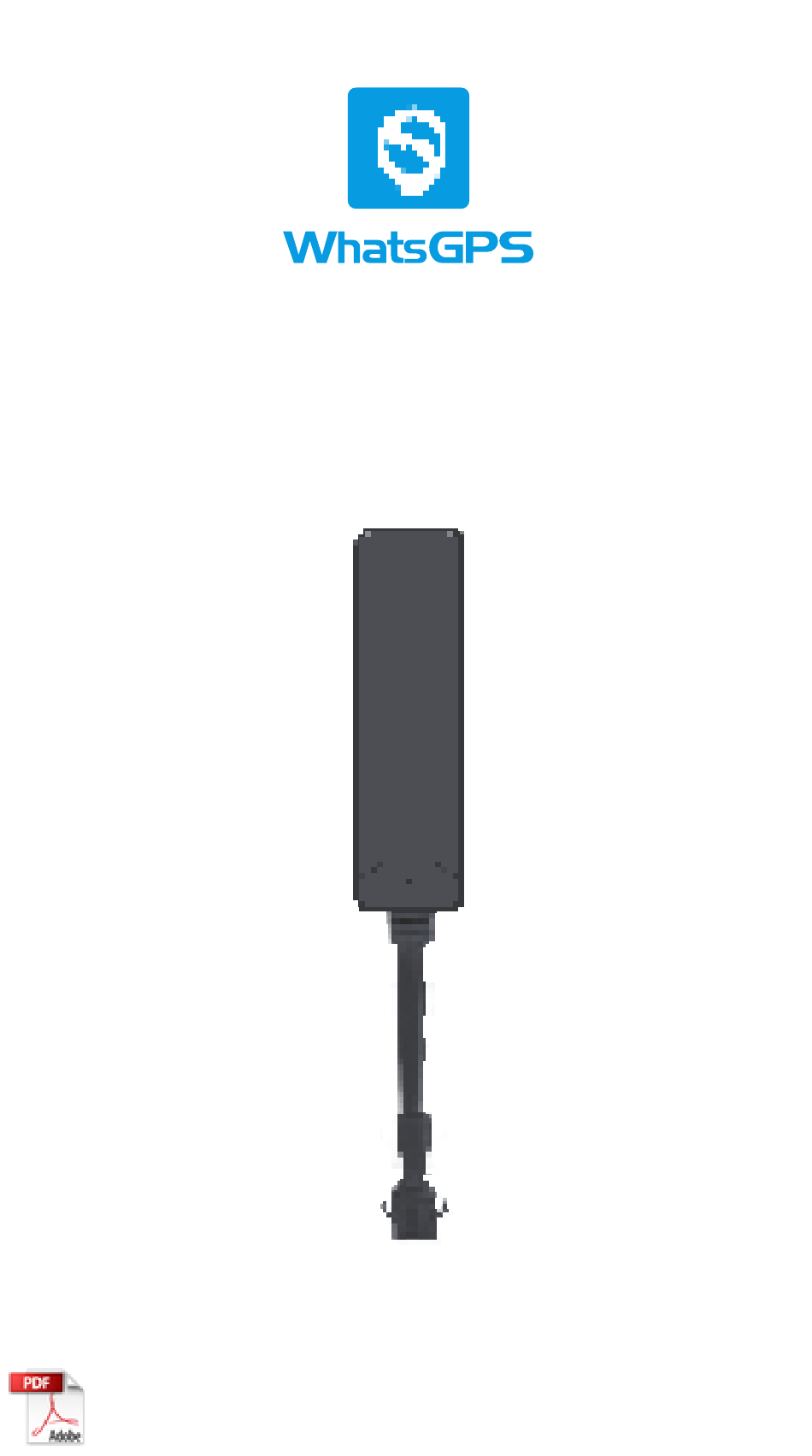

- Page 1 GPS Tracker S102A Model: User Manual...

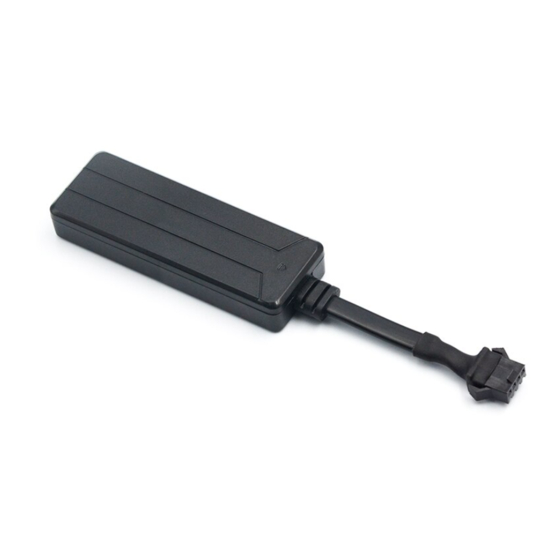

- Page 2 Chapter 1 Product Composition and Interface Definition 1. Product Overview Product Name: GPS Tracker S102A Product Model: Product Size: L77mm*W27mm*H12mm 2. The Schematic Of Product Yellow Sim Card Slot Switch Light sensor...
- Page 3 3. The Product Configuration List Name Quantity Unit Remark S102T S102A Unit User Manual; Warranty Card; Unit 3-In-1 Certificate Of Approval Power Cable Unit Note: The Above Is a List Of Standard Configurations For The Entire Set Of Products,And Accessories Outside The Above Range Are Subject To Additional Fees.
- Page 4 5. Definition Of Product Indicator Fast Flash: GSM In The Initialization Slow Flash: GSM Signals Is Normal GSM (Red) Long Bright: GPRS On Line Not Light: Not Yet Received Indicator The GSM Signal/Not Insert Sim Card/GSM Dormancy The Search Long Bright: GPS Has Been GPS(Yellow) Positioning Not Light: GPS Dormancy/...
- Page 5 Communication GPRS Network Gsm Frequency 850/900/1800/1900MHz Communication Working Temperature Storage Temperature Standby Battery 0.5 Hours 1 Year Warranty 2. Function List Of The Device Functions Function Details Description Upload The Longitude And Location Data Real-Time Latitude Information According Report Tracking To The Time Interval Setted Car Acc On/Off Uploaded Data Include The...
- Page 6 The Power Down Alarm And Light Sensor Alarm Triggered Illegal Dismantling Of The Device In 2 Minutes, Then The Illegal Dismantling Alarm Alarm Will Be Reported To The Server The Data Is Stored Up To 300pcs If The Terminal Is Blind Area Other Located And Not Online,...
- Page 7 Install the SIM card Open the bottom cover of the device and insert the SIM card into the card holder. Do not use excessive force to damage the card holder. Do not insert or remove the SIM card while the device is power on. Make sure the SIM card has Internet access.
- Page 8 B.Wires should be concealed; C.Please make sure the GPS antenna is connected to the right connector and fixed tightening to avoid vibrated. SMS Command for Online Tracking Setup Exactly format: Set IP Online: <SPBSJ*P:BSJGPS*T:120.025.232.237,7788*A:CMN ET*N:IMEI number*C:0030> Set The Domain Name Online: <SPBSJ*P:BSJGPS*Q:s3.gps18.com:7700*A:CMNE T*N:IMEI number>...
- Page 9 Chapter III Analysis of Common Problems and After-sales Service 1. Analysis Of Common Problems Problem Reason Solution Recharge Money Sim Card No Money Sim Card Connect Please Install Sim Card Again Good Or Not Reset Parameters With Online Parameter Center Monitor Correct Format According Setting Error Cannot...
- Page 10 Working temperature is -25to 75centigrade, Please cut off power if the temperature is over this range. When vehicle is in underground parks, tunnels or garage, maybe GPS signal will not very good. Communication network blind area will be caused and cannot monitor vehicle.
- Page 11 maintenance material cost fee will be charged. Free to provide customers with product purchase, use, installation and other consulting and technical services.
- Page 12 FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 13: Warranty Card
Warranty card Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person...
