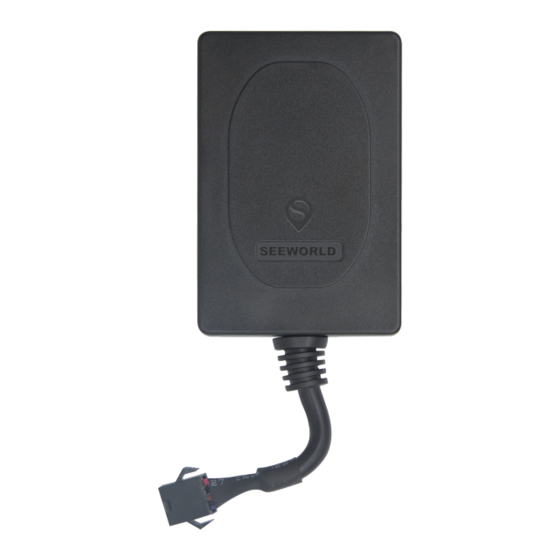

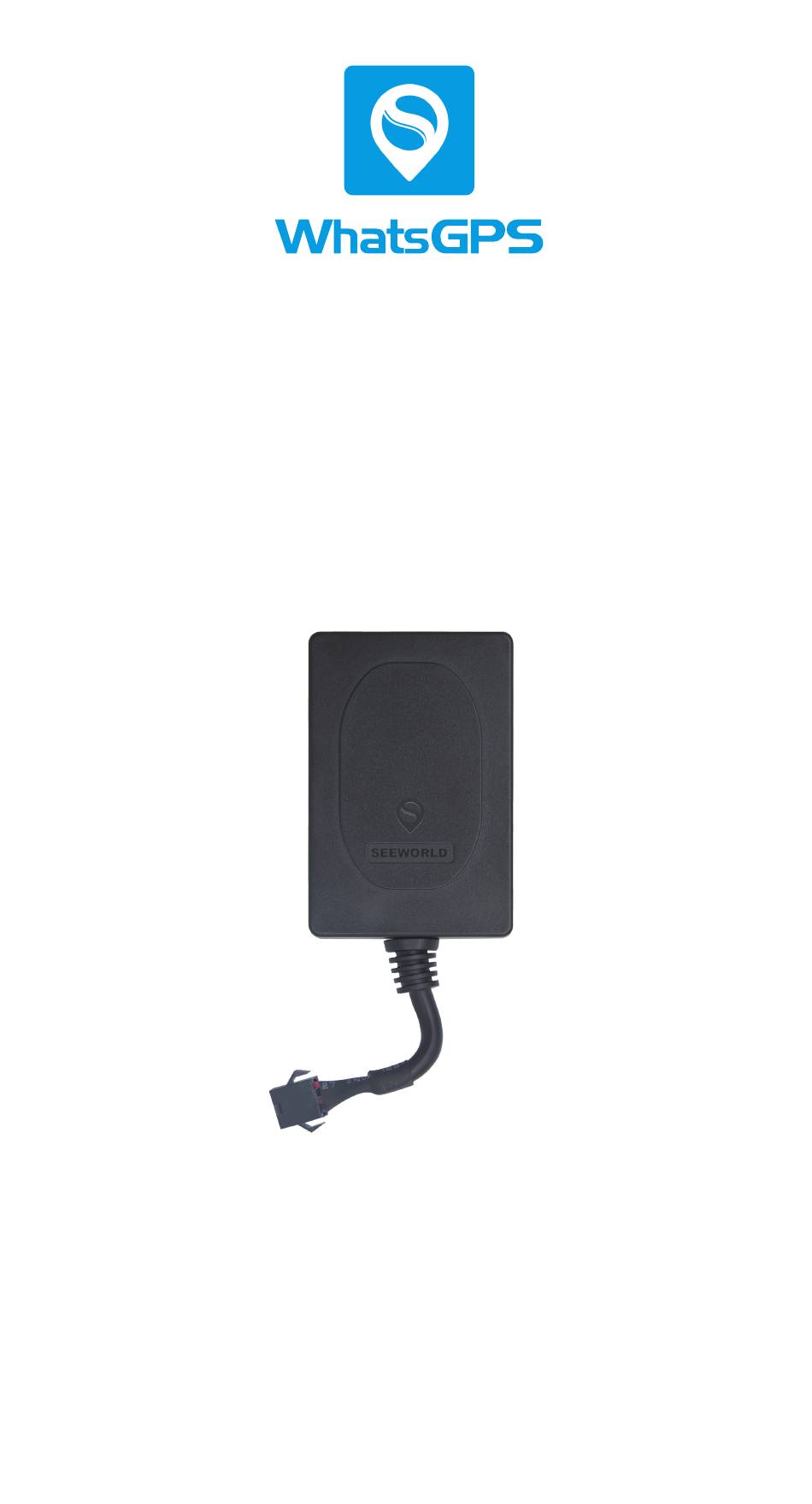

- Page 1 4G Vehicle GPS Tracker Model:S100 User Manual...
-
Page 2: Quick Starting
Quick starting Correct install SIM card, Backup battery, Power line Switch on the device, and make sure all indicate light working (P6) Accessories Main Backup Power line Sticker machine battery Appearance and interface Operation of switch button Under the status of switch off: Long press this button for 3 seconds to boot Under the status of switch on: Long press this button for 3 seconds to shut down... -
Page 3: Installation Method
Note: This button is in recessed design, please use sharp objects such as nib Installation method Install SIM card and backup battery Open the battery cover, insert the SIM card and fasten it, and then install the backup battery and close the battery cover. - Page 4 Install power line The standard power supply of this equipment is 9V ~ 30V (for cars, motorcycles) or 30V ~ 72V (for electric bicycles), the red line is the positive pole of the power supply, and the black line is the negative pole of the power supply;...
-
Page 5: Status Indication
Interface line description Color Description Positive, connect with the positive of E-bike/Motorcycle Negative, connect with ground wire Black ACC detection, Connect the electric Orange door lock of the E-bike or the ACC line of the motorcycle. Cut off oil wire Purple Status indication... - Page 6 1. SIM Card indication light Status Meaning Bright Device is turned on and the SIM card is normal Device is turned on but the SIM card Slow flash is not working properly Dark Not booting 2. GSM Signal strength indicator Status Meaning Bright...
-
Page 7: Platform Tracking
Download APP and installed it, open and logging your account (Account/final 6 numbers of IMEI) Multiple device management, it required dealer account The website is www.whatsgps.com Command description 1.Activate Use your mobile phone to send text messages to the tracker: SZMM, initial password, new password, tracker phone number. - Page 8 the previous section. Address information positioning Command: DW , sent to the tracker phone number, and the tracker will reply to the Chinese text message, which describes the current location of the vehicle. For example: near the XX Building, XX Road, XX City, XX Province.
- Page 9 Turn off vibration SMS notification: SZCS, password, VIB=0 [Note]: The factory defaults to turn off. If you need this function, please turn it on yourself and you can alarm in the armed state. Turn on vibration phone notification: SZCS, password, VIBCALL=1 Turn off vibrate phone notification: SZCS, password, VIBCALL=0 (default) Turn on speeding SMS notification:...
- Page 10 Dial the tracker mobile phone card number for 15 seconds (three ticks around the beep is fortification) Call the tracker card number again for 5 seconds (After hang up and hang up is to disarm) Loop this way SMS code: SZCS, password, CALLDISP=1 (factory default) (The owner number dial is valid, but the locator card number needs to be activated for caller ID!)
-
Page 11: Device Parameter
SZCS, password, OUTSMS =0 Restore factory settings SMS: Format Query password SMS: cxcs, psw For the use of Taiwan and foreign countries, you need to set APN (To send the binding information to the machine after the client binds the message, send the following information settings) APN, CMNET (6 is a fixed value;... - Page 12 Tracking sensitivity:< -160dBm TTFF(Open Sky): Avg.hot start ≤5s Avg.cold start ≤45s Location accuracy: 10m Speed accuracy: 0.3m/s GMS frequency B1/B2/B3/B4/B5/B7/B8/B28@FDD LTE; B40@TDD LTE; B1/B2/B5/B8@WCDMA; B2/B3/B5/B8@GSM Other parameter Device size: 78mm×52mm×20mm Working voltage: 9V～30V(motorcycle);30V～ 72V(E-bike) Maximum operating current: < 500mA (15V) Normal mode operating current: <...
-
Page 13: Troubleshooting
Troubleshooting After installing it in the first time, if device can not get connected with platform server, at this time it is “logged off” status in platform. Please check the installation of device: Check whether the connection of power-line is correct, please do not connect it with the car control line. - Page 14 as basement; Check the GSM/GPS disconnection area, whether it is all disconnected or few of them disconnected, to make sure whether it is the fault of operator’s internet. Check whether your SIM card charge is overdue; Check whether the SIM card supports GPRS; Check the parameter setup, whether the device IMEI number, GPRS sending interval is correct;...
- Page 15 check whether SIM card is installed correctly or there is no GSM signal at the location you are, such as basement parking, please drive to a place covered by GSM signal reception. When cellphone with special number receives tele- cutoff alarm sms, please make sure whether it is illegal wire cutoff, or the FUSE on power line is blown.
- Page 16 when you guarantee. Ii. Warranty regulations (1) from the date of purchase, non-human for damage fault enjoy a two-year warranty, one year for a new service. (2) one of the following cases is not covered by the warranty, but can be paid for maintenance. Over warranty period;...
-
Page 17: After-Sales Service
After-sales service 1. The products are subject to technical changes without prior notice Please refer to the material object for appearance and color 3. The warranty card is applicable to IMEI products specified in the following table 4. Please keep the card and receipt for after-sales service 5. -
Page 18: Warranty Card
Warranty card Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person...
