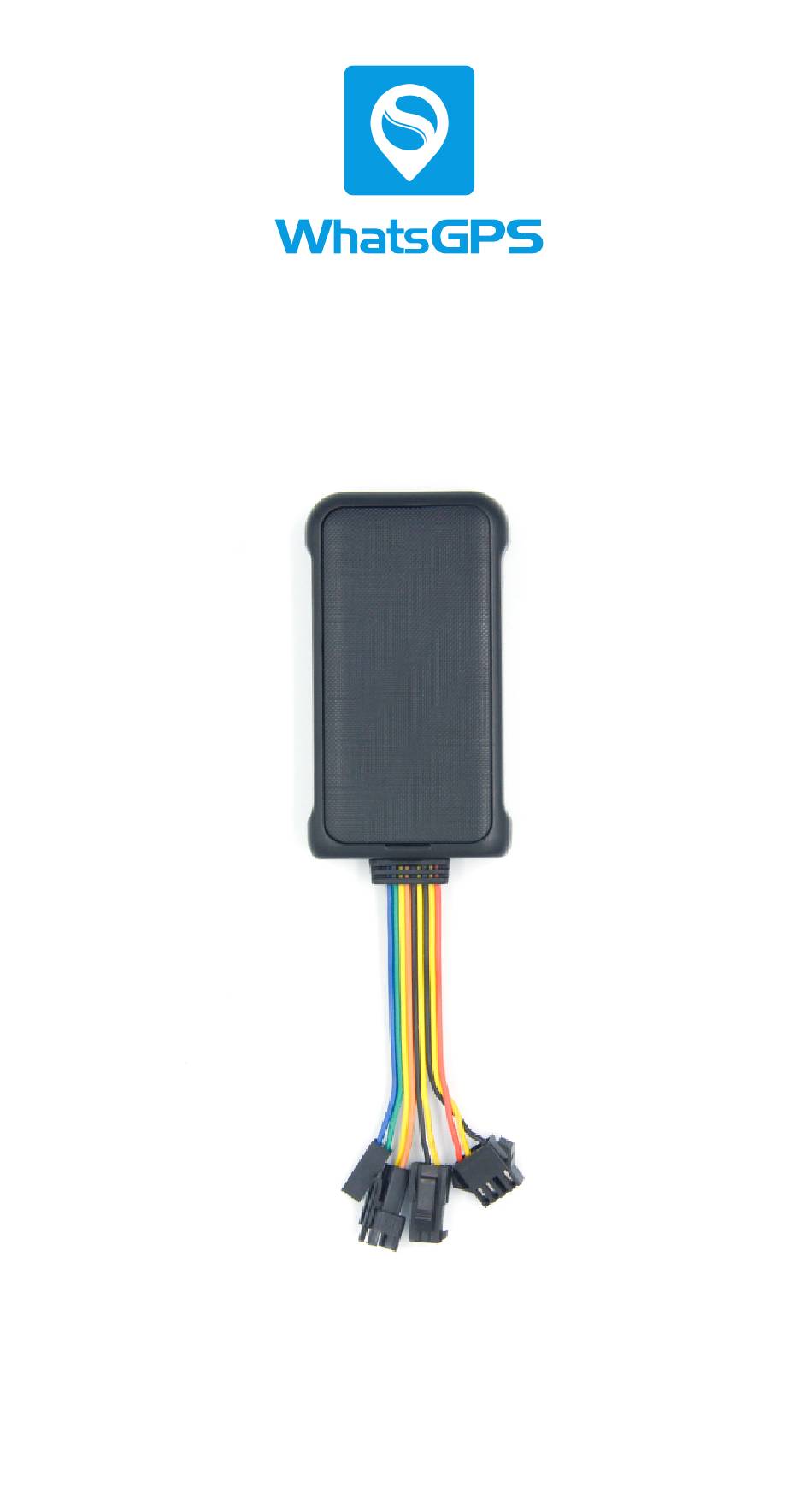

- Page 1 S288G (GPS+GPRS+GSM) User Manual...
-
Page 2: Product Introduction

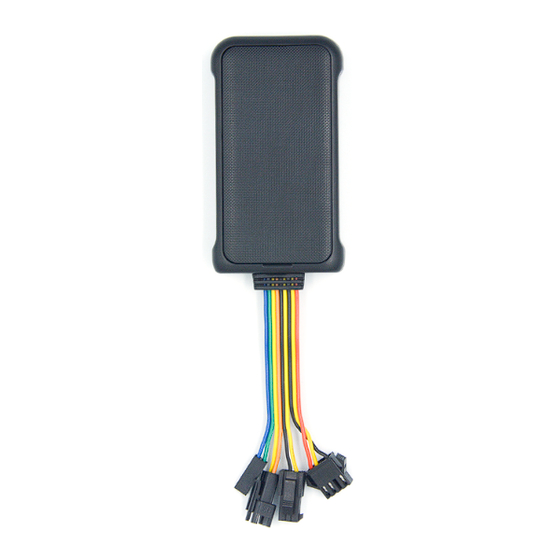

1、Product Introduction 288G GPRS/GSM type GPS intelligent terminal (mobile user terminal) has built-in industrial grade GPRS/GSM communication module and the latest high-receiving sensitivity GPS positioning module. It adopts GPRS and SMS dual-mode communication mode. The terminal runs stably, reliably and fully functions. -
Page 3: Detailed Specification
6、Support base station assisted positioning function; 7、Support remote power off and power off function; 8、Support SMS power off and power off function; 9、Support serial port upgrade function; 10、Support blind zone data refill function; 11、Support power off alarm function; 12、 Supports overspeed alarm function; 13、Support mileage statistics function;... - Page 4 GPS sensitivity -167dBm GPS frequency L1，1575.42 MHz，1561.10MHz Channel 64 channel Position accuracy < 3M，2D RMS Speed accuracy 0.1 M/S Time accuracy Synchronous GPS time Default data WGS-84 Re-acquire Average 0.1S Hot Start Average 1S Warm start Average 10S Cold start Average 28S Height limit 18,000m（60,000F）Max...
-
Page 5: Interface Definition
4、Interface definition 4.1、Power cable Pic: Pin description: 1.Power port Color Functions/Wiring method The power input is positive, the working voltage is 8VDC ~50VDC, and the positive of the car battery is connected; The power input is negative, and the negative of the car battery is connected;... - Page 6 2、Locking oil Color Functions Lock the oil circuit positive, connect the relay Orange yellow line Lock the oil circuit negative, connect the relay Grey white wire 3、咪头 Color Functions Orange SOS+ Yellow SOS— Note: There may be minor adjustments to different batches of line color.
-
Page 7: Installation Precautions
normal operation: 5~8M for 1 minute monitoring, 10~ 12M for 30 seconds monitoring, and the flow rate unit is byte. 3.Record the relevant vehicle information such as the SIM card number and the vehicle license plate number to be installed, and use the open user name and password to log in to the online car or CS version of the client software to add information about the fleet, vehicle, etc. -
Page 8: Installation
supply of the vehicle (the power cable directly connected to the battery); 4.2. When selecting the installation position of the GPS vehicle terminal, try to keep away from the car electronic equipment and other heat source devices, especially the wireless equipment and high-power electronic equipment, and install it firmly to avoid damage to the GPS vehicle terminal due to long-term large vibration;... - Page 9 5.2、Installation steps and parameter settings: ①Disassemble the screws and insert the SIM card into the SIM card holder on the circuit board. When taking the circuit board, please be careful not to touch the components on the circuit board as much as possible to avoid static damage to the circuit board.
-
Page 10: After-Sales Service
After-sales service alarm. The national number must be added before the number. For example, the domestic 13512345678 should be *+8613512345678*. The service SMS number is the corresponding target number when the SMS message service is opened. *SMS verification password: The factory default is 123456, which must be 6 digits;... -
Page 11: Standard Accessories
Precautions: The parameter input must be correct. Otherwise, the platform cannot be logged in normally. It is recommended to use the short message T command to query whether the parameters are correct, and check whether the terminal is online normally on the monitoring platform. - Page 12 drives out of the above area, the equipment will automatically recover. ④4 The power supply of the device is between 9V and 33V DC. The recommended working voltage is 12V or 24V. The installation should first determine whether the user's power system is within this range. Exceeding the maximum voltage of the terminal will damage the terminal.
- Page 13 8、After sales service ①This product enjoys one year warranty from the date of sale. During the warranty period, the equipment is damaged due to non-human factors or product quality. Please contact Guangzhou Sward Technology Co., Ltd. for free maintenance. ②The equipment for the customer to remove the boot casing shall not be repaired.
-
Page 14: Troubleshooting
Trouble shooting 1. when the terminal displays offline or offline status in the background. 2. to confirm whether the GSM network is normal, please use your mobile phone to call the SIM card of the terminal Number, according to the prompt tone to determine the status of the terminal. - Page 15 3.If the device’ GPS function is normal, but can not locate for a long time, please check whether the installation setup of device is correct: 1)Please make sure the GPS antenna face is up; 2)Please make sure there is no electromagnetic wave- absorbent object (metal) above the device, especially the thermal-protective coating on the windshield, it may affect the GPS reception of the device;...
-
Page 16: Warranty Card
Warranty card Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person... - Page 17 the operator to open it for you. If there is no connection, the prompt terminal cannot be connected temporarily or is not in the service area. The area where the terminal is located may not cover the GSM signal or the signal is weak in the basement. Please drive to the area where there is a signal to use.
