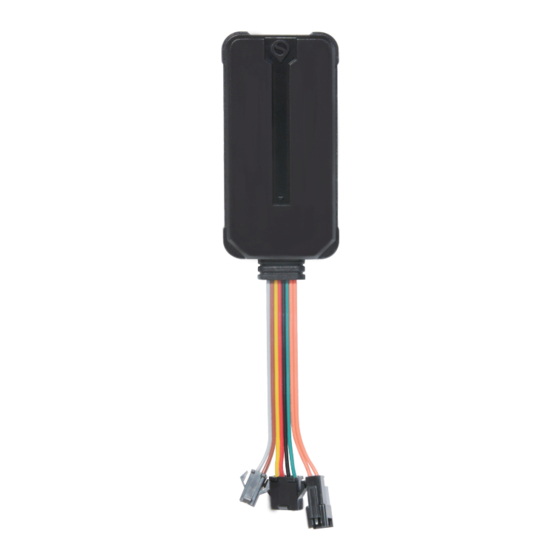

- Page 1 2G Vehicle GPS Tracker Model:S06U User Manual...
-
Page 2: Installation Instructions
Installation instructions 1. Accessories list Confirm whether the accessories are complete before using , including: S06U - 1 Power line - 1 Relay - 1 Microphone - 1 SOS line - 1 User manual - 1 2. Installation instructions SIM card installation Open the face shell according to the instructions in figure 1 and load the SIM card. - Page 3 Interface description Port 1 Port 2 Port 3 Port 1：Micphone Port 2： Power/ACC/Relay Port 3：SOS botton Notes for wiring The power supply range supported by the equipment is 6-30v, please use the power cord provided by the original factory. The red wire is the positive pole and the black wire is the negative pole.
- Page 4 the relay control line of the equipment. Cut the positive line of the oil pump and connect it to the normally closed section of the relay (coarse green line 87a) and the other end to the common end of the relay (coarse green line 30).
- Page 5 supports automatic switching of APN in most countries. If the country or region cannot be switched automatically, it can be switched by sending SMS. Example: APN, cmnet# Time zone setting Format: GMT,[A],[B],[C]# Note: the value of A is E or W, respectively representing the eastern time zone and the western time zone.
- Page 6 Delete center number instruction. Example: CENTER, D# SOS setting Format: SOS,A,[Num1],[Num2],[Num3]# Instruction: set the SOS number through the SOS instruction, the SOS number can receive the SOS alarm information, and the remote listening can be achieved by dialing the equipment number. Can set 1-3 Numbers, Example: SOS,A,, 12345678911.
- Page 7 central number can send the instruction. Example: RELAY,1# send this instruction to realize the cut-off of oil and electricity. Example: RELAY,0# send this instruction to restore oil and electricity. Note: in order to ensure the safety of vehicles and drivers, the device will only perform the power cut function when the speed is less than 20KM/h under the condition of effective GPS positioning.
- Page 8 IMEI: 680915040900918; (IMEI number) APN: cmnet; (current APN) IP: 47.90.83.185:8841; (current platform address and port) The TIMER: 20; (current upload interval) CENTER: 123456789012; (current centre number) TimeZone: 8-0; (current time zone) LANG: EN. (language type) LCWL: OFF; (local fence status) Mode: 2;...
- Page 9 GPS: Fixed; (GPS positioning status indicator, Fixed: positioned, Invalid) GPS Signal: L; (GPS signal value, H: high; M:; L: low;) ACC: OFF; (ACC ignition status indicator, ON stands for startup status, OFF stands for flameout status) Fuel Supply: OFF (indicating the cut-off of oil/engine, ON means the oil circuit is connected, OFF means the oil circuit is broken) Software version querying...
-
Page 10: Operation
Operation 4.1 Switch machine After the device is loaded into the SIM card, it can be powered on. If the device needs to be restarted, it can be restarted after 10 seconds of power off. 4.2 View location 1) SMS Chinese address query. 2) latitude and longitude location SMS query. - Page 11 be generated when the power is cut off. During the initial installation, the battery power is low and may not receive alarm information. In this case, the power needs to be on for more than 10 minutes, and the alarm can only be issued when the power is cut off after the internal battery has a certain amount of power.
-
Page 12: Main Features
sent instructions to operate. Please refer to command list for instruction format. Main features GSM Quad-band，built-in GSM/GPS antenna. Supporting multi-modal satellite location systems. Wide voltage 6-30 v. Built-in surge protection circuit. Built-in hardware control circuit, the abnormal state automatic recovery. Support relay control. - Page 13 GPRS level：Class12 Communication types: TCP/UDP 2. GPS specifications Chip：u-blox M8030 Antenna size: 25 x25x4mm Support of satellite system, GPS and BeiDou, Galileo, GLONASS Built - in low noise magnifying circuit Position precision: about 5 meters (empty outdoor environment) 3. Power system Current average job: less than 30 ma (12 v power supply).
-
Page 14: Troubleshooting
Support SOS function. 5. Device specifications Device size: 84x42x13.6mm Weight: 80g 6. Environmental parameters Working temperature: -20 ℃ to +70 ℃ Storage temperature:-40℃ to +85℃ Work humidity: 20% to 80% Troubleshooting 1. The terminal has been unable to connect to the background server after the first installation. - Page 15 7) power on to check the status of LED indicator, both lights are normally on when the connection is normal; 2. The connection platform of the device is normal, but the satellite positioning is abnormal. In this case, please check: 1) please ensure that the equipment is outdoors;...
-
Page 16: Warranty Card
Warranty card Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person Maintenance record Maintenance shop Sending date Fault description Maintenance situation IMEI number Maintenance person...
