Graco 17R720 Installation-Parts

Apx sprayer hose reel

Installation, Parts

APX Sprayer Hose

Reel

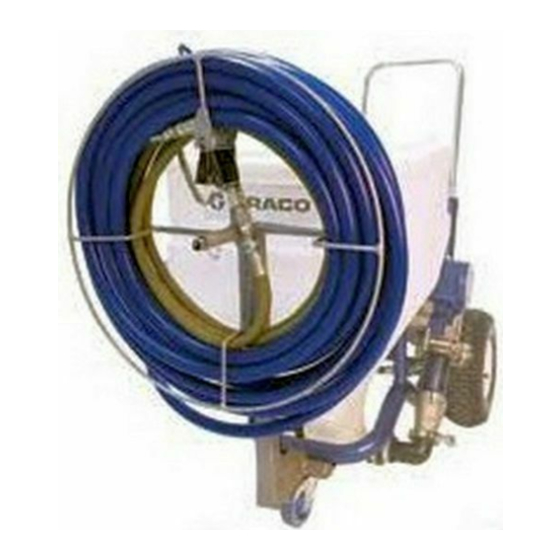

Hose reel accessory for high production plastering applications.

Model: 17R720

Important Safety Instructions

Read all warnings and instructions in this manual and in related manuals. Be famil-

iar with the controls and the proper usage of the equipment. Save all instructions.

For professional use only.

www.graco.com/techsupport

3A5027A

ti30857a

Table of Contents

Do you have a question about the 17R720 and is the answer not in the manual?

Page 1 Reel Hose reel accessory for high production plastering applications. For professional use only. Model: 17R720 Important Safety Instructions Read all warnings and instructions in this manual and in related manuals. Be famil- iar with the controls and the proper usage of the equipment. Save all instructions.
Page 2 APX Hose Reel APX Hose Reel ti30858a Assemble hose reel to the sprayer: • • Tip sprayer back and remove swivel Slide hose reel post (2) into hose reel caster (36) by removing the four receiver base (5). capscrews (37). •...
Page 3 APX Hose Reel 17R720 APX Hose Reel Parts ti30860a Ref. Part Description Qty. Ref. Part Description Qty. 111145 KNOB, pronged 17R722 REEL, hose 17R711 BASE, receiver 122518 SCREW, shoulder, socket head 121313 PIN, locking, 1/4” 122542 SPRING 17S003 PLATE, label, hose...
