4

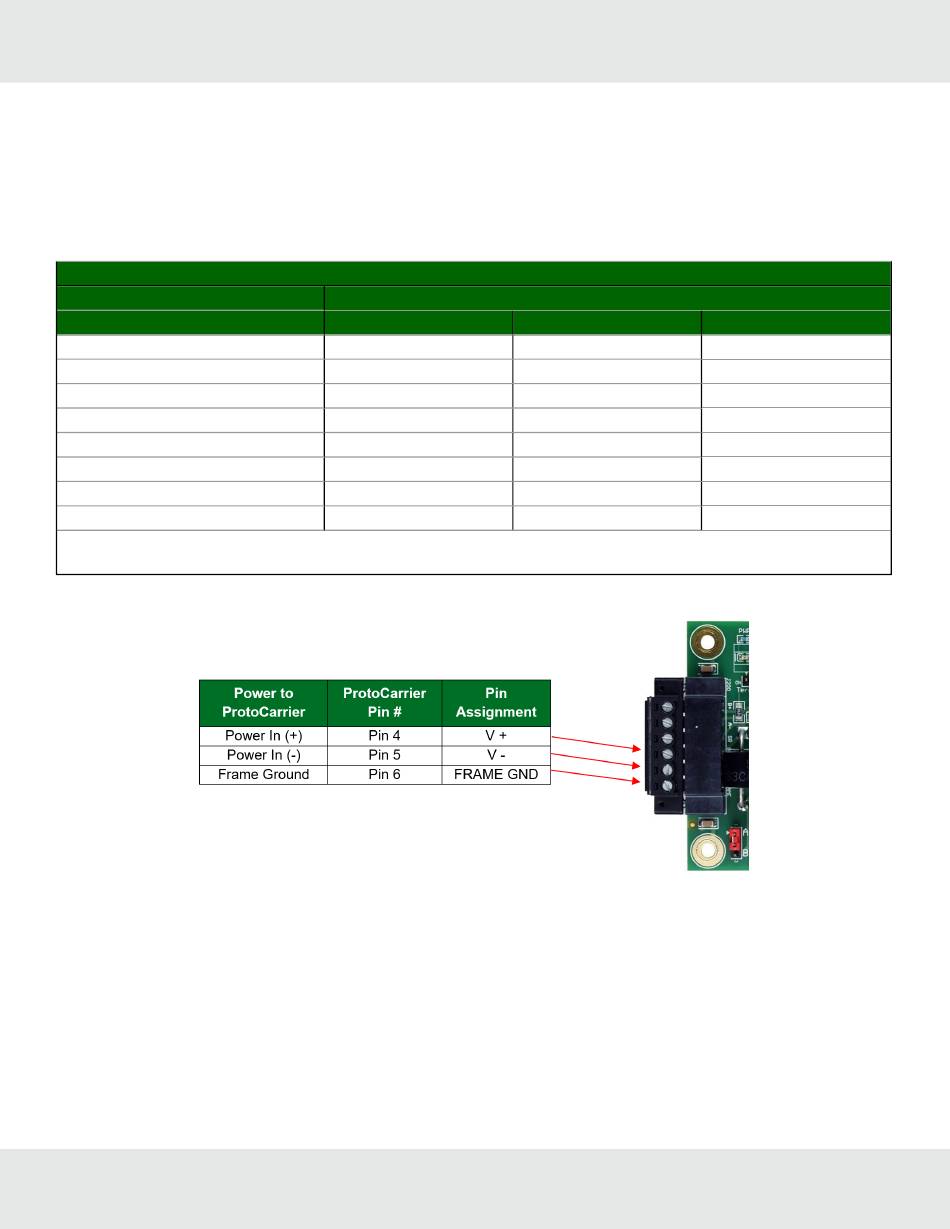

Power up the ProtoCarrier
Apply power to ProtoCarrier as show below. Ensure that the power supply used complies with the specifications provided in
Section
10.7
Specifications.
•
ProtoCarrier accepts either 9-30VDC or 12-24 VAC on pins 4 and 5.
•
Frame GND should be connected.
ProtoCarrier Family
FPC – C34, C38 (Typical)
FPC – C34, C38 (Maximum)
FPC – C35, C39 (Typical)
FPC – C35, C39 (Maximum)
FPC – C40 (Typical)
FPC – C40 (Maximum)
FPC – C42 Slave (Maximum)
FPC – C42 Master (Maximum)
NOTE: These values are 'nominal' and a safety margin should be added to the power supply of the host system.
A safety margin of 25% is recommended.
12
Power Requirement for ProtoCarrier External Gateway
Current Draw Type
12VDC/VAC
170mA
220mA
210mA
260mA
200mA
250mA
330mA
830mA
ProtoCarrier Start-up Guide
24VDC/VAC
110mA
140mA
110mA
140mA
110mA
140mA
170mA
420mA
30VDC
90mA
115mA
90mA
115mA
90mA
115mA
135mA
335mA
