Organic Solvent Recovery Unit
Model
RT200
Instruction Manual
- First Edition -
Thank you for purchasing "Organic Solvent
Recovery Unit, RT200" of Yamato Scientific Co.,
Ltd.
To use this unit properly, read this "Instruction
Manual" thoroughly before using this unit.
Keep this instruction manual around this unit for
referring at anytime.
WARNING!:
Carefully read and thoroughly understand the
important warning items described in this
Yamato Scientific Co. LTD.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yamato RT200
Summary of Contents for Yamato RT200
- Page 1 RT200 Instruction Manual - First Edition - Thank you for purchasing "Organic Solvent Recovery Unit, RT200" of Yamato Scientific Co., Ltd. To use this unit properly, read this "Instruction Manual" thoroughly before using this unit. Keep this instruction manual around this unit for referring at anytime.
-
Page 2: Table Of Contents
Contents Cautions in Using with Safety..............1 • Explanation........................1 • Table of Illustrated Symbols ..................2 • Fundamental Matters of "WARNING!" and "CAUTION!" ..........3 Before Using This Unit ................4 • Requirements for Installation..................4 Description and Function of Each Part ..........5 •... -
Page 3: Cautions In Using With Safety
Cautions in Using with Safety Explanation MEANING OF ILLUSTRATED SYMBOLS Illustrated Symbols Various symbols are used in this safety manual in order to use the unit without danger of injury and damage of the unit. A list of problems caused by ignoring the warnings and improper handling is divided as shown below.Be sure that you understand the warnings and cautions in this manual before operating the unit. -
Page 4: Table Of Illustrated Symbols
Cautions in Using with Safety Table of Illustrated Symbols Warning Warning, Warning, Warning, Warning, Warning, generally high voltage high temperature drive train explosive Caution Caution, Caution, Caution, Caution, Caution, generally electrical shock scald no road heating not to drench Caution, Caution, water only deadly poison... -
Page 5: Fundamental Matters Of "Warning!" And "Caution
Cautions in Using with Safety Fundamental Matters of "WARNING!" and "CAUTION!" WARNING! Do not use this unit in an area where there is flammable or explosive gas Never use this unit in an area where there is flammable or explosive gas. This unit is not explosion-proof. An arc may be generated when the power switch is turned on or off, and fire/explosion may result. -
Page 6: Before Using This Unit
Before Using This Unit Requirements for Installation WARNING! 1. Do not use this unit in an area where there is flammable or explosive gas / Install exhauster and ventilator • Never use this unit in an area where there is flammable or explosive gas. -
Page 7: Description And Function Of Each Part

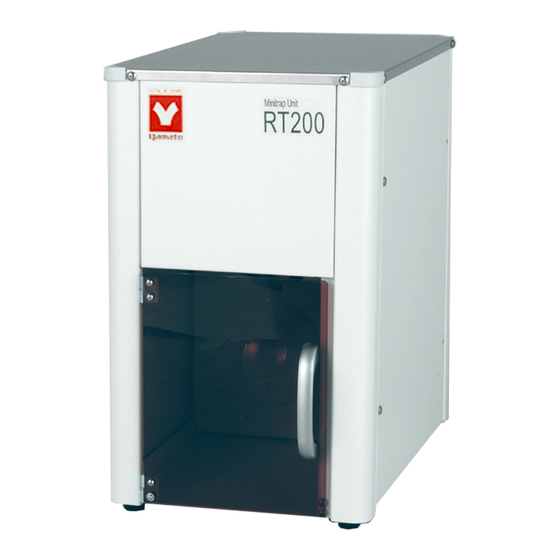

Description and Function of Each Part Main Unit Front view mini trap RT200 Flask clamp Solvent collecting flask 500mL Acryl door Rear view Nipple connecting to a cooling water hose (inner diameter of hose: 9φ) Nipple connecting to a vacuum hose... -
Page 8: Installation
Connect the vacuum hose between the exhaust nozzle of vacuum pump and IN nipple on the RT200, as shown in the figure. The end connection of exhaust piping and cooling water piping on the RT200 model are placed on the back surface of main unit. -
Page 9: Handling Precautions
If an abnormality such as strong odor of the solvent is found, please request a checkout of equipment from selling office or sales office of Yamato Scientific. Co., Ltd. The fire disaster or bombing may occur if the abnormality is left. Do not try to repair the equipment by yourselves for your own safety. -
Page 10: Long Storage And Disposal
• Check if the piping is correct. In the case if the error other than listed above occurred, turn off the power and disconnect the power cord immediately. Contact the shop of your purchase or nearest Yamato Scientific Service Office. -
Page 11: After Service And Warranty
In Case of Request for Repair If the failure occurs, stop the operation, turn OFF the power switch, and unplug the power plug. Please contact the sales agency that this unit was purchased, or the Yamato Scientific's sales office. < Check following items before contact >... -
Page 12: Specification
Specification Product name Organic solvent recovery unit Model RT200 Condenser Hard glass Solvent collecting flask 500mL hard glass Outer covering Print coating finish made from cold rolling steel sheet Door Acryl door IN/OUT nipple connecting Outer diameter: 9mm to a cooling water hose... -
Page 13: Replacement Parts Table
Replacement Parts Table Part Name Code No. Specification Manufacturer Condenser LT00016059 Hard glass Yamato Scientific Solvent collecting flask LT00016180 Hard glass Yamato Scientific Flask clamp F0410005 KS35B (black) Yamato Scientific... -
Page 14: Reference
Reference List of Dangerous Substances Never use explosive substances, flammable substances and substances that include explosive or flammable ingredients in this unit. EXPLOSIVE Ethylene glycol dinitrate (nitro glycol), Glycerin trinitrate (nitroglycerine), Cellulose nitrate (nitrocellulose), and other explosive nitrate esters Trinitrobenzene, Trinitrotoluene, Trinitrophenol (picric acid), and other explosive EXPLOSIVE: nitro compounds Acetyl hidroperoxide (peracetic acid), Methyl ethyl ketone peroxide, Benzyl... - Page 15 Responsibility Please follow the instructions in this document when using this unit. Yamato Scientific has no responsibility for the accidents or breakdown of device if it is used with a failure to comply. Never conduct what this document forbids. Unexpected accidents or breakdown may result in.
