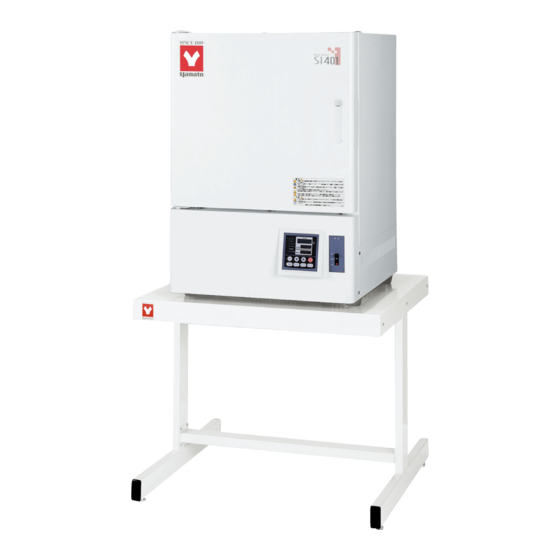

Drying Sterilizer
Model
SI 401/601
Instruction Manual
- First Edition -
Thank you for purchasing "Drying Sterilizer, SH
Series" of Yamato Scientific Co., Ltd.
To use this unit properly, read this "Instruction
Manual" thoroughly before using this unit.
Keep this instruction manual around this unit for
referring at anytime.
WARNING!:
Carefully read and thoroughly understand the
important warning items described in this manual
before using this unit.
Yamato Scientific America Inc．
Santa Clara，CA
This paper has been printed on recycled paper.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yamato SI 401
Summary of Contents for Yamato SI 401
- Page 1 Instruction Manual - First Edition - Thank you for purchasing "Drying Sterilizer, SH Series" of Yamato Scientific Co., Ltd. To use this unit properly, read this "Instruction Manual" thoroughly before using this unit. Keep this instruction manual around this unit for referring at anytime.
-
Page 3: Table Of Contents
Contents Cautions in Using with Safety ............... 1 Explanation ........................1 Table of Illustrated Symbols ..................2 Fundamental Matters of "WARNING!" and "CAUTION!" ..........3 Before Using this unit ................4 Requirements for Installation ..................4 Description and Function of Each Part .......... -
Page 4: Cautions In Using With Safety
Cautions in Using with Safety Explanation MEANING OF ILLUSTRATED SYMBOLS Illustrated Symbols Various symbols are used in this safety manual in order to use the unit without danger of injury and damage of the unit. A list of problems caused by ignoring the warnings and improper handling is divided as shown below.Be sure that you understand the warnings and cautions in this manual before operating the unit. -
Page 5: Table Of Illustrated Symbols
Cautions in Using with Safety Table of Illustrated Symbols Warning Warning, Warning, Warning, Warning, Warning, generally high voltage high temperature drive train explosive Caution Caution, Caution, Caution, Caution, Caution, generally electrical shock scald no road heating not to drench Caution, Caution, water only deadly poison... -
Page 6: Fundamental Matters Of "Warning!" And "Caution
Cautions in Using with Safety Fundamental Matters of "WARNING!" and "CAUTION!" WARNING! Do not use this unit in an area where there is flammable or explosive gas Never use this unit in an area where there is flammable or explosive gas. This unit is not explosion-proof. -
Page 7: Before Using This Unit
Before Using this unit Requirements for Installation WARNING! 1. Always ground this unit Be sure to connect the earth wire (the green cable of power cord) to the grounding conductor or ground terminal to prevent accidents caused by electric leakage. ... - Page 8 Before Using this unit Requirements for Installation 3. Do not use this unit in an area where there is flammable or explosive gas (Refer to page 42 "List of Dangerous Substances".) Never use this unit in an area where there is flammable or explosive gas.
- Page 9 Before Using this unit Requirements for Installation 4. Do not modify 5. Installation on horizontal surface Modification of this unit is strictly Set this unit to the flattest place. Setting prohibited. This could cause a failure. this unit on rough or slope place could cause the vibration or noise, or cause the unexpectible trouble or malfunction.
- Page 10 Before Using this unit Requirements for Installation 8. Choose a correct power distribution board or receptacle Choose a correct power distribution board or receptacle that meets the unit’s rated electric capacity. Electric capacity: SI401：115V AC, 10.6A SH601: 115V AC, 11.8A NOTE) There could be the case that the unit does not run even after turning ON the power.
- Page 11 Before Using this unit Requirements for Installation 11. Handling of power code Do not entangle the power cord. This will cause overheating and possibly a fire. Do not bend or twist the power cord, or apply excessive tension to it. This may cause a fire and electrical shock.
-
Page 12: Description And Function Of Each Part
Description and Function of Each Part Main Unit SI401/601 Temperature sensor Front view Door handle Main switch (Earth leakage breaker) Door Control panel Rear view Exhausted opening Power code... -
Page 13: Control Panel
Description and Function of Each Part Control Panel ⑧ ⑭ POWER ⑨ ⑩ ⑮ ⑪ ⑫ ⑯ ⑰ ⑬ ③ ① ⑱ ② ④ ⑦ ⑤ ⑥ Starts/stops the operation. ① START/STOP Key： Uses for rising UP/lowering DOWN the setting value. ②... -
Page 14: Characters Of The Controller
Description and Function of Each Part Characters of the Controller The characters VS4 controller shows are as follows: Character Identifier Name Purpose Used for starting the fixed temperature Fixed Temperature operation. Setting Mode Used for setting the temperature. Temperature Setting Represents the setting of quick auto stop or Timer Setting Mode AStP... -
Page 15: Operation Method
Operation Method Operation Mode and Function List All the operation mode of this unit is as follows; Name Description Page The unit is input to perform one-hour sterilizing operation at the temperature of 180℃. Pressing the PROGRAM key displays the “PrG1”. Sterilizing Operation Pressing the START/STOP key for one second starts the sterilizing operation. - Page 16 Operation Method Operation Mode and Function List The operation function of this unit is as follows; Name Description Page This function is set to be automatically activated Auto overheating (auto reset) when the temperature exceeds the prevention function setting temperature by 12℃. Though the device shares power source, display, and key input with the controller, it has Overheating...
-
Page 17: Operation Mode, Function Setting Key, And Characters
Operation Method Operation Mode, Function Setting Key, and Characters The operation mode setting and function setting use the key operation and characters show in the following figure. -
Page 18: Setting Of Overheating Prevention Device
Operation Method Setting of Overheating Prevention Device The unit has the overheating prevention device (manual reset) that consists of independent temperature measurement circuit, CPU, sensor and output circuit (it shares power source, display, and key input with the controller) in addition to the automatic overheating prevention function (auto reset) in the controller. -
Page 19: Sterilizing Operation
Operation Method Sterilizing Operation The unit is registered to perform one-hour sterilizing operation program at the temperature of 180℃. The program is registered in the program mode "PrG1". Sterilizing operation 1. Turn on the power (turn on the breaker in front) procedure ... - Page 20 Operation Method Sterilizing Operation Change sterilizing Follow the procedures below to change the sterilizing temperature temperature/time or time already registered. ① Press the PROGRAM key on the initial screen to display the "PrG1", which indicates the program operation, on the setting temperature display screen.
-
Page 21: Fixed Temperature Operation
Operation Method Fixed Temperature Operation 1. Turn on the power (turn on the breaker in front) Fixed temperature The default value is displayed for about four seconds after turning operation procedure on the power. The screen then displays the initial setting. The current temperature in furnace, operation mode character and setting temperature of overheating prevention device are displayed on respective screens. -
Page 22: Quick Auto Stop Operation
Operation Method Quick Auto Stop Operation This operation is used to specify the period up to automatic stop, Quick auto stop i.e., sets the auto stop timer during operation. operation procedure 1. Set the time up to stop during fixed temperature operation ... -
Page 23: Auto Stop Operation
Operation Method Auto Stop Operation This operation is used to specify the automatic stop time in the Auto stop operation fixed temperature operation. procedure 1. Set stop time ① Press the TIMER key on the initial screen. Press the TIMER key again. The setting temperature display screen displays the character "AstP", which indicates the auto stop operation, with blinking. - Page 24 Operation Method Auto Stop Operation 3. Stop/terminate timer operation The operation stops automatically at setting time. Buzzer continues to sound for about five minutes at operation stop. The setting temperature screen displays the character "End", which indicates termination of operation, with the FIXED TEMP and AUTO STOP lamps lighting on.
-
Page 25: Auto Start Operation
Operation Method Auto Start Operation This operation is used to specify the period up to automatic start Auto start operation after power on. procedure 1. Set start time ① Press the TIMER key on the initial screen. Press the TIMER key again. The setting temperature display screen displays the character "Astr", which indicates the auto start operation, with blinking. - Page 26 Operation Method Auto Start Operation 3. Stop/terminate timer operation The operation starts automatically at setting time. Press the START/STOP key for one second to stop or terminate operation. The screen returns to the initial setting screen. To correct or check setting… Changing the setting temperature or time during operation is possible by pressing the TIMER key.
-
Page 27: Program Operation
Operation Method Program Operation This operation is used to change the temperature according to the setting temperature and time. Temp △ Start △ Stop Time Program types Six patterns of program types maximum can be input. At factory shipment, the unit is set to perform one-hour sterilizing operation program at the temperature of 180 ℃... - Page 28 Operation Method Program Operation Program creation The program pattern below is explained as an example. 1. Program pattern example Temp. 250℃ 200℃ 150℃ 100℃ 0℃ Step ← → Repeat function Temp.(℃) The number of steps is not counted. Time(min.) 1. Turn on the power ...
- Page 29 Operation Method Program Operation The example shown below explains the method of program registration using PrG3. 4. Register program ① Select PrG3 referring to 3 mentioned above. ② Input the number of steps, temperature and time for respective steps using the program creation sheet. ③...
- Page 30 Operation Method Program Operation 5. Start program operation Press the START/STOP key for about one second. program operation previously set starts. The PROGRAM lamp lights on and the setting temperature screen displays the step currently under operation. Press the "▼" to check the setting temperature and residual time of step currently under operation on the setting temperature screen.
- Page 31 Operation Method Program Operation Use program repeat function This section explains how to register the program repeat (repeating a program pattern) in program operation. This section explains the registration procedure of program using repeat function in "4. Register program" above. The procedure sets the step number to be repeated "PS-n"...
- Page 32 Operation Method Program Operation Programming Preparation Form 1 (Please use this form by making copies) Register with: PrG1 PrG2 PrG3 PAt1 PAt2 PAt3 Date Project Name Programmer Program Pattern 250℃ 200℃ 150℃ 100℃ 50℃ STEP...
- Page 33 Operation Method Program Operation Programming Preparation Form 2 (Please use this form by making copies) Register with: PrG1 PrG2 PrG3 PAt1 PAt2 PAt3 Date Project Name Programmer Input Value Time (min.) Repeat Function Temperature (℃) Step 1 To/Times Step 2 Step 3 Step 4 Step 5...
-
Page 34: Other Functions
Operation Method Other Functions Use calibration offset function Calibration offset is a function which corrects the difference between the temperature in furnace and that of controller (sensor temperature) if arises. The function parallel corrects the difference either to the plus or minus side within the whole temperature range of unit. The function can be set or cancelled by the SUBMENU key. -
Page 35: Handling Precautions
Handling Precautions WARNING! If a problem occurs If smoke or strange odor should come out of this unit for some reason, turn off the power key right away, and then turn off the circuit breaker and the main power. Immediately contact a service technician for inspection. - Page 36 Handling Precautions Setting of sample Since the withstand load of the attached shelf plate is about 15kg per one plate, do not set heavier sample than 15kg. When setting several sample, set them as dispersed as possible. Too much sample setting could cause the improper control of the temperature. For keeping the proper temperature, keep more than 30% space against whole size of the shelf plate, and set the sample.
-
Page 37: Maintenance Method
Maintenance Method Daily Inspection and Maintenance For the safety use of this unit, please perform the daily inspection and maintenance without fail. Using the city water to this unit might attach dirt. Do inspect and maintain this point while performing daily inspection and maintenance. WARNING! ... -
Page 38: Long Storage And Disposal
Long storage and disposal When not using this unit for long term / When disposing CAUTION! When not using this unit for long term… Turn off the power and disconnect the power cord. WARNING! When disposing… Keep out of reach of children. ... -
Page 39: In The Event Of Failure
In the Event of Failure… Safety Device and Error Code This unit has an automatic diagnosis function built in the controller and safety devices independent of the controller. The table below shows the cause and the solution method when the safety device operates. Error Code: When an abnormal condition occurs, an error code appears and the alarm lamp lights in the controller, the buzzer sounds simultaneously. -
Page 40: Trouble Shooting
The power supply voltage is lower than the proper value. In the case if the error other than listed above occurred, turn off the power switch and primary power source immediately. Contact the shop of your purchase or nearest Yamato Scientific Service Office. -
Page 41: After Service And Warranty
If the failure occurs, stop the operation, turn OFF the power switch, and unplug the power plug. Please contact the sales agency that this unit was purchased, or the Yamato Scientific's sales office. < Check following items before contact >... -
Page 42: Specification
Specification SI401 Model SI601 Category / General name Instrument 3 Medical Sterilizer / Drying Sterilizer Temperature 2deg (Middle of furnace, Set temp.: 260℃) adjustment accuracy Temperature 20deg (Set temp.: 260℃) distribution accuracy Approx. 70min. (Room temp. to 260℃) Temperature rise time Temperature fall time Approx. -
Page 43: Wiring Diagram
Wiring Diagram (Common for SI401/601) Symbol Part name Symbol Part name Earth leakage breaker CONT Control board Terminal block Display circuit board H1,2 Heater Sensor for control Main relay Sensor for overheating prevention Breakerless relay Current transformer Transformer... -
Page 44: Replacement Parts Table
Replacement Parts Table (Common for SI401/601) Part Name Specification Manufacturer Code No. 1160030049 Sensor NL-201TC-M2701 K single Yamato Scientific 1020000048 VS4 PLANAR board Yamato Scientific 1020000051 VS4 display circuit board Yamato Scientific 1130000009 Tough card 50mm Yamato Scientific 2050000019 Main relay... -
Page 45: Reference
Reference List of Dangerous Substances Never use explosive substances, flammable substances and substances that include explosive or flammable ingredients in this unit. EXPLOSIVE Ethylene glycol dinitrate (nitro glycol), Glycerin trinitrate (nitroglycerine), Cellulose nitrate (nitrocellulose), and other explosive nitrate esters Trinitrobenzene, Trinitrotoluene, Trinitrophenol (picric acid), and other explosive EXPLOSIVE: nitro compounds Acetyl hidroperoxide (peracetic acid), Methyl ethyl ketone peroxide, Benzyl... - Page 48 Responsibility Please follow the instructions in this document when using this unit. Yamato Scientific has no responsibility for the accidents or breakdown of device if it is used with a failure to comply. Never conduct what this document forbids. Unexpected accidents or breakdown may result in.
