Summary of Contents for Apera Instruments ZenTest PC60-Z

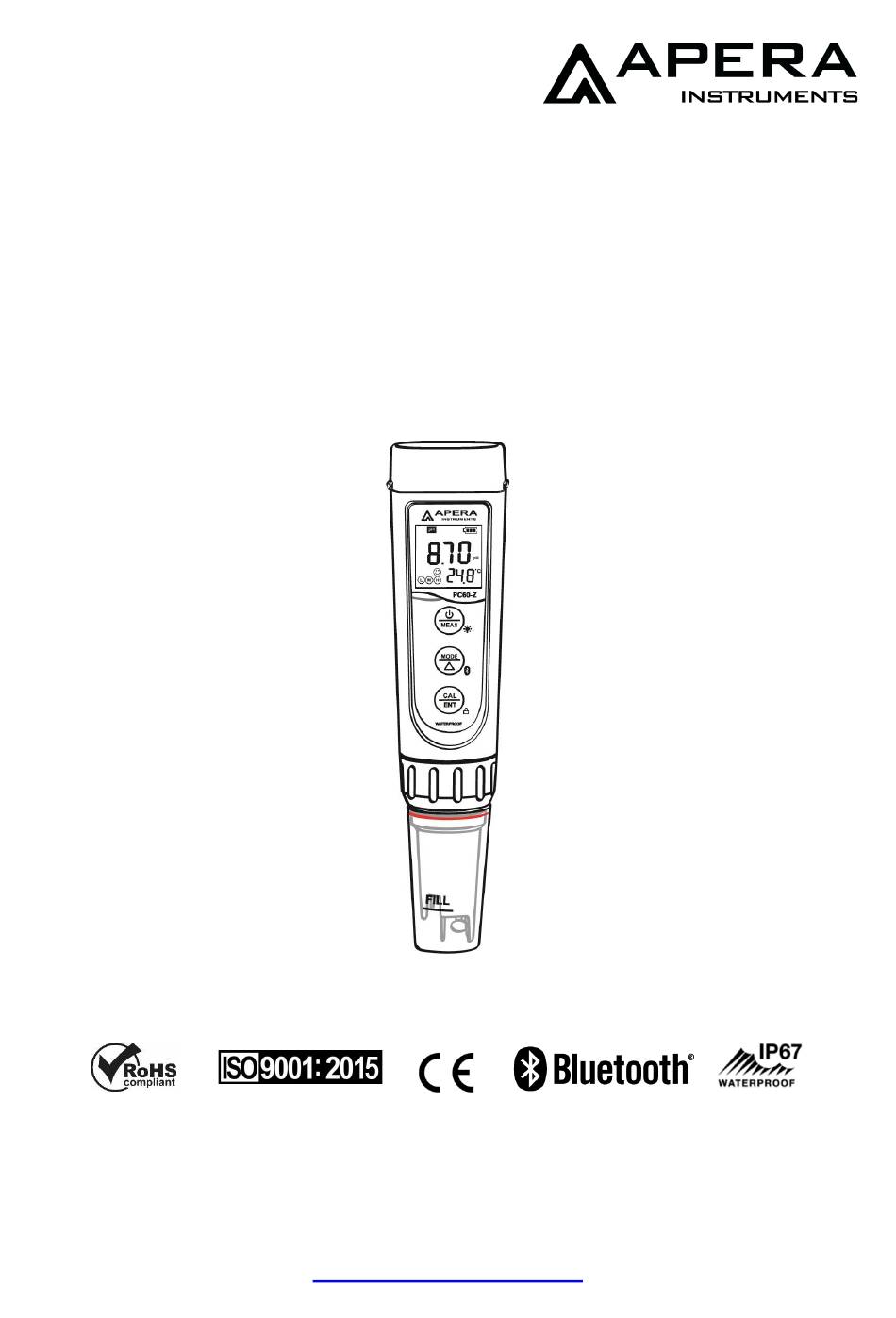

- Page 1 SKU:AI3719 ZenTest™ PC60-Z Smart 7-in-1 Tester (pH/Cond./TDS/Salinity/Resistivity/ORP/Temp.) Instruction Manual APERA INSTRUMENTS (Europe) GmbH www.aperainst.de - 1 -...
-
Page 2: Table Of Contents
Contents 1. Introduction ........................- 3 - 2. What’s in the Kit ......................- 4 - 3. Battery Installation ......................- 4 - 4. Keypad Functions ......................- 5 - 5. Preparation before Use ....................- 5 - 6. pH Calibration ........................- 6 - 7. -
Page 3: Introduction
1. Introduction Thank you for choosing Apera Instruments PC60-Z Smart Multi-Parameter Tester. Please carefully read this manual before using the product. Search “zentest smart” in Apple App Store or Google Play App Store to download the latest App for your tester. Turn on the Bluetooth of your phone, go to ZenTest™ App, tap on the upper right corner, then select your tester to connect. -
Page 4: What's In The Kit
The screen turns red when alarm Alarm display and alarm values can be preset for each Alarm triggered; cannot be parameter setup Manual or Auto. Datalogger; notes can be added to saved Datalogger N/A data Data Share data via Email Output 2. -
Page 5: Keypad Functions
4. Keypad Functions ■ Short press------ < 2 seconds ,Long press------- > 2 seconds Battery Cap 1. When turned off, short press to turn on the tester; long press to enter parameter setting. LCD Display 2. In calibration mode or parameter setting, short press to return to measurement mode. -
Page 6: Ph Calibration
6. pH Calibration Short press to turn on the meter; rinse the probe in distilled water, Shake off excess water Pour certain amount of pH 7.00 and pH 4.00 buffer solution into the corresponding calibration bottles (to about half volume of the bottle); Long press to enter calibration mode;... - Page 7 6.8 For the self-diagnosis information, please refer to the table below: Self-Diagnosis Symbol Potential problems and how to fix information 1. Make sure the probe is fully immersed in the calibration solution. 2. Check if calibration solution is expired or polluted. 3.
-
Page 8: Ph Measurement
7. pH Measurement How to take pH measurements Short press to turn on the tester. Rinse the probe in distilled water, shake off excess water. Insert the probe in your sample solution, make a quick stir and hold still. Record the reading when it is stabilized ( appears and stays on screen). - Page 9 Calibration Indication Icon Calibration Standards Measuring Range 84 μS/cm 0 - 200 μS/cm 1413 μS/cm 200 - 2000 μS/cm 12.88 mS/cm 2 – 20 mS/cm For conductivity calibration solutions, we recommend that users replace new solutions after 5 times of use to keep the standard solution’s accuracy. Do NOT pour the used calibration solutions back into the solution bottles in case of contamination.
-
Page 10: Conductivity Measurement
9. Conductivity Measurement How to Measure Conductivity, TDS, Salinity, and Resistivity Short press to turn on the tester. Rinse the probe in distilled water and dry it. Dip the probe into your sample solution, make a quick stir, and hold still. Record the reading after it is fully stabilized ( comes up and stays). -
Page 11: Orp Measurement
10. ORP Measurement ORP stands for Oxidation-Reduction Potential, measured in mV. It’s also called redox. ORP is a measure of the cleanliness of water & its ability to break down contaminants. A separate ORP probe (ORP60-DA) needs to be installed to be able to measure ORP. Power on the PC60-Z tester, unscrew the original probe, and install the ORP60-DA probe, then the tester will automatically switch to ORP measurement mode (Refer to Section 14 for how to replace a probe). -
Page 12: Parameter Setting
13. Parameter Setting Table of Settings Symbol Parameter Setting Contents Content Factory Default ˚C – ˚F ˚F Temperature Unit 5-20 seconds – Off Select automatic lock 1-8 minutes – Off Automatic Backlight Off 10-20 minutes – Off Automatic Power Off USA –... -
Page 13: Technical Specifications
4) Auto. Power off (P04) ─ The auto. power off time can be set to 10 to 20 minutes. For example, if 15 minutes is set, the meter will automatically shut down after 15 minutes if no operation; when “Off” is set, the auto. power off function will be turned off. Long press to manually shut down the meter. -
Page 14: Icons And Functions
15. Icons and Functions Self-Diagnosis Calibrated points Er1, Er2, Er3, Er4,Er5, Er6 Symbol Stable reading Waterproof Rating IP67, floats on water indicator Reading Lock HOLD Power DC3V, AAA batteries*4 ＞200 Hours Bluetooth Signal Battery Life White: Measurement; Low power reminder Backlight Green: Calibration;... - Page 15 Trouble Reason How to fix Power on the meter, calibrate pH 7 first, then pH 4. Incorrect standard After pH 4 is calibrated, if you want to calibratepH 7 solutions again, you need to reboot the tester. Replace with fresh and clean standard calibration Poor quality standard solutions made by legitimate scientific instrument solutions...
-
Page 16: Warranty
We warrant this instrument to be free from defects in material and workmanship and agree to repair or replace free of charge, at option of APERA INSTRUMENTS (Europe) GmbH, any malfunctioned or damaged product attributable to responsibility of APERA INSTRUMENTS (Europe) GmbH for a period of TWO YEARS (SIX MONTHS for the probe) from the delivery.
