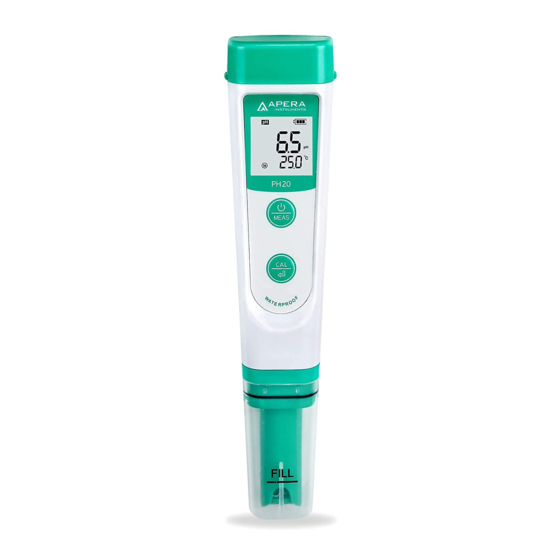

Apera Instruments PH20 Instruction Manual
Value ph tester
Hide thumbs
Also See for PH20:
- User manual (16 pages) ,
- Instruction manual (9 pages) ,
- User manual (8 pages)
Subscribe to Our Youtube Channel
Related Manuals for Apera Instruments PH20
Summary of Contents for Apera Instruments PH20

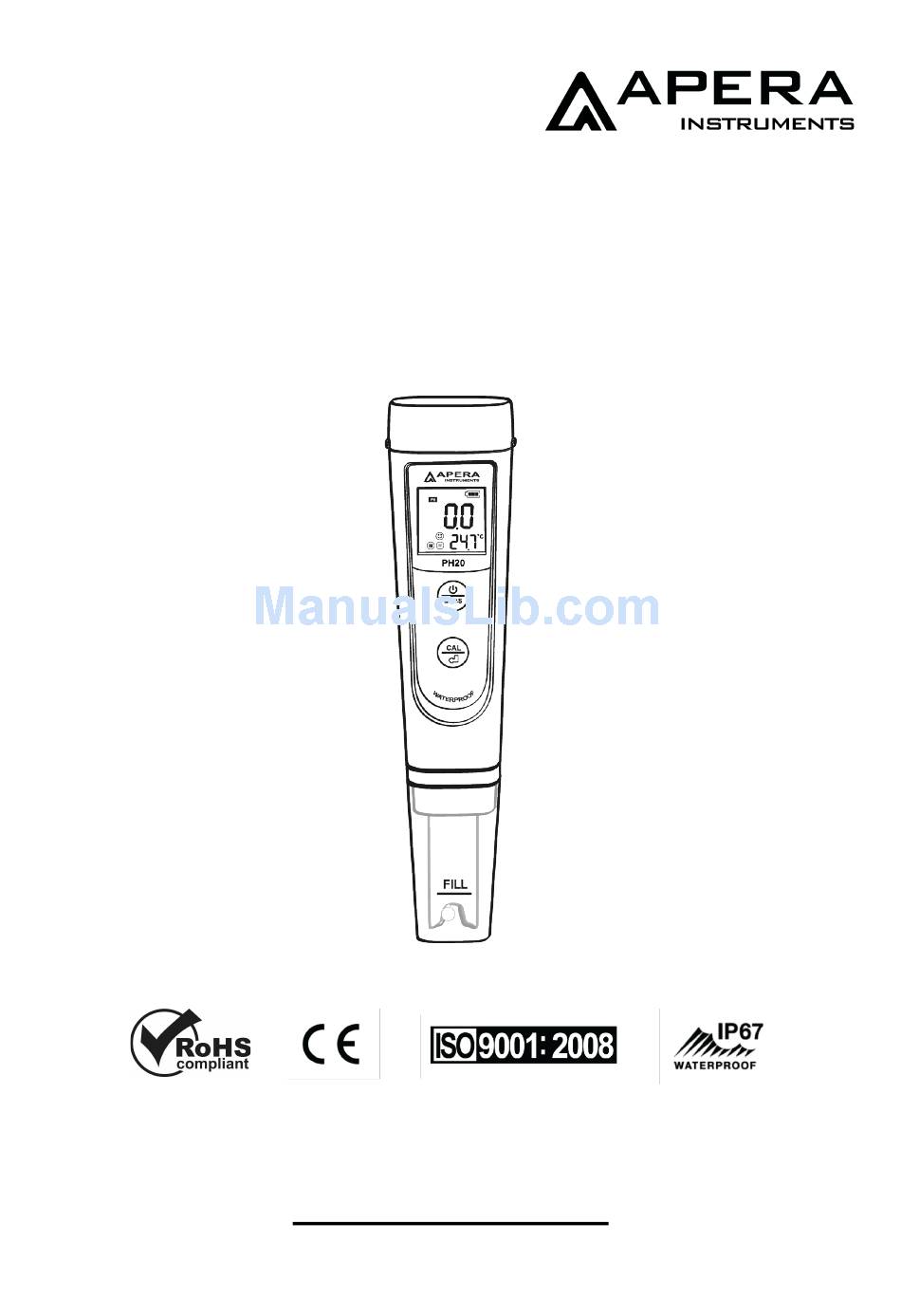

- Page 1 PH20 Value pH Tester Instruction Manual APERA INSTRUMENTS, LLC www.aperainst.com v 3.4...
- Page 2 1. Battery Installation Please install batteries according to the following steps. *Please note the correct direction of battery installation: The Positive Side (“+”) OF EVERY SINGLE Battery MUST FACE UP. (WRONG INSTALLATION OF BATTERIES WILL CAUSE DAMAGE TO THE TESTER AND POTENTIAL HAZARDS!) 2. Keypad Functions ■Short press------- < 2 seconds ■Long press-------- > 2 seconds...
- Page 3 3. Complete Kit Diagram - 2 Things needed in addition to what’s in the box A clean cup, distilled water (8-16oz), and tissue papers for rinsing and drying the probe. 4. Calibration 4.1 If it’s first time use or the tester hasn’t been used for a long time, pour some pH 4.00 solution to the Fill line in the probe cap, soak probe for about 15 minutes to hydrate the pH sensor. 4.2 Short press to turn on. Rinse in distilled water; shake the meter in the air and use tissue paper to dap off excess water. 4.3 Long press to enter calibration mode; Short press to exit. 4.4 Insert the probe in the 7.00 pH calibration solution; Stir gently; leave it to stand; Wait for the smiley face to appear and stay on the screen (see Diagram 3); short press to complete 1 point calibration, tester returns to measurement mode;...
- Page 4 to stand; wait for the smiley face to appear and stay on the screen; then short press to complete the 2 point calibration, tester returns to measuring mode, calibration icons display on bottom left side of LCD. ■ Notes a) Tester will automatically recognize pH buffer solution, users can choose calibration points: 1 point, 2 points, or 3 points. But the 1st point calibration must be in calibration solution of 7.00 pH, then followed by 2nd or 3rd point calibration. For details, please refer to the following table: Calibration Recommended Accuracy Calibration Solution Indication icon and Range 1-point 7.00 pH Accuracy ≥ 0.1pH Calibration Measuring Range <7.0 7.00 pH and 4.00 pH 2-point Calibration Measuring Range>7.0 7.00 pH and 10.01 pH...
- Page 5 ■ Notes n If you see some white crystalline solid leaked out of the pH probe, that’s the reference solution (3M KCL) inside the probe. It is NOT a sign of any defective issue. It is a normal phenomenon when the probe is stored dry for a period of time. It proves that the junction of the probe is working well. Users can simply rinse the probe in distilled water to remove the solids and use the tester as usual. n After each test, users should rinse the pH probe thoroughly with distilled water or purified water. n For the premixed pH calibration buffer solutions, we recommend replacing them after 10 to 15 times of use to keep its accuracy. n This meter will NOT give accurate or stable pH readings when testing distilled or deionized water. This is because distilled or deionized water do not have enough ions present for the electrode to function properly. To measure distilled or deionized water’s pH, users need to use a specialized instrument. Contact us at info@aperainst.com for more details. When testing purified water like spring water or drinking water, it will take longer for the readings to get stabilized (typically 3-5 minutes) because there is very few ions left to be detected by the sensor in those purified water. n Do NOT store probe in purified water because that will cause permanent damage to the pH probe. Purified water is only recommended for rinsing the probe. The probe should be stored in 3M KCL pH electrode storage solution (SKU AI1120) for best accuracy or stored in the pH 4.00 calibration solution as an alternative if storage solution is not handy. n Do NOT use any other brand’s storage solutions because different chemicals may be used and potential permanent damage could be caused to the meter. Storing the probe dry will NOT cause permanent damage to it. It will only temporarily cause the probe to lose its sensitivity, which can always be restored by soaking in the storage solution or pH4.00 calibration solution. 6. Parameter Setting 6.1 Setting Schedule Prompt Factory Parameter Setting Items Code Mark Default Select pH buffer...
- Page 6 6.2 Parameter Setting When turned off, long press to enter setup → short press to switch P1-P2-P3→ Short press , parameter flashing→short press to choose, short press to confirm parameter selection→Long press to go back to measurement mode. 6.3 Parameter Setting Instruction Select standard pH buffer solution (P1): There are two options of standard buffer solutions: USA series and NIST series as the following chart: pH standard buffer solution series Icons USA series...
- Page 7 * The 1 point calibration must be 7.00 pH. Perform the 2 point calibration (4.00 pH) immediately after the 1 point. Do NOT turn off the meter before you conduct 2 point calibration. If the meter is turned off after 1 point calibration, users will need to restart the calibration process with the 7.00 pH and the 4.00 pH following after.
- Page 8 9. Warranty We warrant this instrument to be free from defects in material and workmanship and agree to repair or replace free of charge, at option of APERA INSTRUMENTS, LLC, any malfunctioned or damaged product attributable to responsibility of APERA INSTRUMENTS, LLC for a period of TWO YEARS (SIX MONTHS for the probe) from the delivery. This limited warranty does not cover any damages due to: Transportation, storage, improper use, failure to follow the product instructions or to perform any preventive maintenance, modifications, combination or use with any products, materials, processes, systems or other matter not provided or authorized in writing by us, unauthorized repair, normal wear and tear, or external causes such as accidents, abuse, or other actions or events beyond our reasonable control. APERA INSTRUMENTS, LLC Address: 6656 Busch Blvd, Columbus Ohio 43229 Tel: 1-614-285-3080 Email: info@aperainst.com Website: www.aperainst.com...
