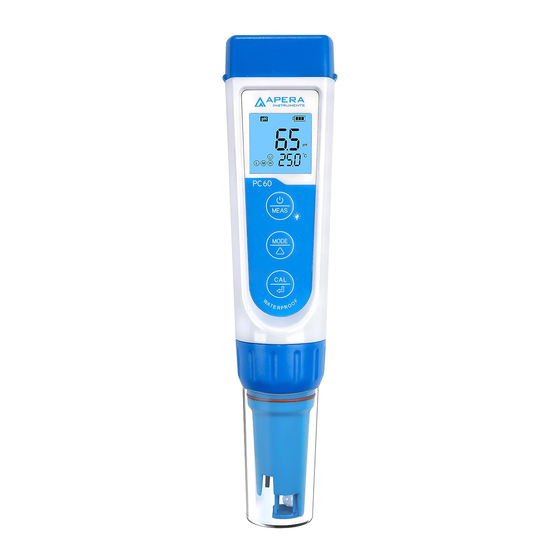

Apera Instruments Premium PC60 Series User Manual
5-in-1 tester
Hide thumbs
Also See for Premium PC60 Series:
- Instruction manual (12 pages) ,
- User manual (12 pages) ,
- User manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Apera Instruments Premium PC60 Series
Summary of Contents for Apera Instruments Premium PC60 Series

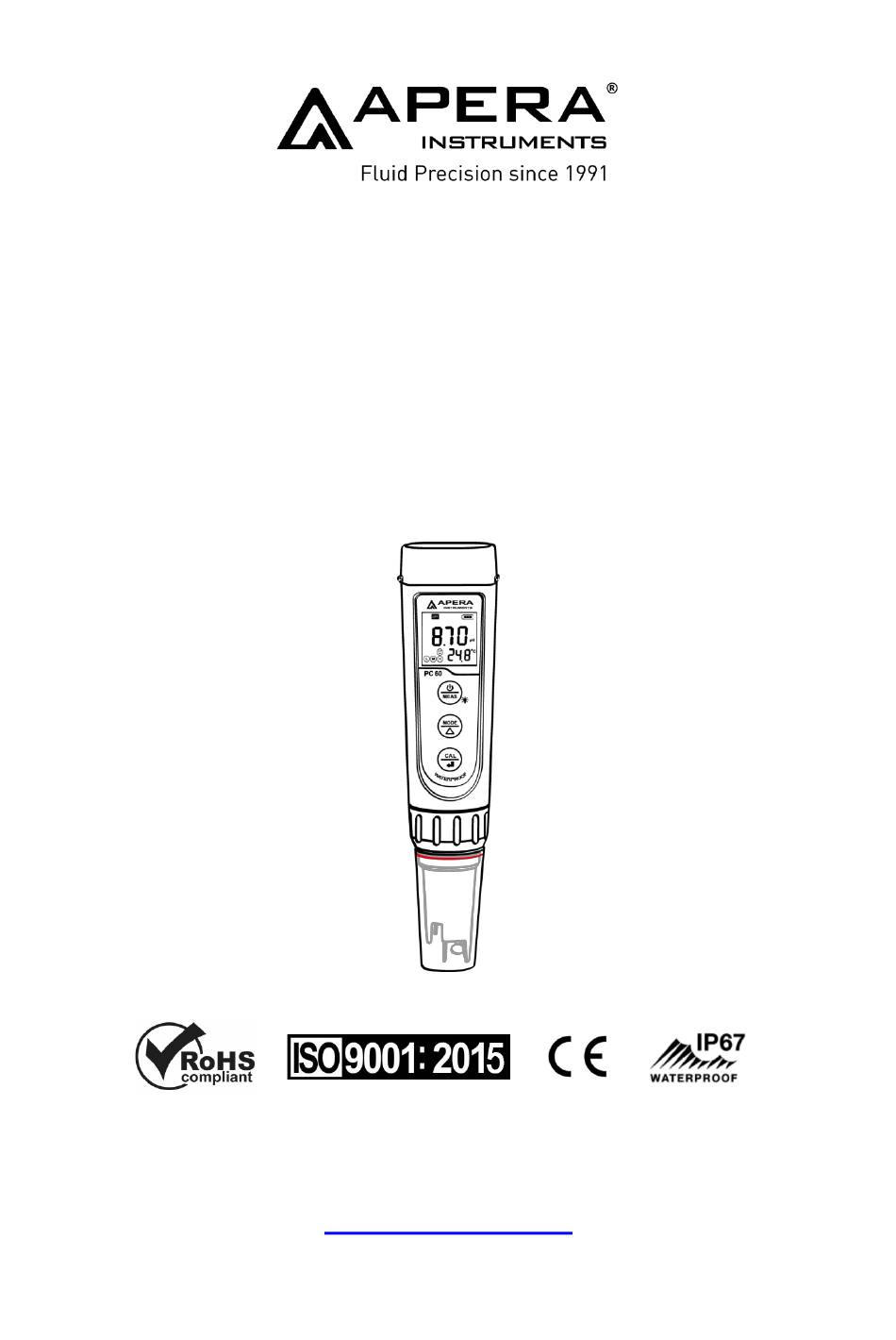

- Page 1 Premium Series PC60 5-in-1 Tester (pH/Conductivity/TDS/Salinity/Temp.) User Manual APERA INSTRUMENTS, LLC aperainst.com V7.7...
-
Page 2: Table Of Contents
Thank you for purchasing Apera Instruments PC60 Premium Multi-parameter Tester. Please read this manual before use in order to properly use and maintain the product. For video tutorials, please go to support.aperainst.com Table of Contents What’s in the Kit ........................3 Keypad Functions ........................ -
Page 3: What's In The Kit
What’s in the Kit pH calibration vials Conductivity calibration vials Keypad Functions ■ Short press------ < 2 seconds, Long press------- > 2 seconds Battery 1.Short press to turn on the tester and long press to turn off the tester. Display 2.When turned off, long press to enter parameter setting. -
Page 4: Preparation Before Use
Preparation Before Use Pull out the battery insulation slip, and take off the probe cap. Rinse off the probe in pure water (preferably distilled or deionized water. RO water or tap water is the alternative) , then shake off excess water. Perform calibration. - Page 5 4.1.6 To calibrate 2 point, use 4.00 pH buffer and repeat Step 5.1.3 to 5.1.5 (Do NOT turn off the tester after you finish pH 7 calibration). will display next to , indicating a successful 2-point calibration (low and middle points). 4.1.7 If necessary (target pH>8.00), calibrate 3rd point using 10.01 standard pH buffer and repeat Step 5.1.3 to 5.1.5,...
-
Page 6: Ph Measurement
pH Measurement How to take pH measurements Short press to turn on the tester. Rinse the probe in distilled water, shake off excess water. Insert the probe in your sample solution, make a quick stir and hold still. Record the reading when it is stabilized appears and stays on screen). -
Page 7: Conductivity Measurement
Calibration Indication Icon Calibration Standards Measuring Range 84 μS/cm 0 - 200 μS/cm 1413 μS/cm 200 - 2000 μS/cm 12.88 mS/cm 2 - 20 mS/cm For conductivity calibration solutions, we recommend that users replace new solutions after 5 times of use to keep the standard solution’s accuracy. -
Page 8: Probe Cleaning
Temperature Temperature Solution Solution compensation factor compensation factor NaCl 2.12%/˚C 10% Hydrochloric acid 1.32%/˚C 5% NaOH 1.72%/˚C 5% Sulfuric acid 0.96%/˚C Dilute ammonia 1.88%/˚C Probe Cleaning The tester is only as accurate as the probe is clean. Always thoroughly rinse off the probe before and after each measurement with pure water in a container or with a wash bottle. -
Page 9: Technical Specifications
10.1 Parameter Settings Tutorial When turned off, long press to enter parameter settings → Short press to switch P1-P2-P3 …P8 → Short press to select parameter (starts flickering) → Short press to change parameter → Short press to confirm the change → Long press to return to measurement mode. -
Page 10: Probe Replacement
0 to 200.0 μS, 200 to 2000 μS, Range 2 to 20.00 mS/cm Resolution 0.1/1 μS, 0.01 mS/cm Conductivity Accuracy ±1% F.S Calibration Points 1 to 3 points Range 0.1 ppm to 10.00 ppt TDS Factor 0.40 to 1.00 Salinity Range 0 to 10.00 ppt Range... -
Page 11: Troubleshooting Guide
14 Troubleshooting Guide Trouble Reason How to fix Pressing too soon Wait for to stay on the screen before pressing (showing Incorrect standard solutions Reboot tester, calibrate pH 7 first, then pH 4. For details refer to (showing Section 5.2 (a) Poor quality standard solutions Replace with fresh and clean standard calibration solutions made (showing... -
Page 12: Warranty
We warrant this instrument to be free from defects in material and workmanship and agree to repair or replace free of charge, at option of APERA INSTRUMENTS, LLC, any malfunctioned or damaged product attributable to responsibility of APERA INSTRUMENTS, LLC for a period of TWO YEARS (SIX MONTHS for the probe) from the delivery.
