real living BQ092-1323 Assembly Instructions Manual

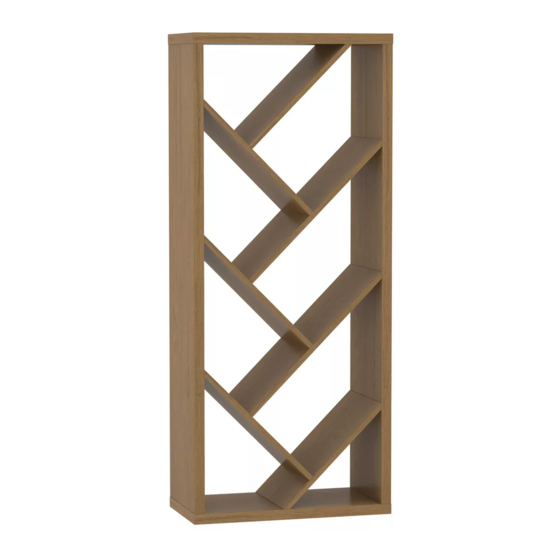

Wood grain diagonal bookcase
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BQ092-1323 and is the answer not in the manual?

Questions and answers

Related Manuals for real living BQ092-1323

Summary of Contents for real living BQ092-1323

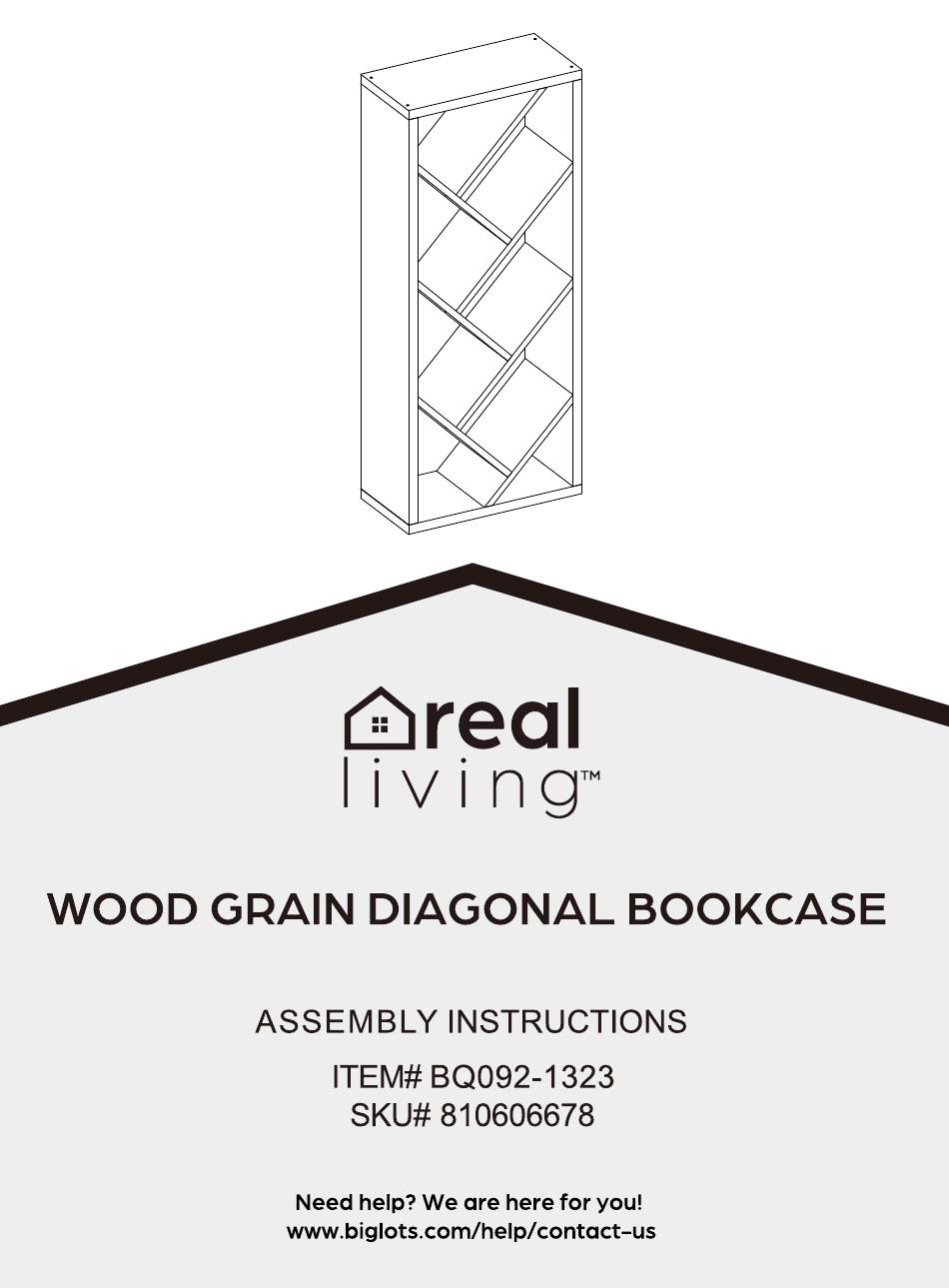

  • Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instructions before starting Clear a flat covered space to begin Two adults are recommended for assembly Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product Number of the hardware corresponds to its number in the package Helpful hints provided along the way WARNINGS:...
  • Page 3 PARTS LIST DESCRIPTION Top Panel Left Side Panel Right Side Panel Inner Right Upper Panel 3pcs Inner Left Panel 2pcs Inner Right Middle Panel Inner Right Bottom Panel Bottom Panel HARDWARE LIST PARTS DESCRIPTION Wooden Dowel 34pcs 8pcs Bolt 14pcs Screw Allen Wrench 8pcs...
  • Page 4 HELPFUL HINTS • A Phillips Screwdriver and a flat head screwdriver will be needed for assembly and are not provided. • Separate parts before starting. 1 x 2 3 x 2 1. Insert Wooden Dowel (1) into the flat Edge of Inner Right Upper Panel (D).
  • Page 5 1 x 2 3 x 2 1. Insert Wooden Dowel (1) into the flat Edge of Inner Left Panel (E). 2. Align the Wooden Dowel (1) in Inner Left Panel (E) with the holes on Inner Right Middle Panel (F) and slide into place. 3.
  • Page 6 1 x 12 6 x 1 1. Place the Left Side Panel (B) and Right Side Panel (C) on the ground. 2. Place a drop of Glue (6) into the holes on Left Side Panel (B) and Right Side Panel (C). 3.
  • Page 7 6 x 1 1. Drop the Glue (6) into the holes on the edge of Inner Right Bottom Panel (G) and Inner Right Middle Panels (F). 2. Align the Wooden Dowel (1) in Right Side Panel (C) with the holes on Inner Right Bottom Panel (G) and Inner Right Middle Panels (F) and slide into place.
  • Page 8 1 x 6 2 x 4 4 x 1 5 x 4 1. Insert Wooden Dowel (1) into the Edge of Left Side Panel (B), Right Side Panel (C) and Inner Right Bottom Panel (G). 2. Align the Wooden Dowel (1) in Left Side Panel (B), Right Side Panel (C) and Inner Right Bottom Panel (G) with the holes on Bottom Panel (B) and slide into place.
