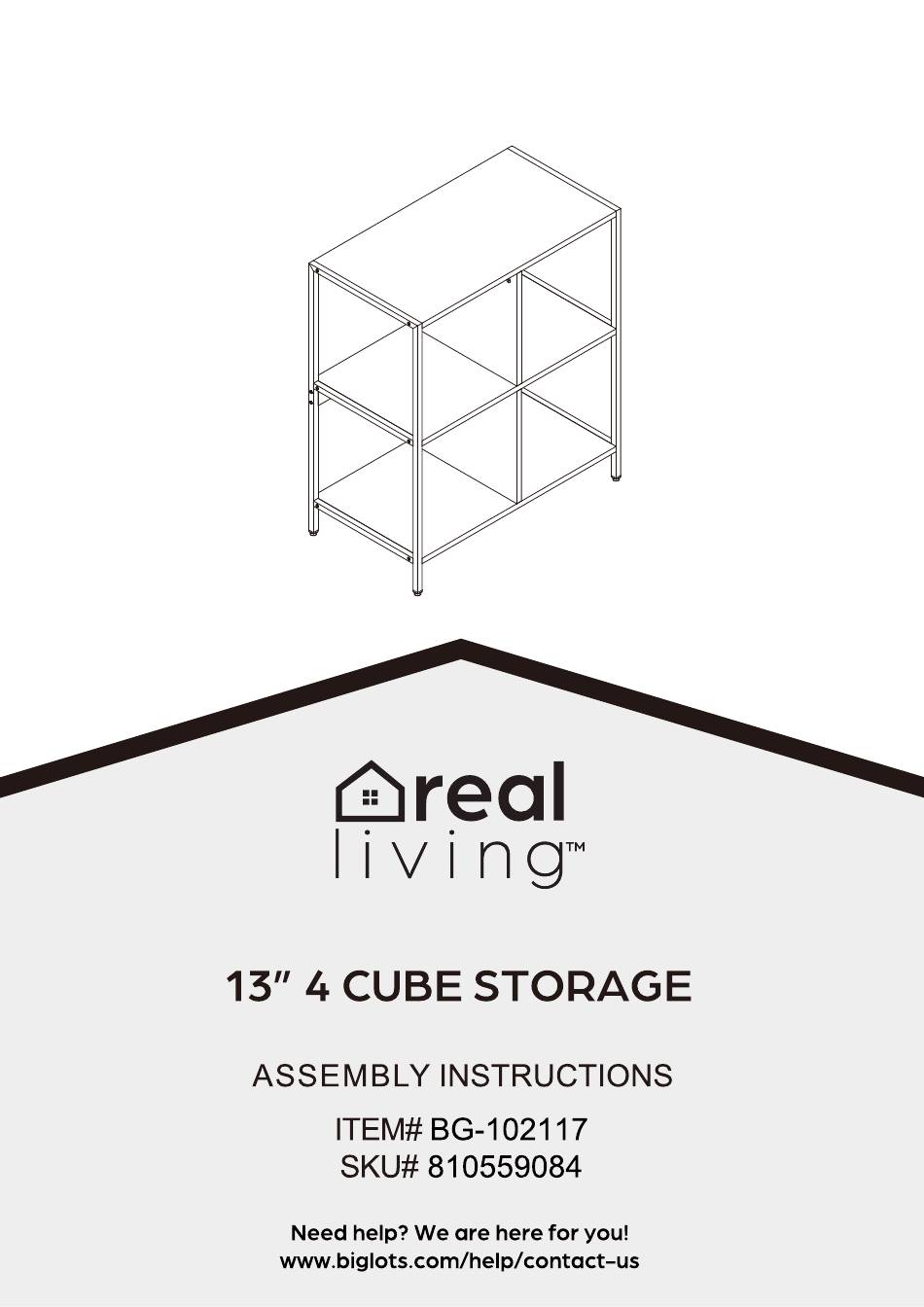

13" 4 cube storage

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-102117 and is the answer not in the manual?

Questions and answers

Summary of Contents for real living BG-102117

  • Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instruc�ons before star�ng Clear a flat covered space to assemble We recommend two people for assembly Note that hardware required is provided for every step Pay a�en�on to orienta�on Le�er of the part corresponds to a s�cker on the product Number of the hardware corresponds to its number in the package Helpful hints provided along the way MAINTENANCE:...
  • Page 3 PARTS LIST Side Frame Top Panel Upper Vertical Panel Middle Panel Bottom Vertical Panel Back Panel Bottom Panel HARDWARE LIST Adjuster Phillips Screw Cam Bolt Cam Lock Wood Dowel Phillips head screw Driver...
  • Page 4 HELPFUL HINTS • Separate parts before starting HOW TO INSTALL CAM LOCK Alignment: The cross points towards the panel with the bolt. Place the other panel over the panel with the bolt, then insert the cam lock to join the bolt’s head. Turn the cam lock clockwise.
  • Page 5 STEP 1 Insert Cam Bolt (3) into Top Panel (B). Fully Tighten. Assembled View: STEP 2 Insert Wood Dowel (5) into Upper Vertical Panel (C). Allign Cam Bolt (3) in Top Panel (B) with the holes in the edge of Upper Vertical Panel (C) and slide into place. Insert Cam Lock (4) into the indicated holes in Upper Vertical Panel (C) and fully tighten.
  • Page 6 STEP 3 Align Wood Dowel (5) in Upper Vertical Panel (C) with the holes in Middle Panel (D) and slide into place. Assembled View: STEP 4 Align Wood Dowel (5) with the holes in Bottom Vertical Panel (E) and slide into place. Assembled View:...
  • Page 7 STEP 5 Attach Back Panel (F) to Bottom Vertical Panel (E) with Phillips Screw (2). Assembled View: STEP 6 Attach Bottom Panel (G) to Bottom Vertical Panel (E) with Phillips Screw (2). Assembled View:...
  • Page 8 STEP 7 Insert Adjuster (1) into Side Frame (A). Assembled View: STEP 8 Attach Side Frame (A) to the parts assembled in Step 6 with Phillips Screw (2). Assembly is now complete. Assembled View:...
