Hytronik HIM30 Installation And Instruction Manual

HIGH BAY DUAL SENSE SENSOR HIM30
1. Technical Specifications
Product type On/Off control dual sense sensor
Operating voltage 220-240VAC 50/60Hz
800VA(Capacitive)
Rated load
1000W(Resistive)
Power consumption < 1W
o
Detection angle 360
Installation Height : 15m (forklift) / 12m (human)
Detection Range (Ø) : HF: Ø = 26m (forklift) / 16m (human)
Detection area (Max.)*
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Daylight threshold 2 ~ 500Lux, Disable
Warmming up time 30s
o
Operating temperature -35 C ~ +50
IP rating IP65
Sensor mode HF, PIR, HF+PIR, HF / PIR
2. Rotary Switch Settings
A rotary switch is built inside the sensor for
scene selection / fast programming. Total of
16 channels available:
Detection
Channel
range
0 100%
1 100%
2 100%
3 100%
4 100%
5 100%
6 100%
7 100%
8 100%
9 100%
A 100%
B 75%
C 50%
D 100%
100%
E
F
100%
Note: settings can also be changed by remote control HRC-11. The last action controls.
3. Functions
3.1 On/off Control
This sensor is a motion switch, which turns on the light upon detection of motion, and turns off after a
pre-selected hold-time when there is no movement. A daylight sensor is also built in to prevent the light
from switching on when there is sufficient natural light.
3.2 Lux Off Function
The built-in daylight sensor can read ambient natural light and switch off the fixture automatically
whenever artificial light is unnecessary (natural light lux level exceeds daylight threshold).
Note: if the stand-by time is preset at "+∞", the fixture never switches off even when natural light
is sufficient.
3.3 Load Indication
The light will flash ONCE rapidly after receiving the command from the remote controller.
Note: There is no load indication (the light will not flash) when button ON/OFF, POWER 100%
or POWER 80% is pressed.
Installation and Instruction Manual
PIR: Ø = 24m (forklift) / 20m (human)
o
C
Rotary switch preset (Please
see the location in 2. Installation)
Daylight
Hold-time
sensor
5s Disable
1min 2Lux
5min 10Lux
5min 30Lux
5min 10Lux
5min 30Lux
5min Disable
10min 2Lux
10min 10Lux
10min 30Lux
10min Disable
10min 30Lux
10min 10Lux
30min 50Lux
30min Disable
5s 2Lux

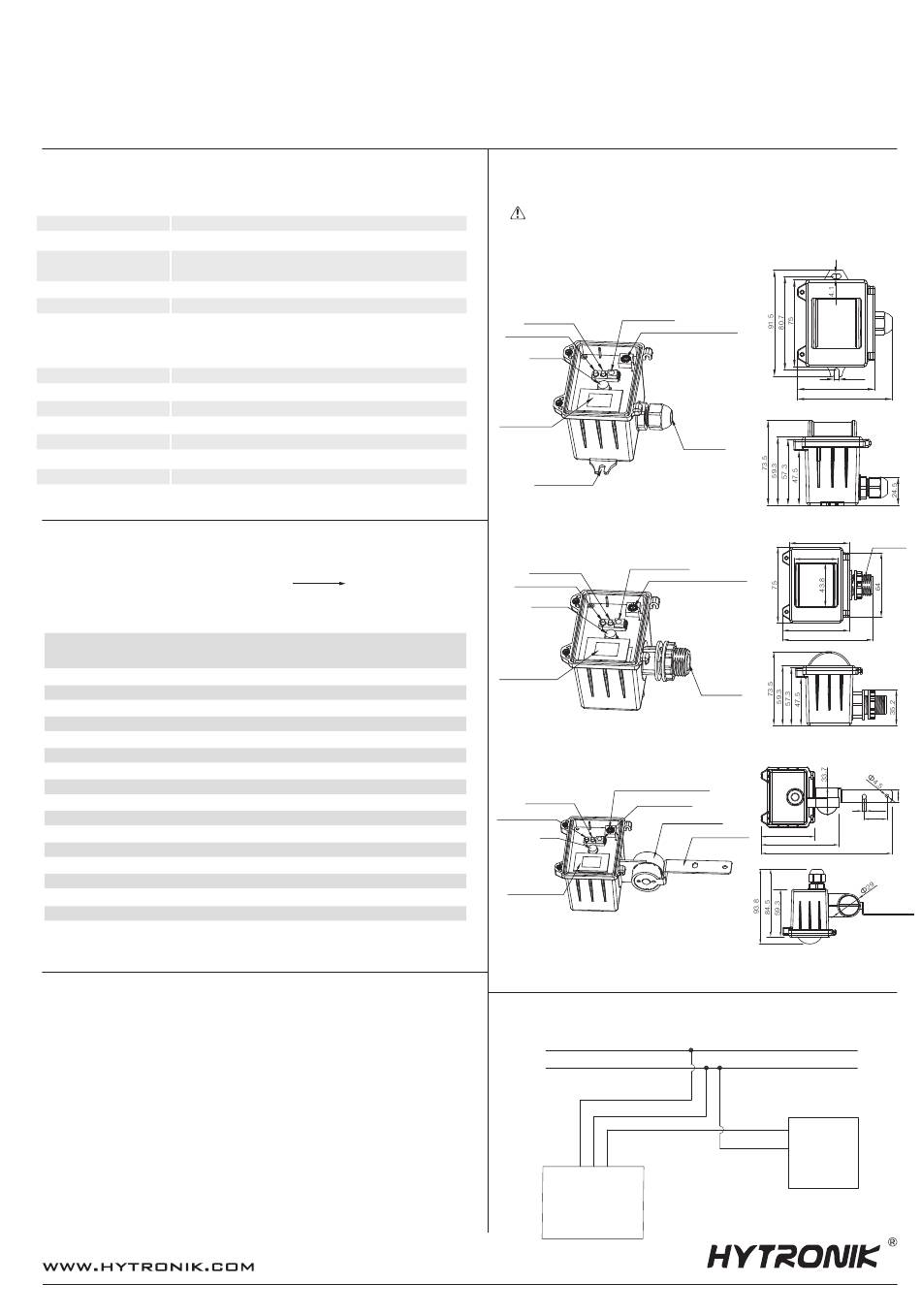

4. Installation
Warnings:
1. Installation of the sensor involves connecting it to the mains supply. This work must be
carried out by a specialist in accordance with electrotechnical regulations.
2. Disconnect power supply before installing.
A. Ceiling mount
Infrared receiver
LED indicator
Rotary switch for programing
Daylight sensor
PIR
Sensor module
Installation rack
B. Screw to the Luminaire by conduit
Infrared receiver
LED indicator
Rotary switch for programing
Daylight sensor
PIR
Sensor module
C. Attach to the shade by clamp
Rotary switch for programing
LED indicator
Infrared receiver
Daylight sensor
Angle adjustment
PIR
Sensor module
Note:We recommend the mounting distance between sensor to sensor
should be more than 2m to prevent sensors from false-triggering.
5. Wiring Diagram
L
N
Brown
Blue
Grey
HIM30
4.1
66.6
81.5
Cable entry
59.6
43
66.6
89.9
Cable entry
Luminaire clamp
66.6
96.8
163.2
L
N
LED driver
HIM30-20220802-A0
0.825"
15
4.5
28.5
