IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

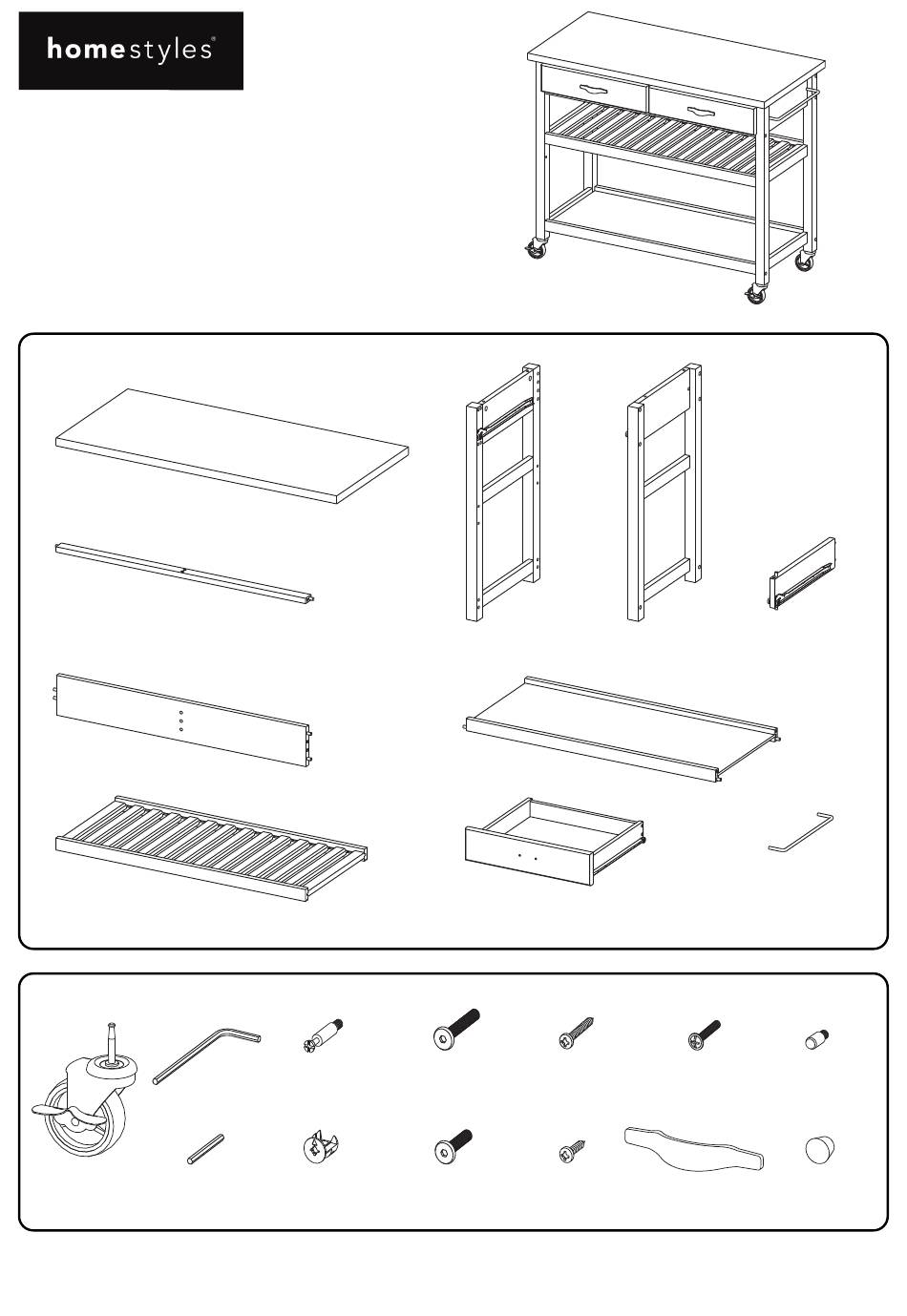

Part List
A.
Top
1 pc.
D.
Front Rail
2 pcs.
E.
Back Panel
1 pc.
H.
Shelf
1 pc.
Hardware List
Hex Wrench
1 pc.
Caster
2 Locking
2 Non-Locking
Small Hex Wrench
4 pcs.
1 pc.
Tool(s) required for assembly: Phillips screwdriver
home
521 -95
7

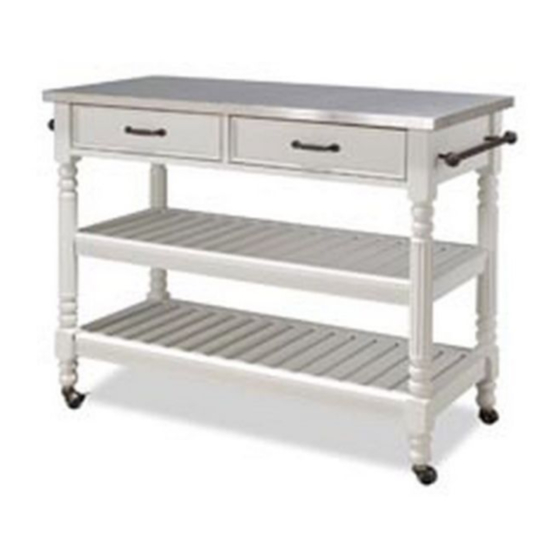

Kitchen Cart
M4x24
Cam Lock Screw
4 pcs. (+1 extra)
Cam Lock
4 pcs. (+2 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
B.
Side Frame
1 pc.
G.
Base
1 pc.
I.
Drawer
2 pcs.
Refer to later page(s) of these instructions for drawer assembly.
M6x35
M3.5x25
Head Cap Bolt
Wood Screw (long)
1 pcs. (+1 extra)
5
16 pcs. (+1 extra)
M6x25
M3.5x16
Head Cap Bolt (short)
Wood Screw (short)
2 pcs. (+1 extra)
12 pcs. (+1 extra)
C.
Side Frame
1 pc.
M4x25
Machine Screw
4 pcs.
Handle
2 pcs.
888-680-7460
F.
Divider
1 pc.
J.
Towel Bar
1 pc.
Adjustable Pin
4 pcs. (+1 extra)
Wood Plug
13 pcs. (+1 extra)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles General Line 52195
Summary of Contents for Homestyles General Line 52195
- Page 1 521 -95 Kitchen Cart IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
- Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/7 Head Cap Bolt STEP 3 Attach Front Rail (D) to unit with Head Cap Bolts, tightening bolts only halfway. Attach Base (G) to unit with Head Cap Bolts, tightening bolts only halfway. Head Cap Bolt STEP 4 Attach Side Panel (C) to unit with Head Cap Bolts, tightening b ts only halfway.
- Page 4 Assembly Instructions 4/7 Non-Locking Caster Locking Caster STEP 5 Turn unit upside down. Attach Casters to bottom of unit with Locking Casters at front. (See Figure 2) Figure 2...
- Page 5 Assembly Instructions / 5 7 STEP 6 Cam Lock Screw Place Top (A) upside down on a soft cloth. Insert Cam Lock Screws into pre-drilled holes in Top (A), then tighten. (See Figure 3) Arrow label at front Figure 3 Figure 4 Head Cap Bolt (short) Cam Lock...
- Page 6 Assembly Instructions / 6 7 Drawer (I) Wood Screw (long) Bottom STEP 8 Attach Drawer Front (I1) and Drawer Back (I2) to Drawer Side (I3) with Wood Screws (long). Attach Drawer Side (I4) to unit with Wood Screws (long). Roller at back Wood Screw (short) STEP 9 Slide Drawer Bottom (I5) into groove.
- Page 7 Assembly Instructions / 7 7 STEP 11 Slide Drawers (I) into position. Insert Adjustable Pins into side frames at desired level, then tighten. (See Figure 5) Place Shelf (H) into position. Adjustable Pin Figure 5 Wood Plug STEP 12 Cover holes with Wood Plugs.
- Page 8 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
