Homestyles 6801-20 Quick Start Manual

Homestyles 6801-20 Quick Start Manual

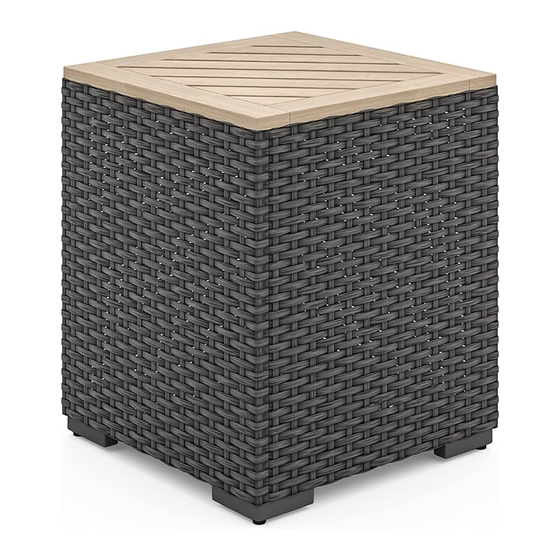

End table

Advertisement

Quick Links

IMPORTANT

Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

Part List

A.
Top
1 pc.

Hardware List

Hex Wrench
1 pc. (+1 extra)
home
6801-20
End Table
D.
Base
1 pc.
Small
Hex Wrench
1 pc.
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
B.
Panel
2 pcs.
M6x35
Head Cap Bolt
20 pcs. (+1 extra)
888-680-7460
C.
Panel
2 pcs.
E.
Foot
4 pcs.
Spring Washer
20 pcs. (+1 extra)
Flat Washer
20 pcs. (+1 extra)
