IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Cushion
1 pc.
D.
Base
1 pc.
Hardware List
Hex Wrench
1 pc. (+1 extra)
home
6800-90
Ottoman
Small
Hex Wrench
1 pc.
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
B.
Panel
2 pcs.
E.
Foot
4 pcs.
M6x35
Head Cap Bolt
22 pcs. (+1 extra)
888-680-7460
C.
Panel
2 pcs.
F.
Panel
1 pc.
Spring Washer
Flat Washer
22 pcs. (+1 extra)
22 pcs. (+1 extra)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 6800-90
Summary of Contents for Homestyles 6800-90

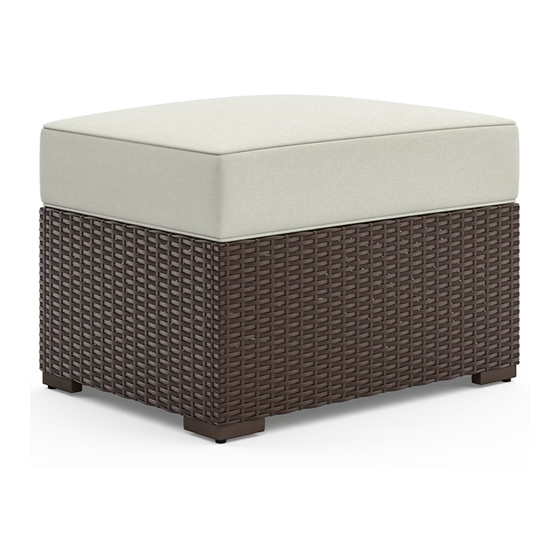

- Page 1 6800-90 Ottoman IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
- Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions / 3 6 Flat Washer Spring Washer Head Cap Bolt STEP 3 Attach Panel (C) to unit with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway. Head Cap Bolt Spring Washer Flat Washer STEP 4 Insert Head Cap Bolts, Spring Washers and Flat Washers into unit, tightening bolts only halfway.
- Page 4 Assembly Instructions / 4 6 Flat Washer Spring Washer Head Cap Bolt STEP 5 Attach Panel (B) to unit with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway. Head Cap Bolt Spring Washer Flat Washer STEP 6 Insert Head Cap Bolts, Spring Washers and Flat Washers into unit, tightening bolts only halfway.
- Page 5 Assembly Instructions / 5 6 Head Cap Bolt Spring Washer Flat Washer Figure 2 STEP 7 Attach Feet (E) to unit with Head Cap Bolts, Spring Washers and Flat Washers. (See Figure 2) Velcro Strap Velcro Strap aaaa aaaa Figure 3 STEP 8 Attach Panel (F) to Cushion (A) with velcro straps.
- Page 6 Assembly Instructions / 6 6 STEP 9 Turn unit over to its upright position. Place Cushion (A) into position. Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 4) Figure 4...
- Page 7 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
