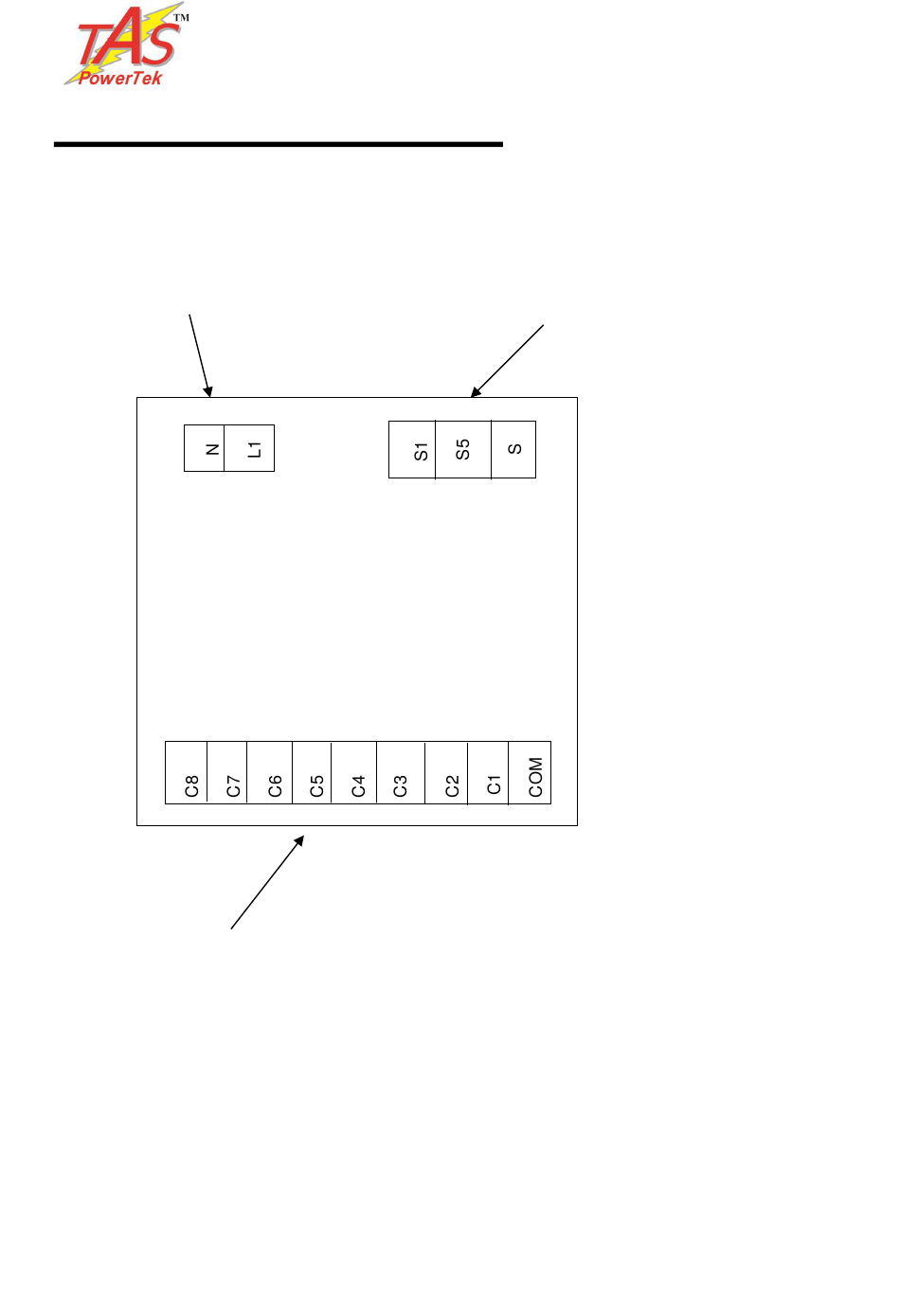

Rear side terminals

voltage, measurement current
Auxiliary & Measurement
voltage Connection
230 V, 1Phase, 2Wire
Output commands to capacitor contactors
APFC 05
COM = common,
C1...... C8 = potential free relays, maximum of up to 8 Stages,
0.5A, 230Vac, Inductive Load. F2 Fast-Blow Fuse Protected.
TAS POWERTEK PVT.LTD.
– measurement
Load CT Connection
Selectable 1A or 5A
Example: Select either
S1 ( 1A) or S5 (5A)
along with S ( common)
VERSION 1.0
- 11 -
.
Updated on: FEB. 18, 2015
