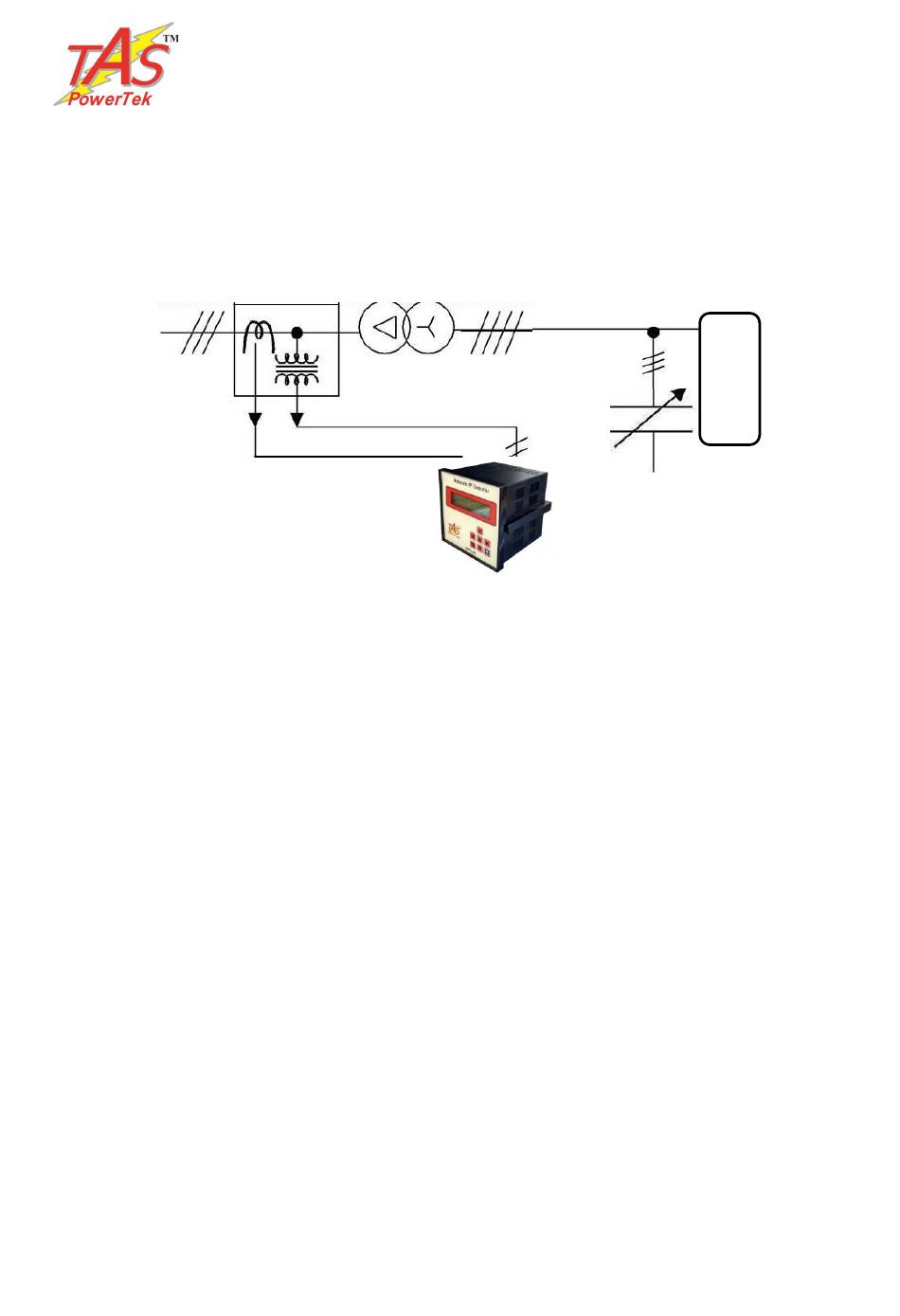

Typical wiring diagram for PF correction
HT side
LT Power Factor
compensation with HT
side feedback
As per this scheme, the load sensing CT is put at the input
of the transformer on HT side.
This scheme is preferred with LT consumers of electricity,
where the metering is carried out on HT side.
This scheme gives the compensation against magnetizing
current of the transformer. Thus, for HT metering able to
give more accurate results.
TAS POWERTEK PVT.LTD.
Scheme - 2
CT/PT on
HT side
VERSION 1.0
LT side
- 9 -
L
O
A
D
Updated on: FEB. 18, 2015
