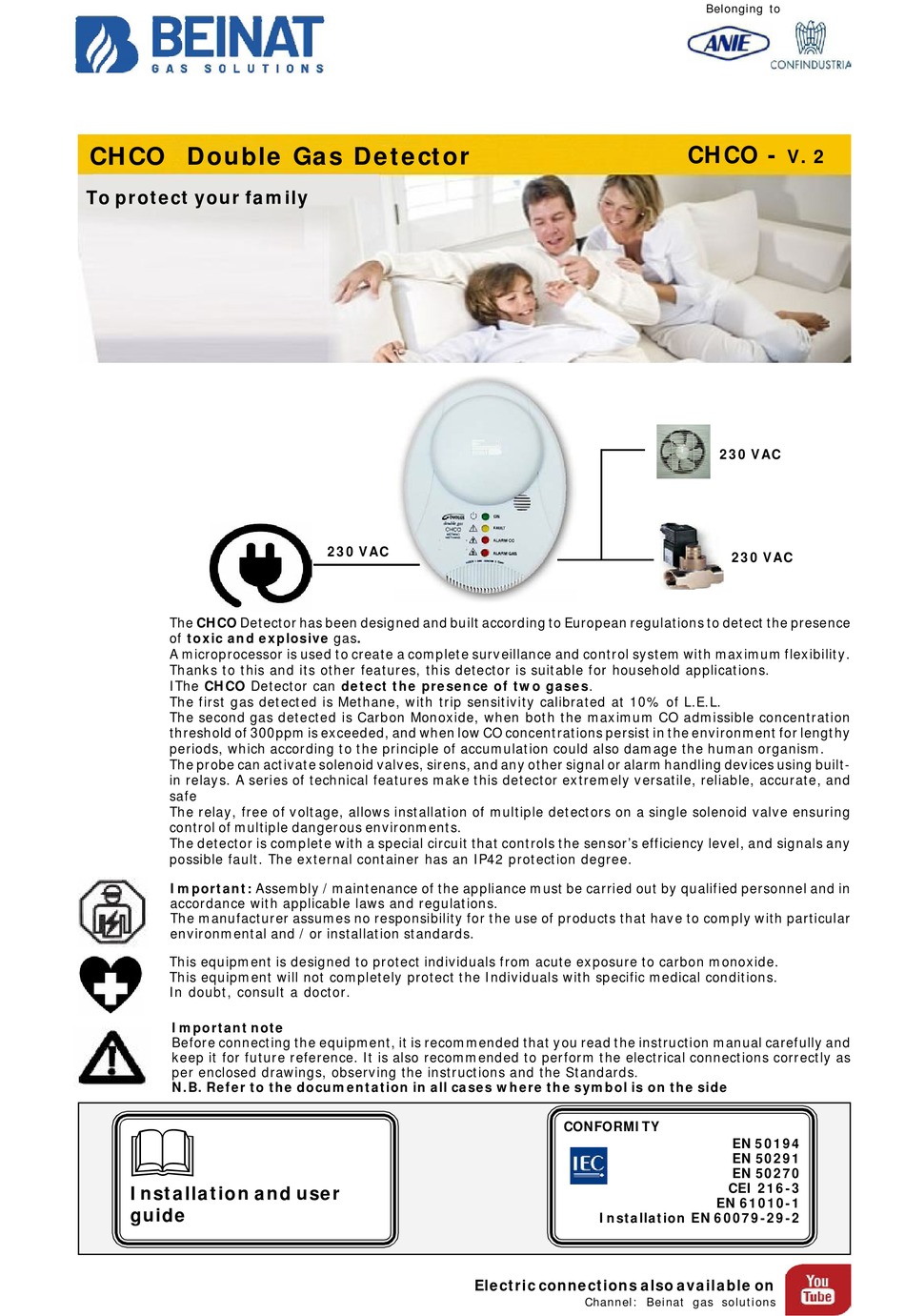

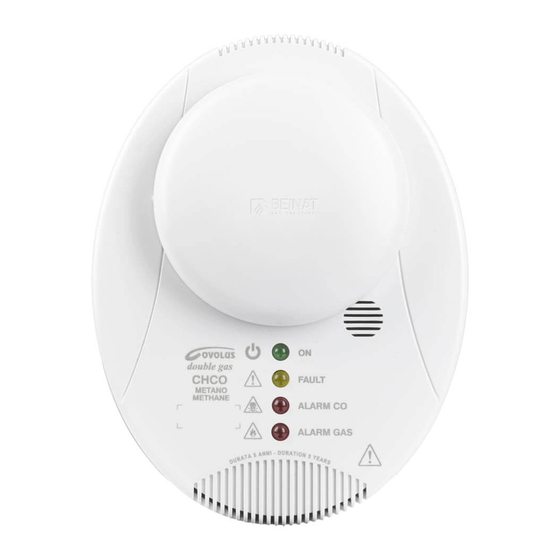

CHCO Double Gas Detector
To protect your family
The CHCO Detector has been designed and built according to European regulations to detect the presence
of toxic and explosive gas.
A microprocessor is used to create a complete surveillance and control system with maximum flexibility.
Thanks to this and its other features, this detector is suitable for household applications.
IThe CHCO Detector can detect the presence of two gases.
The first gas detected is Methane, with trip sensitivity calibrated at 10% of L.E.L.
The second gas detected is Carbon Monoxide, when both the maximum CO admissible concentration
threshold of 300ppm is exceeded, and when low CO concentrations persist in the environment for lengthy
periods, which according to the principle of accumulation could also damage the human organism.
The probe can activate solenoid valves, sirens, and any other signal or alarm handling devices using built-
in relays. A series of technical features make this detector extremely versatile, reliable, accurate, and
safe
The relay, free of voltage, allows installation of multiple detectors on a single solenoid valve ensuring
control of multiple dangerous environments.
The detector is complete with a special circuit that controls the sensor's efficiency level, and signals any
possible fault. The external container has an IP42 protection degree.
Important: Assembly / maintenance of the appliance must be carried out by qualified personnel and in
accordance with applicable laws and regulations.
The manufacturer assumes no responsibility for the use of products that have to comply with particular
environmental and / or installation standards.
This equipment is designed to protect individuals from acute exposure to carbon monoxide.
This equipment will not completely protect the Individuals with specific medical conditions.
In doubt, consult a doctor.
Important note
Before connecting the equipment, it is recommended that you read the instruction manual carefully and
keep it for future reference. It is also recommended to perform the electrical connections correctly as
per enclosed drawings, observing the instructions and the Standards.
N.B. Refer to the documentation in all cases where the symbol is on the side
Installation and user
guide
230 VAC
Electric connections also available on
Belonging to
CHCO -
230 VAC
230 VAC
CONFORMITY
EN 50194
EN 50291
EN 50270
CEI 216-3
EN 61010-1
Installation EN 60079-29-2
Channel: Beinat gas solutions
V. 2
