Frequency Selection

6 FREQUENCY SELECTION
The TRANSIT Entry reader operates in the 2.45GHz frequency band. When two or
more readers are within a range of 15 meters
on a different operating frequency. The selected frequency has to comply with local
radio regulations.
Press the UP or DOWN switch once and the display will show a value indicating the
currently selected frequency. Lookup the display value in the table below to find out
what the actual operating frequency is.
When the display is on, press the UP switch to select a higher frequency. Similarly,
press the DOWN switch to select a lower frequency.
The display will automatically switch off after 5 seconds.

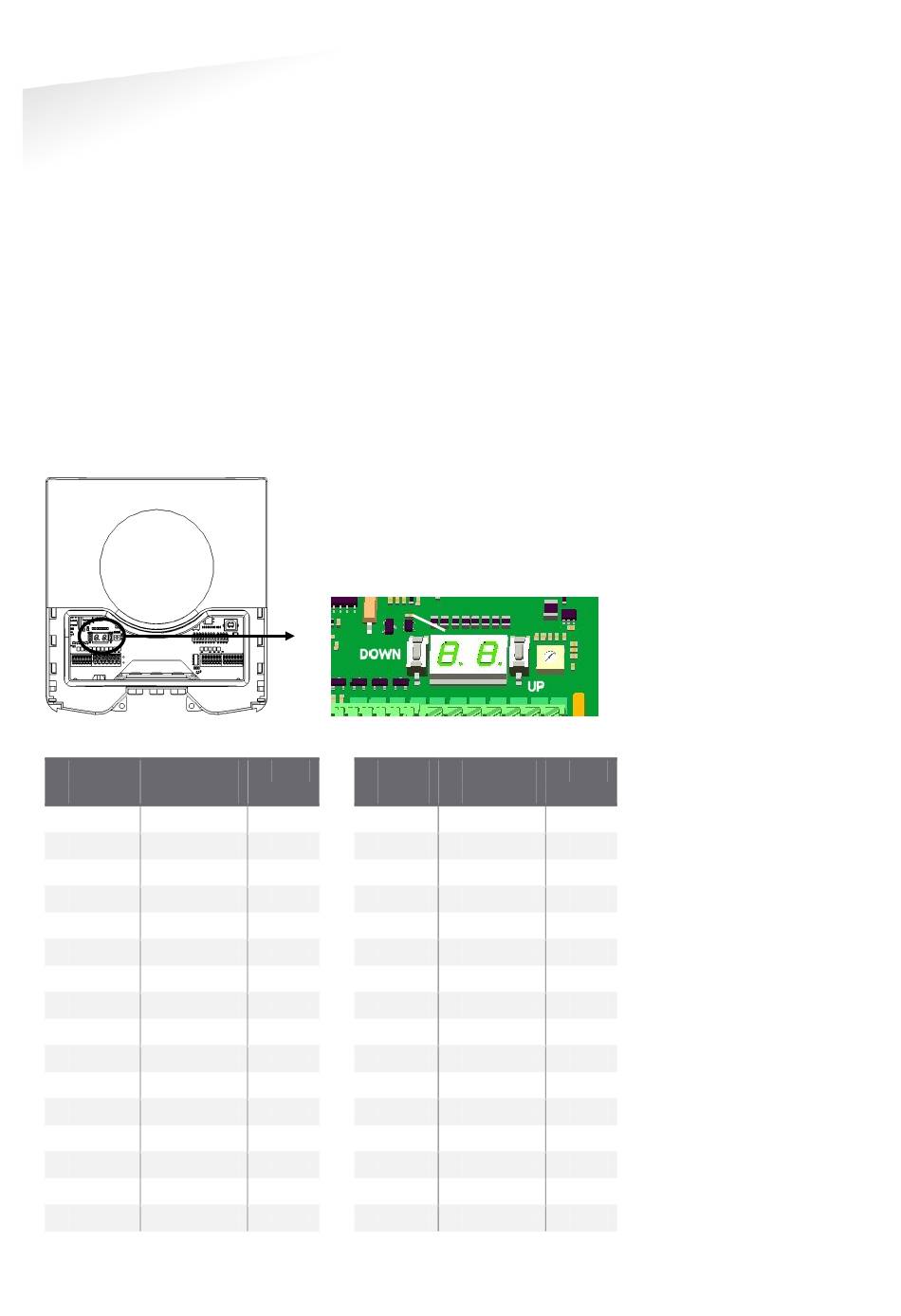

Figure 22: frequency setting
Display Frequency
value (GHz)
50 2.4384
51 2.4390
52 2.4396
53 2.4402
54 2.4408
55 2.4414
56 2.4420
57 2.4426
58 2.4432
59 2.4438
5A 2.4444
5B 2.4450
5C 2.4456
5D 2.4462
5E 2.4468
5F 2.4474
Table 2: Frequency values
, these readers should be set
(50 feet)
DISPLAY
Wifi Display
value
60
61
62
63
64
65
CH7 66
67
68
69
6A
6B
6C
6D
6E
CH8 6F
Frequency Wifi
(GHz)
2.4480
2.4486
2.4492
2.4498
2.4504
2.4510
2.4516
2.4522 CH9
2.4528
2.4534
2.4540
2.4546
2.4652
2.4558
2.4564
2.4570 CH10
