TRANSIT ENTRY | INSTALLATION GUIDE
Connections
3.5

DIGITAL I/O

3.5.1 RELAY OUTPUT

The relay output is automatically activated upon identification of a transponder. This
behavior can be changed and configured by means of the firmware. Please refer to
the firmware manual for more details.
The 'smile' on the front cover lights-up simultaneously with the relay
output.
Connections:
NC
Relay contact normally closed
COM
Relay contact common
NO
Relay contact normally open
Contact ratings:
Max. switching current:
Max. switching voltage:
Max. switching power:

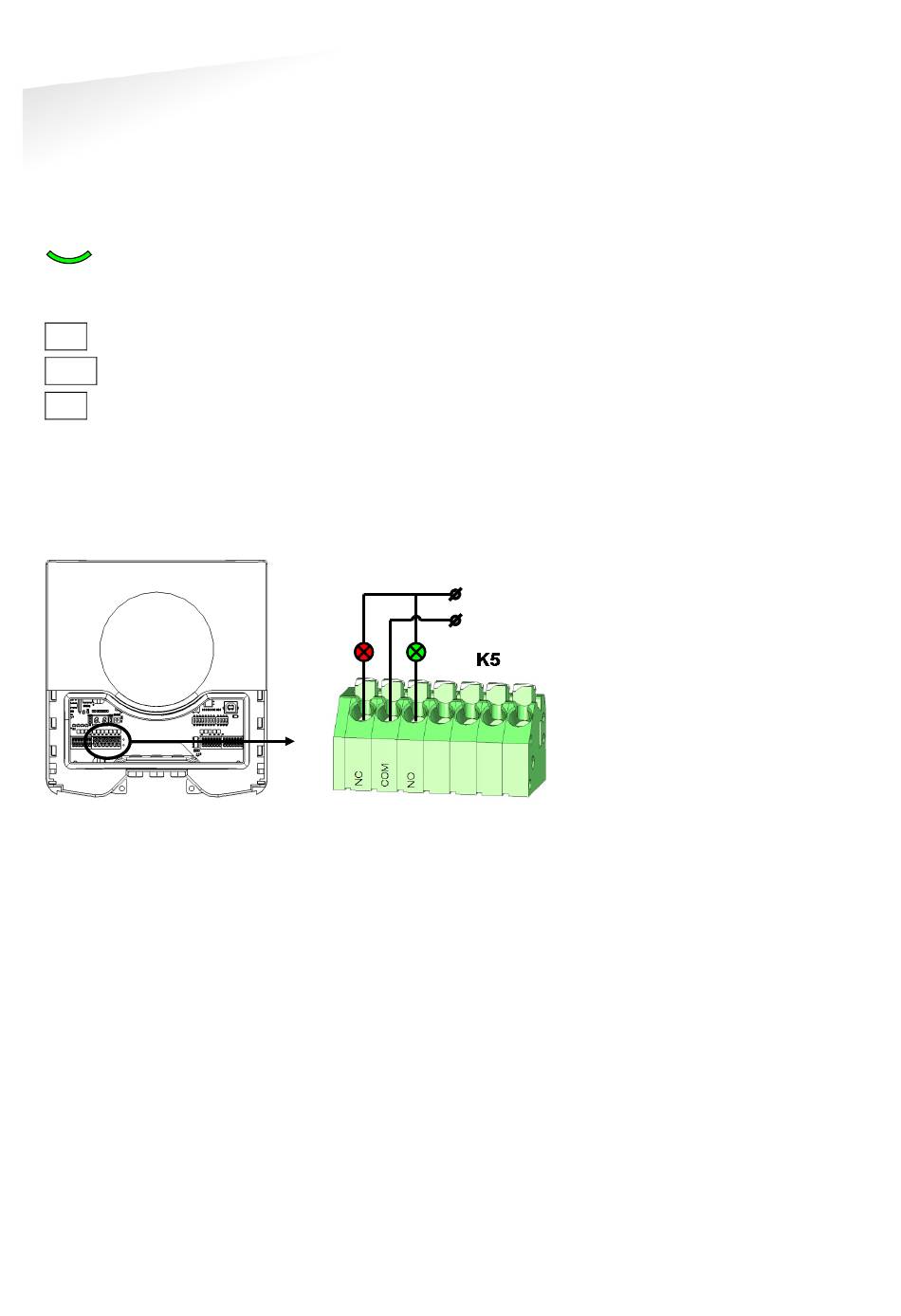

Figure 14: Relay output
2A
24VDC
50W
CONTACT
SUPPLY
