TRANSIT ENTRY | INSTALLATION GUIDE
Connections
3.4.3 WIEGAND, MAGSTRIPE, BARCODE CONNECTION
The synchronous communication interface wiring depends upon the selected
communication protocol and the reader firmware. Please refer to the firmware
manual for more details.

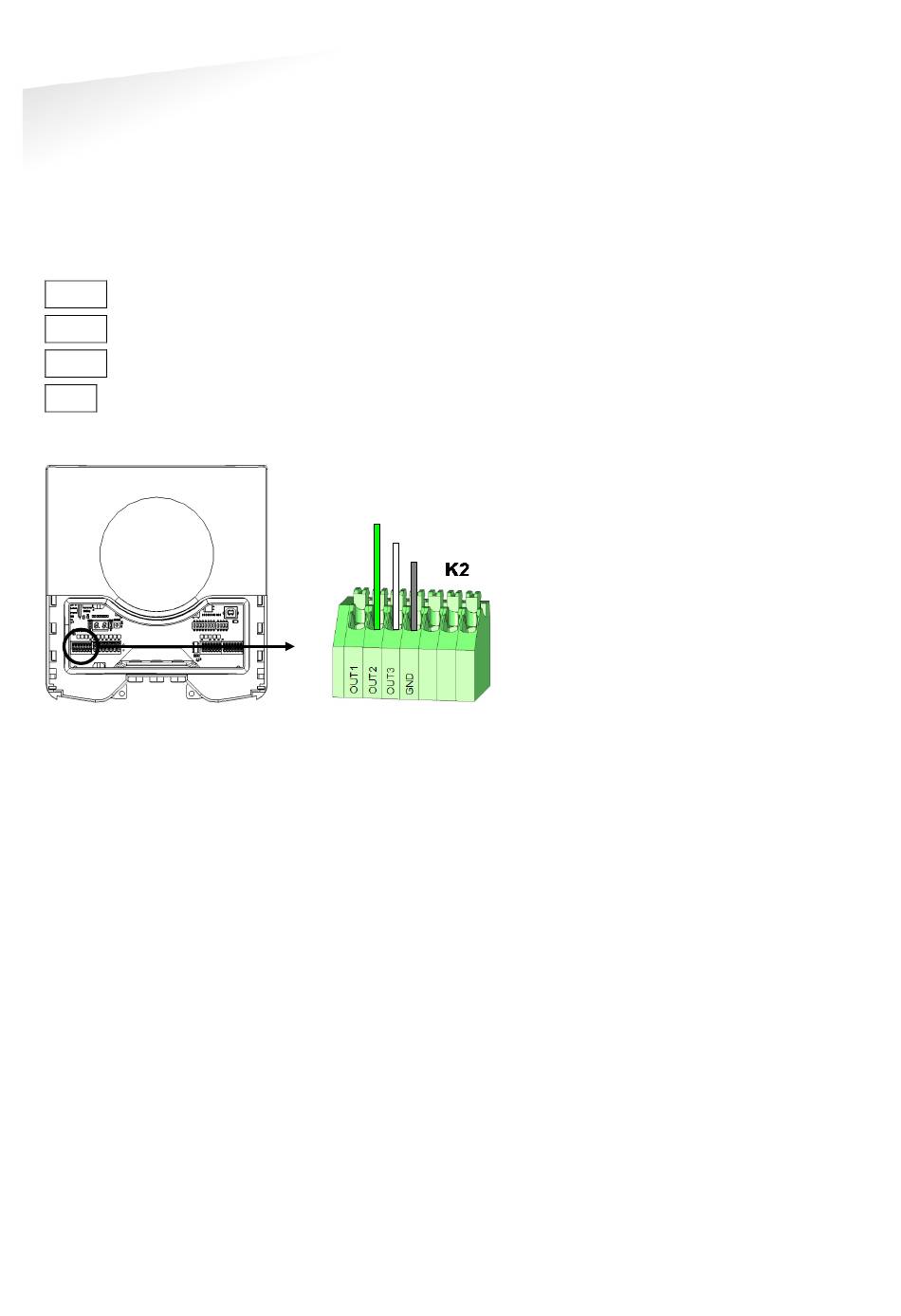

In Figure 12 the wiring for the Wiegand protocol is outlined.
Connections
WIEGAND
OUT1
-
OUT2
Data-0 (green)
OUT3
Data-1 (white)
GND
Ground (black)
Figure 12: Wiegand wiring
MAGSTRIPE
BARCODE
Card Loaded
-
Clock
-
Data
Data
Ground
Ground
DATA-0
DATA-1
GND
Note
Maximum cable length 150
meters (500 feet)
12/30
