TRANSIT ENTRY | INSTALLATION GUIDE
Connections
3.6
SPECIAL CONNECTIONS
Nedap Antenna Interface
The Nedap antenna interface is used to connect the TRANSIT Entry to NEDAP EAOS
access control hardware such as the AP1001. Instead of proximity antenna the
TRANSIT Entry can be connected.
Connections
HF+
Nedap antenna interface (modulation output, connect to ANT)
HF-
Nedap antenna interface (ground shield , connect to ANT GND)

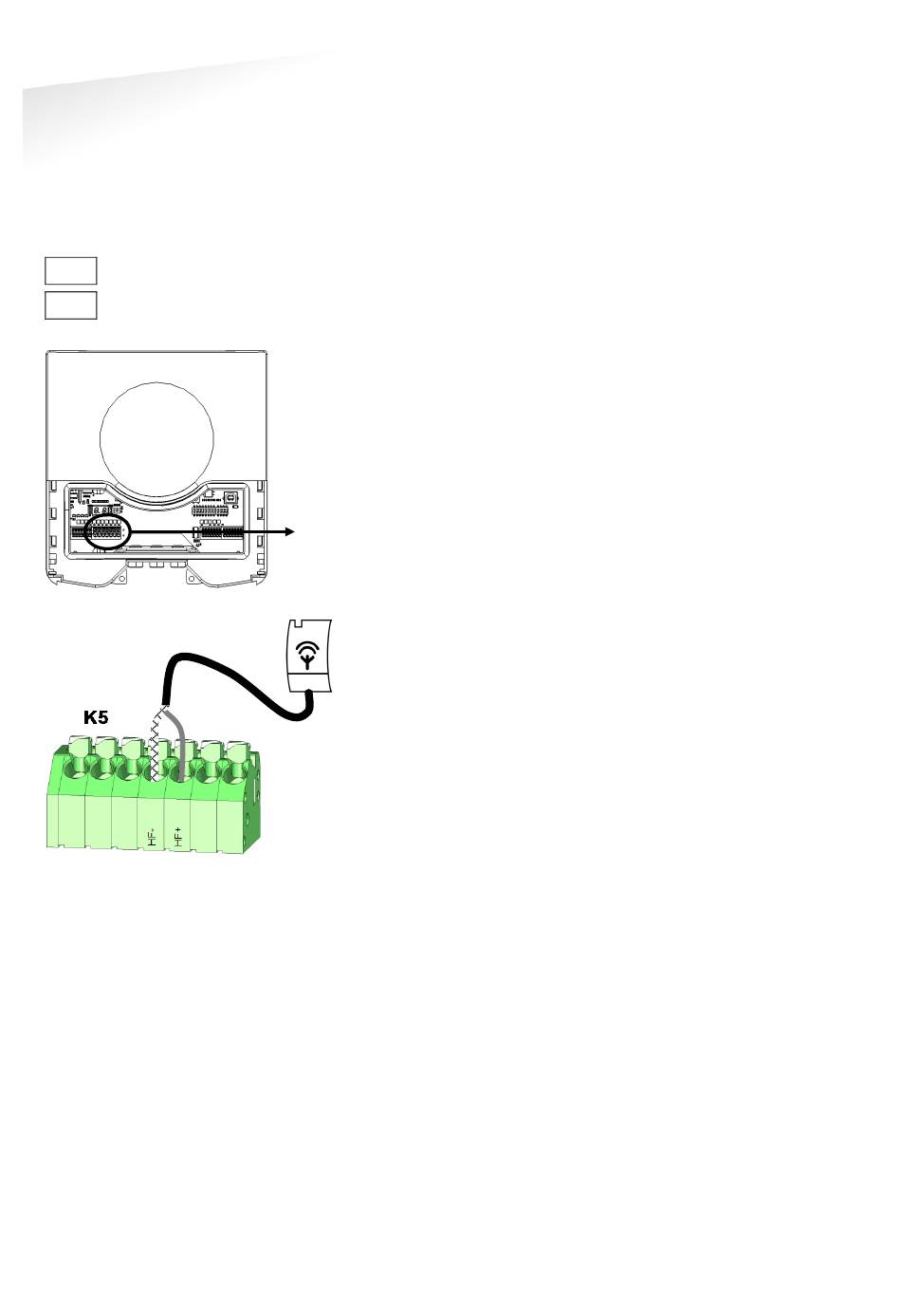

Figure 19: Nedap antenna interface
Note
Use coax RG58U, maximum
cable length 100 meters
(330 feet)
19/30
