Parallax BASIC Stamp 2e Programming Manual page 307

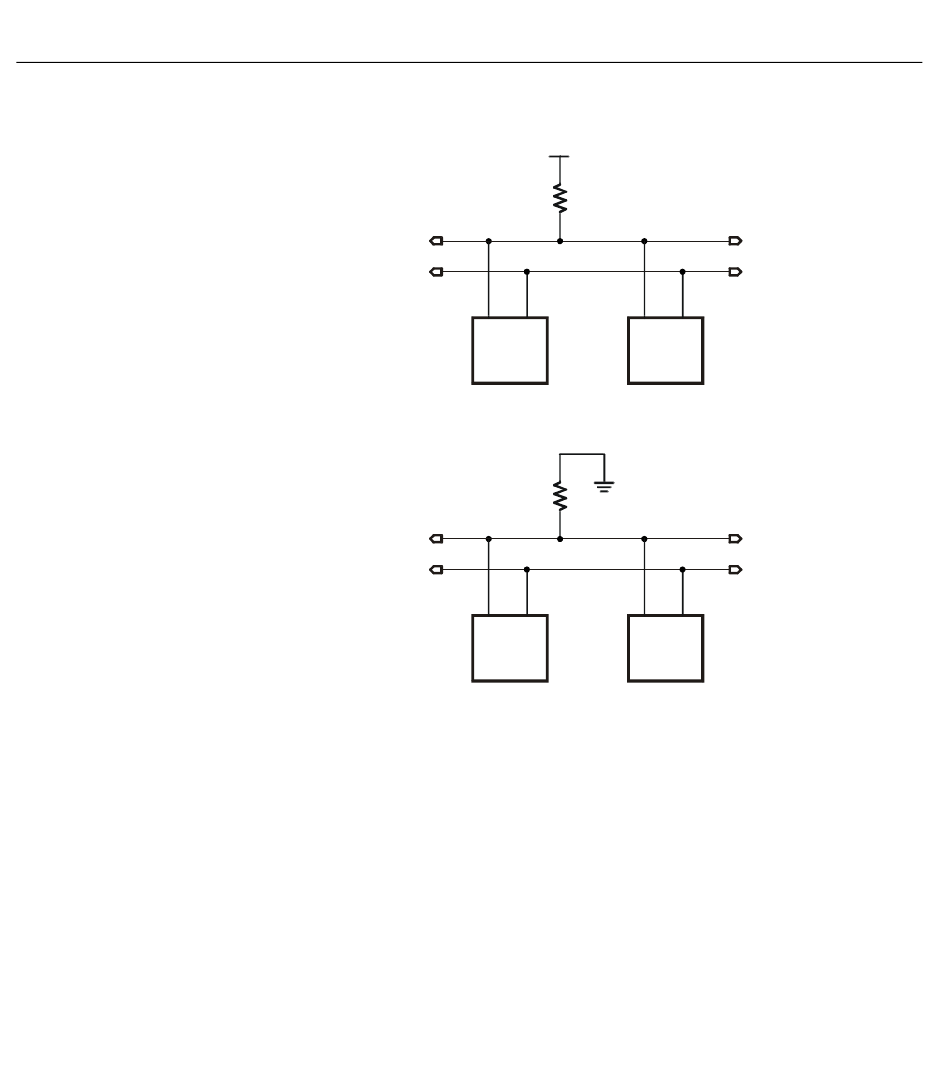

Figure 5.36: SEROUT Open-Drain
Circuit. This circuit is for use with
the Open, Non-inverted baudmode.
Figure 5.37: SEROUT Open-
Source Circuit. This circuit is for
use with the Open, Inverted
baudmode.
SEROUT T
ROUBLESHOOTING
5: BASIC Stamp Command Reference – SEROUT
To other
devices
To other
devices
Serial communication, because of its complexity, can be very difficult to
.
work with at times. Please follow these guidelines (and those in the
"SERIN Troubleshooting" section of the SERIN command description)
when developing a project using the SERIN and SEROUT commands:
1. Always build your project in steps.
a. Start with small, manageable pieces of code, that deals with
serial communication) and test them, one at a time.
b. Add more and more small pieces, testing them each time, as
you go.
c. Never write a large portion of code that works with serial
communication without testing its smallest workable pieces
first.
Vdd
1 kΩ
I/O Gnd
Pin (Vss)
BASIC
Stamp
1 kΩ
Vss
I/O Gnd
Pin (Vss)
BASIC
Stamp
BASIC Stamp Programming Manual 2.0c • www.parallaxinc.com • Page 305
To other
devices
I/O Gnd
Pin (Vss)
BASIC
Stamp
To other
devices
I/O Gnd
Pin (Vss)
BASIC
Stamp
