Parallax BASIC Stamp 2e Programming Manual page 205

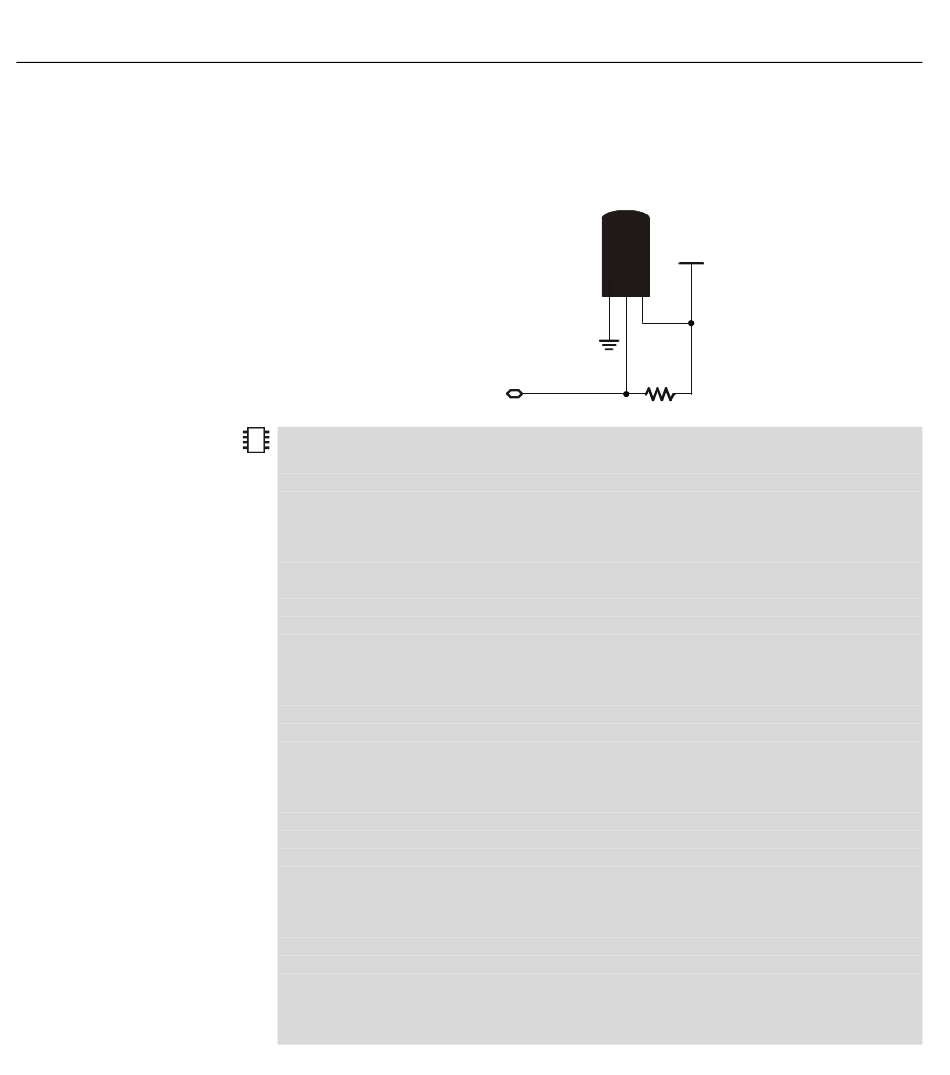

Figure 5.20: DS1820 Circuit.
NOTE: The 4.7 kΩ resister is
required for proper operation.
5: BASIC Stamp Command Reference – OWIN
The Demo Program uses a Dallas Semiconductor DS1820 Digital
Thermometer device connected as follows. Note that the 4.7 k Ω pull-up
resister is required for proper operation.
2
Demo Program (I2C.bsp)
p
' This program demonstrates interfacing to a Dallas Semiconductor DS1820 1-wire Digital
' Thermometer chip using the BS2p's 1-wire commands. Connect the BS2p to the DS1820
' as shown in the diagram in the OWIN or OWOUT command description.
' This code reads the Counts Remaing and Counts per Degree C registers in the DS1820
' chip in order to provide a more accurate temperature reading (down to 1/100th of a
' degree). It also calculates degrees Fahrenheit. NOTE: The algebraic equations used
' will not work properly with negative temperatures.
'{$STAMP BS2p}
Temp VAR
CRem VAR
CPerC VAR
Start:
OWOUT 0, 1, [$CC, $44]
CheckForDone:
PAUSE 25
OWIN 0, 4, [Temp]
IF Temp = 0 THEN CheckForDone
OWOUT 0, 1, [$CC, $BE]
OWIN 0, 2, [Temp.LOWBYTE,Temp.HIGHBYTE,CRem,CRem,CRem,CRem,CRem,CPerC]
'Calculate temperature in degrees C
Temp = Temp>>1*100-25+((CPerC*100-(CRem*100))/CPerC)
DEBUG HOME, DEC3 Temp/100, ".", DEC2 Temp-(Temp/100*100), " C", CR
'Calculate temperature in degrees F
Temp = Temp*/461+3200
DEBUG DEC3 Temp/100, ".", DEC2 Temp-(Temp/100*100), " F"
GOTO Start
