Introduction to the BASIC Stamps
Board of Education (Rev. B)
The Board of Education is designed to accommodate the BS2-IC, BS2e-IC
and BS2sx-IC modules.
quickly prototyping simple or moderate circuits. Figure 1.17 shows the
board with the BS2-IC properly inserted into the socket.
features a, DB9 programming connector, reset button, 9-volt battery clips,
barrel connector, separate 5-volt regulator, power LED, 4 servo connectors
and a breadboard.
module's pins plus Vdd, Vin and Vss. Vdd is +5 volts and Vin is 6 – 9
volts (depending on your power supply). NOTE: the Vdd pin on the 20-
pin socket comes from the Vdd of the Stamp module (pin 21) while the 5
Vdd sockets above the breadboard come from the Board of Education's
5-volt regulator. Use the 5 Vdd sockets for anything requiring more
current than what the Stamp can provide. Also, the pins in the "red"
row of the servo connectors are connected to Vin. Also note: the barrel
jack is designed for a center positive, 2.1 mm (pin) x 5.5 mm (barrel)
plug.
9 Vdc
Battery
C3
C4
Sout
Sin
ATN
Vss
P0
P1
P2
P3
P4
P5
P6
P7
Need Tech Support?
email: stamptech@parallaxinc.com
Page 22 • BASIC Stamp Programming Manual 2.0b • www.parallaxinc.com
This board provides a small breadboard for
Three female 0.1" sockets allow for access to all the
Rocklin, CA - USA
6-9
VDC
TM
Vss
Vss
P1
P0
P15
P3
P2
P14
P5
P4
P13
P6 P7
P12
P8 P9
P11
1
P11
P10
P10
Vin
P13
P12
P9
Vss
P14 P15
P8
Rst
Vin
Vdd
P7
Vdd
X1
P6
P15
P5
P14
P4
P13
P3
P12
Pwr P2
P11
P1
P10
P0
P9
P8 Reset
3.7" (94 mm)
4.0" (101.5 mm)
This board
15 14 13 12
Red
Black
X4 X5
Rev B
Vdd Vin Vss
X3
X2
(c) 1998

Board of Education

www.stampsinclass.com
(916) 624-8333

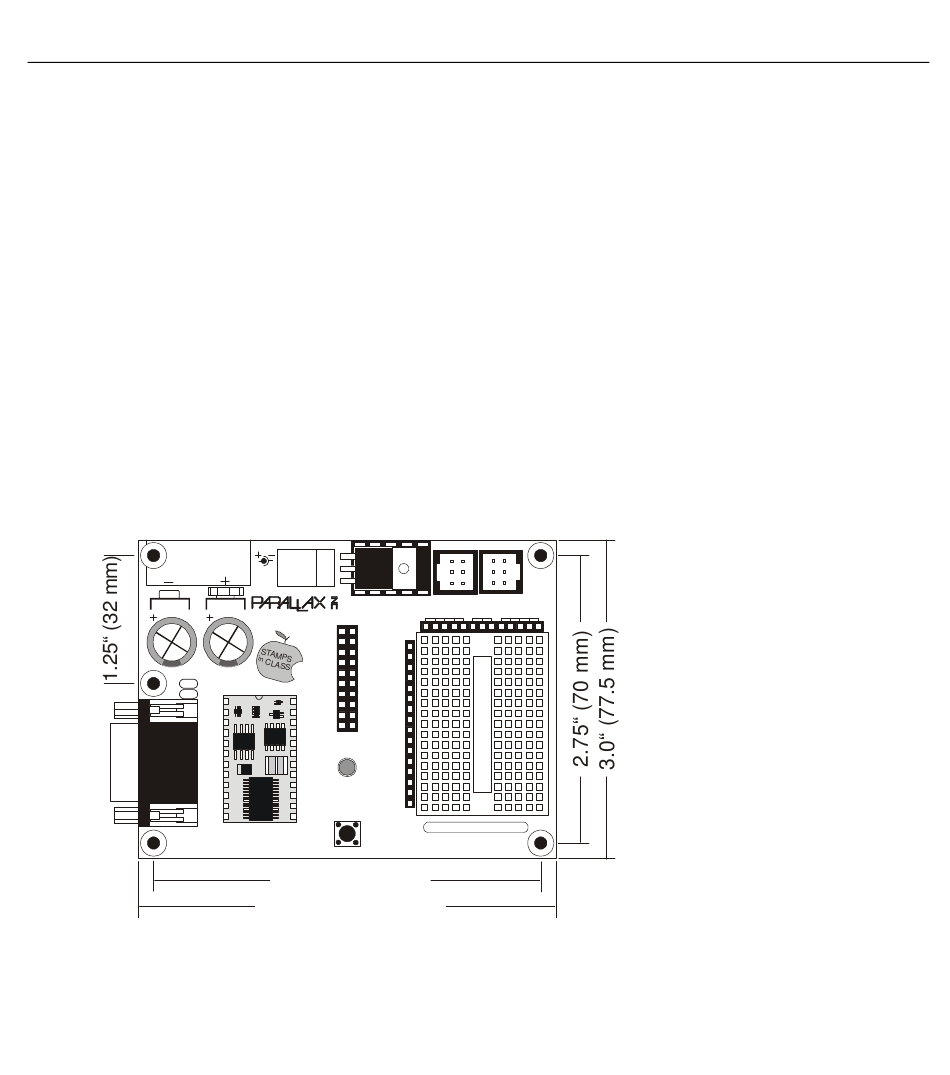

Figure 1.17: Board of Education
(shown with BS2-IC properly
inserted) (28102 or 28103)
