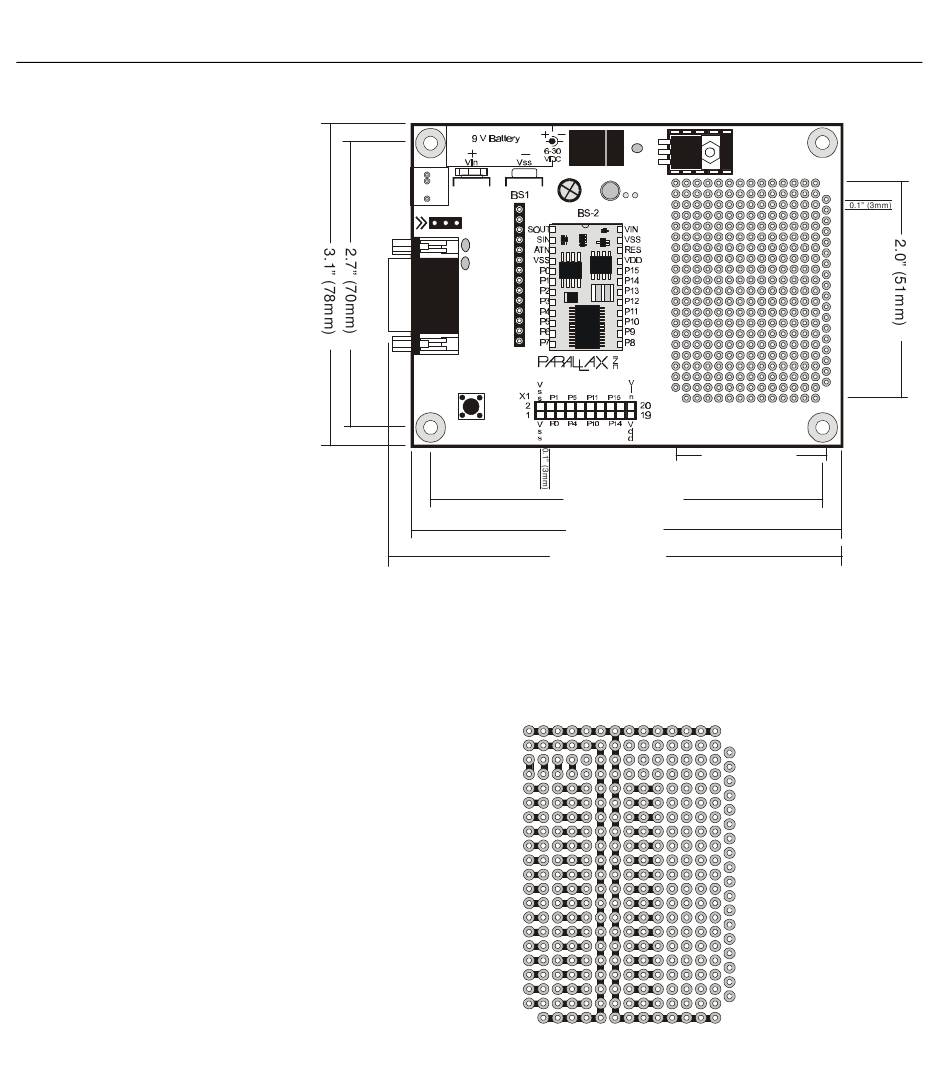

Figure 1.15: BASIC Stamp Super
Carrier Board (Rev. A) (shown with
BS2-IC properly inserted) (27130)
Figure 1.16: Prototype area of the
BASIC Stamp Super Carrier Board
(Rev. A) (black lines indicate
interconnected solder pads)
1: Introduction to the BASIC Stamps
Vss
Vin
Rocklin, CA - USA
In the prototype area, upper and lower rows as well as two inner columns
of solder pads are connected to Vdd and Vss to provide easy access to
power. IC's measuring from 0.3" to 0.7" in width can straddle the center
power rails similar to a breadboard. The right-most column of solder pads
is offset to accommodate components like RJ-11 and DB9 connectors.
BASIC Stamp Programming Manual 2.0c • www.parallaxinc.com • Page 21
