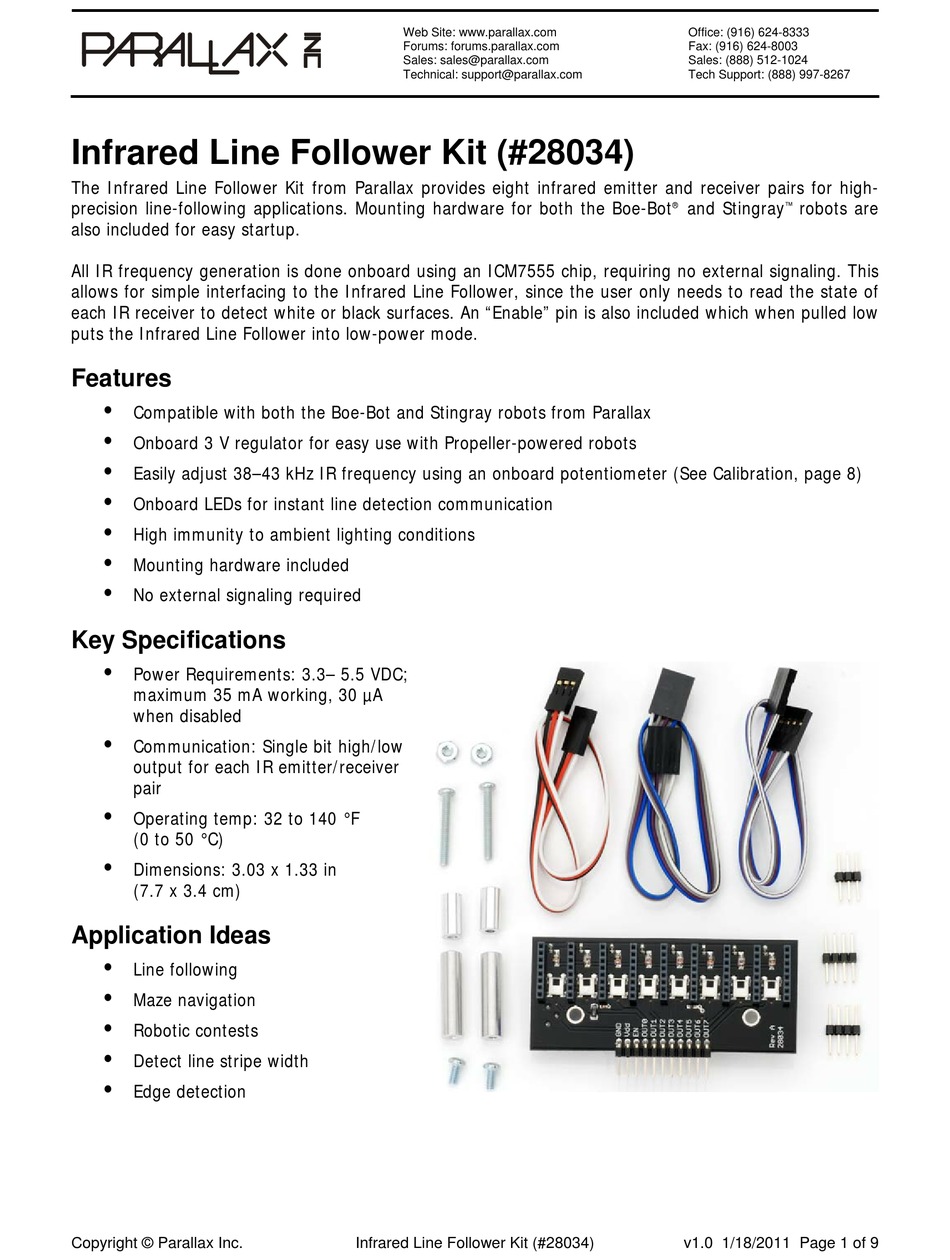

Infrared Line Follower Kit (#28034)
The Infrared Line Follower Kit from Parallax provides eight infrared emitter and receiver pairs for high-
precision line-following applications. Mounting hardware for both the Boe-Bot
also included for easy startup.
All IR frequency generation is done onboard using an ICM7555 chip, requiring no external signaling. This
allows for simple interfacing to the Infrared Line Follower, since the user only needs to read the state of
each IR receiver to detect white or black surfaces. An "Enable" pin is also included which when pulled low
puts the Infrared Line Follower into low-power mode.
Features
Compatible with both the Boe-Bot and Stingray robots from Parallax
Onboard 3 V regulator for easy use with Propeller-powered robots
Easily adjust 38–43 kHz IR frequency using an onboard potentiometer (See Calibration, page 8)
Onboard LEDs for instant line detection communication
High immunity to ambient lighting conditions
Mounting hardware included
No external signaling required
Key Specifications
Power Requirements: 3.3– 5.5 VDC;
maximum 35 mA working, 30 µA
when disabled
Communication: Single bit high/low
output for each IR emitter/receiver
pair
Operating temp: 32 to 140 °F
(0 to 50 °C)
Dimensions: 3.03 x 1.33 in
(7.7 x 3.4 cm)
Application Ideas
Line following
Maze navigation
Robotic contests
Detect line stripe width
Edge detection
Copyright © Parallax Inc.
Web Site: www.parallax.com
Forums: forums.parallax.com
Sales: sales@parallax.com
Technical: support@parallax.com
Infrared Line Follower Kit (#28034)
Office: (916) 624-8333
Fax: (916) 624-8003
Sales: (888) 512-1024
Tech Support: (888) 997-8267
and Stingray
robots are
®
v1.0 1/18/2011 Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 28034 and is the answer not in the manual?

Questions and answers

Summary of Contents for Parallax 28034

  • Page 1 Technical: support@parallax.com Tech Support: (888) 997-8267 Infrared Line Follower Kit (#28034) The Infrared Line Follower Kit from Parallax provides eight infrared emitter and receiver pairs for high- precision line-following applications. Mounting hardware for both the Boe-Bot and Stingray robots are ®...
  • Page 2: Bill Of Materials

    Resources and Downloads Check for the latest version of this document, free software, and example programs from the Infrared Line Follower Kit product page. Go to www.parallax.com and search 28034. Theory of Operation Upon connecting power, the onboard ICM7555 chip begins sending a 38–43 kHz signal through all 8 IR LEDs.
  • Page 3 1" standoff. Don’t tighten the standoff completely to allow for easier alignment of the Infrared Line Follower’s mounting holes in the next step. Copyright © Parallax Inc. Infrared Line Follower Kit (#28034) v1.0 1/18/2011 Page 3 of 9...
  • Page 4 (2) 4-40 x 3/8" nuts Step 1 Remove the front Stingray plate and insert the 7/8" screws through the top of the chassis through the front slot. Copyright © Parallax Inc. Infrared Line Follower Kit (#28034) v1.0 1/18/2011 Page 4 of 9...
  • Page 5: Pin Definitions

    Output state of IR receiver 6 OUT7 Output state of IR receiver 7 Pin Type: P = Power, G = Ground, I = Input, O = Output Copyright © Parallax Inc. Infrared Line Follower Kit (#28034) v1.0 1/18/2011 Page 5 of 9...
  • Page 6 Propeller Robot Control Board’s translators will interfere with signals coming from the sensor. For instructions on how to disable the translators, see the documentation available on the Propeller Robot Control Board’s product page. Go to www.parallax.com and search 28230. Figure 1: Infrared Line Follower Quick-Start Circuit BASIC Stamp 2 Example Code The program InfraredLineFollower_Simple.bs2 will test the Infrared Line Follower sensors before they’re...
  • Page 7  Place S0 over the electrical tape, and the other sensors over the white paper.  The Parallax Serial Terminal should read %00000001 and the S0 LED should be off.  Repeat this process until all eight sensors are tested.
  • Page 8 IR detectors over a black surface and gently adjust the onboard potentiometer until all eight red LEDs are off. Note: A small flathead screwdriver is required to adjust the frequency range. The Parallax screwdriver included in the Boe-Bot and Stingray robot kits is usually sufficient.
  • Page 9 This code was written to be used as a skeleton for higher-precision line following applications using PID and/or other control algorithms. '' InfraredLineFollower_Stingray.spin '' Simple line following code compatible with the Parallax Stingray Robot, best used '' on longer courses with wide-radius turns _clkmode = xtal1 + pll16x...
