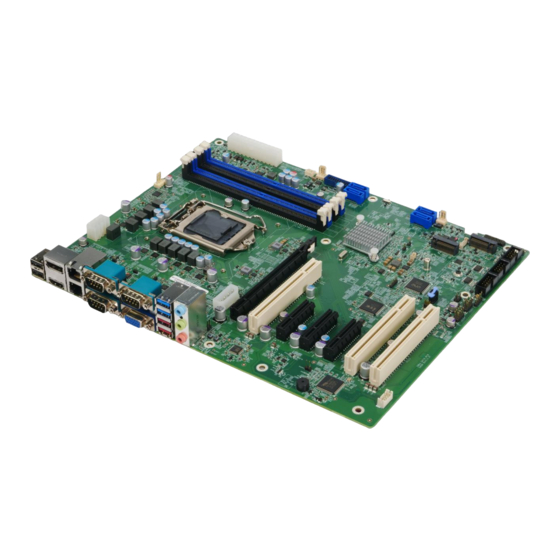

ATX Motherboard Supports 10
i9/i7/i5/i3, Celeron® and Pentium® Processors, DDR4, Triple
Independent Displays, Dual 2.5GbE, M.2, USB 3.2, SATA 6Gb/s,
Quick Installation Guide
Package List
IMBA-Q470 package includes the following items:
1 x IMBA-Q470 single board computer
2 x SATA cable
1 x I/O shielding
1 x QIG
HD Audio and RoHS
IMBA-Q470
Version 1.0
November 24, 2021
© 2021 Copyright by IEI Integration Corp.
All rights reserved.
Gen. LGA1200 Intel® Core™
th
th
/11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for IEI Technology IMBA-Q470
Summary of Contents for IEI Technology IMBA-Q470
- Page 1 Independent Displays, Dual 2.5GbE, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS IMBA-Q470 Quick Installation Guide Version 1.0 November 24, 2021 Package List IMBA-Q470 package includes the following items: 1 x IMBA-Q470 single board computer 2 x SATA cable 1 x I/O shielding ...
-
Page 2: Specifications
Specifications CPU: Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors Chipset: Intel® Q470E Memory: Four 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots supporting up to 128 GB memory BIOS: AMI UEFI BIOS Graphics Engine: Up to Intel®... - Page 3 Internal I/O Interface: 5 x USB 2.0 (2x4 pin, p=2.54) 2 x USB 3.2 Gen1 (2x10 pin, p=2.0) 2 x RS-232 (2x5 pin, p=2.54) 1 x RS-232/422/485 (2x5 pin, p=2.54) (support Auto Flow Control over RS-485) 4 x SATA 6Gb/s (RAID 0/1/5/10 supported) ...
- Page 4 IEI Resource Download Center All the drivers and utility for the IMBA- https://download.ieiworld.com Q470 are available on IEI Resource Download Center. Type IMBA-Q470 and press Enter to find all the relevant software, utilities, and documentation. To install software from the downloaded ISO file, mount the file as a virtual drive to view its content.
-
Page 5: Ordering Information
Ordering Information IMBA-Q470-R10: Gen. LGA1200 Intel® Core™ ATX Motherboard Supports 10 i9/i7/i5/i3, Celeron® and Pentium® Processors, DDR4, Triple Independent Display, Dual 2.5GbE, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS 19800-003100-100-RS: Dual port USB cable with bracket, 30mm, p=2.54 ... -
Page 6: Jumpers Setting And Connectors
Jumpers Setting and Connectors LABEL FUNCTION J_ATX_AT1 AT/ATX power mode setting ME_RTC2 Clear CMOS jumper ME_RTC1 Clear ME jumper J_FLASH1 Flash descriptor security override jumper AUDIO1 Internal audio connector ATX1 ATX power connector CPU12V1 ATX CPU 12V power connector CHASSIS1 Chassis intrusion connector DBG_PORT1 Debug connector... - Page 7 PCIEX16_1 PCIe x16 slot PWR_SW1 Onboard power button AUDIO_CV1 External HD Audio jack K/M_USB1 External USB 2.0 connector External dual 2.5GbE RJ-45 connector External dual USB 3.2 Gen 1 and CON1_USB1 dual USB 3.2 Gen 2 connector External RS-232 and RS-422/485 combo COM2 connector COM1/VGA1...
- Page 8 USB Power SW: USB Power Setting USB Power SW DESCRIPTION Power is provided in S3/S4 sleep +5V DUAL state (default) Power is not provided in S3/S4 sleep state Use the USB Power SW BIOS options to configure whether to provide power to the corresponding USB connector(s) when the system is in S3/S4 sleep state.
- Page 9 +12V +12V +3.3V CPU12V1: ATX CPU 12V Power Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V +12V +12V +12V DBG_PORT1: Debug Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMCLK1_EC SMDAT1_EC PLTRST_N DIO1 : Digital Input/Output Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 3 Output 2...
- Page 10 EC_UART1: EC UART Debug Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION UART_TX VCC3.3 UART_RX CPU_FAN1: CPU Fan Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V FANIO SYS_FAN1:System Fan Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION FANIO SYS_FAN2: System Fan Connector PIN NO.
- Page 11 I2C1: I C Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION I2C_CLK I2C_DATA LED_LAN1: LAN1 Link LED Connector DESCRIPTION DESCRIPTION +3.3V LAN1_LED_LNK#_ACT LED_LAN2: LAN2 Link LED Connector DESCRIPTION DESCRIPTION +3.3V LAN2_LED_LNK#_ACT COM3, COM4: RS-232 Serial Port Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION COM5: RS-232/422/485 Serial Port Connectors PIN NO.
- Page 12 S_ATA1, S_ATA2, S_ATA3, S_ATA4: SATA 6Gb/s Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA_RX‐ SATA_TX+ SATA RX+ SATA_TX‐ SMB1: SMBus Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMB_CLK SMB_DATA ATXPWR1: PCIe Power Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V...
- Page 13 JSPI1: Flash SPI ROM Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V SPI_CLK SPI_CS# SPI_SI SPI_SO JEC1: Flash EC ROM Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V SPI_CS# SPI_SO EC_DET_FLASH SPI_CLK SPI_SI JUSB4, JUSB5: Internal USB 2.0 Connectors PIN NO. DESCRIPTION PIN NO.
- Page 14 JUSB3-1: Internal USB 3.2 Gen 1 Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA+ USB_RX- USB_ DATA- USB_RX+ USB3_TX+ USB3_TX- USB3_ TX- USB3_TX+ USB3_RX+ USB3_DATA- USB3_RX- USB3_DATA+ M2_A1: M.2 A-key Slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V USB2_DP +3.3V USB2_DN Module Key Module Key...
- Page 15 PERP0 PERN0 PCIE_CLK+ PCIE_CLK- PLT_RST CLKREQ0# Pull up PCIE_WAKE W_DIS I2C_DAT I2C_CLK +3.3V +3.3V +3.3V M2_M1: M.2 M-key Slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V +3.3V PERN0 PERP0 DAS/DSS# PETN0 +3.3V PETP0 +3.3V +3.3V PERN1 +3.3V PERP1 PETN1...
- Page 16 PETP1 PERN2 PERP2 PETN2 PETP2 DEVSLP PERN3 PERP3 PETN3 PETP3 PERST# CLKREQ PCIECLKN PEWAKE PCIECLKP Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key PEDET +3.3V +3.3V +3.3V AUDIO_CV1: External Audio Jacks Jack Color DESCRIPTION Blue Line-in: CD/DVD or other audio source input port...
- Page 17 K/M_USB1: External USB 2.0 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA+ USB_DATA+ USB_DATA- USB_DATA- JP1: External 2.5GbE RJ-45 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION LAN1_MDI0P LAN1_MDI0P LAN1_MDI0N LAN1_MDI0N LAN1_MDI1P LAN1_MDI1P LAN1_MDI1N LAN1_MDI1N LAN1_MDI2P LAN1_MDI2P LAN1_MDI2N LAN1_MDI2N LAN1_MDI3P LAN1_MDI3P LAN1_MDI3N LAN1_MDI3N Connect 0.1uf...
- Page 18 HDMI_DP1 External DP++ Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LANE0P LANE3N LANE0N AUX_CTRL_DET_C LANE1P LANE1N AUXP LANE2P AUXN LANE2N LANE3P External HDMI Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2 HDMI_CLK# HDMI_DATA2# HDMI_DATA1 HDMI_SCL HDMI_DATA1# HDMI_SDA HDMI_DATA0 HDMI_DATA0# HDMI_HPD HDMI_CLK...
- Page 19 COM1/VGA1 External RS-232 Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION DCD1 DSR1 RXD1 RTS1 TXD1 CTS1 DTR1 GND1 External VGA Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION GREEN BLUE Hot plug detect DDCDA HSYNC VSYNC DDCCLK COM2 External RS-232 Connector (COM2) PIN NO.
- Page 20 CON1_USB1: External USB 3.2 Gen 1 & Gen 2 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA- USB_DATA+ USB_ DATA+ USB3_RX- USB3_RX- USB3_RX+ USB3_ RX+ USB3_TX- USB3_TX- USB3_TX+ USB3_TX+ USB_DATA- USB_DATA- USB_DATA+ USB_ DATA+ USB3_RX- USB3_RX- USB3_RX+ USB3_ RX+ USB3_TX- USB3_TX- USB3_TX+...
- Page 21 Board Layout: Jumper and Connector Locations (Unit: mm)
