Communication Ports
4.1 Copper Ethernet Ports
1

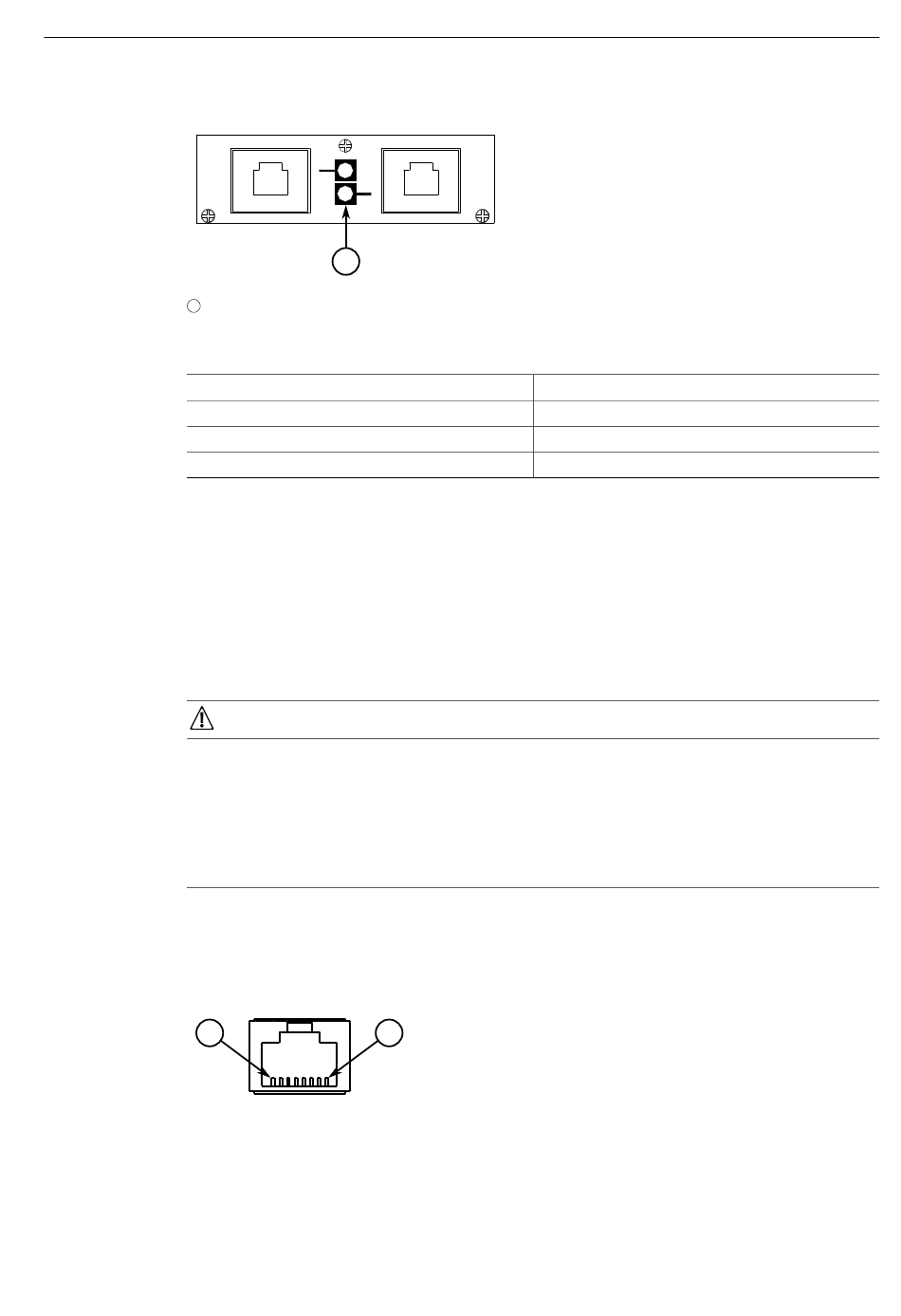

Figure 4.2
Yellow (Solid)
Yellow (Blinking)
Off
4.1
Copper Ethernet Ports
The RUGGEDCOM RSG2300 supports several 10/100/1000Base-TX Ethernet ports
that allow connection to standard Category 5 (CAT-5) unshielded twisted-pair (UTP)
cables with either RJ45 male connectors. The RJ45 connectors are directly connected
to the chassis ground on the device and can accept CAT-5 shielded twisted-pair (STP)
cables.
Electric shock hazard – risk of serious personal injury and/or equipment
interference
If shielded cables are used, make sure the shielded cables do not form a ground loop
via the shield wire and the RJ45 receptacles at either end. Ground loops can cause
excessive noise and interference, but more importantly, create a potential shock
hazard that can result in serious injury.
Pin-Out
The following is the pin-out description for the RJ45 connectors:
8
Figure 4.3
24
1
Port LED
Port LEDs
LED State
WARNING
1
RJ45 Ethernet Port Pin Configuration
Description
Link established
Link activity
No link detected
Installation Manual, 04/2022, C79000-G8976-1046-18
RUGGEDCOM RSG2300
