Device Management
This section describes how to connect to and manage the device.
3.1
Connecting to the Device
The following describes the various methods for accessing the RUGGEDCOM
RSG2300 console and Web interfaces on the device. For more detailed instructions,
refer to the "RUGGEDCOMROS Configuration Manual" for the RUGGEDCOM RSG2300.
RS232 Console Port
Connect a workstation directly to the RS232 console port to access the boot-time
control and RUGGEDCOM RSG2300 interfaces. The console port provides access to
RUGGEDCOM RSG2300's console and Web interfaces.
The serial console port is intended to be used only as a temporary connection during
initial configuration or troubleshooting.
Connection to the console port is made using an RJ45-to-DB9 console cable. The
following is the pin-out for the console port:
8

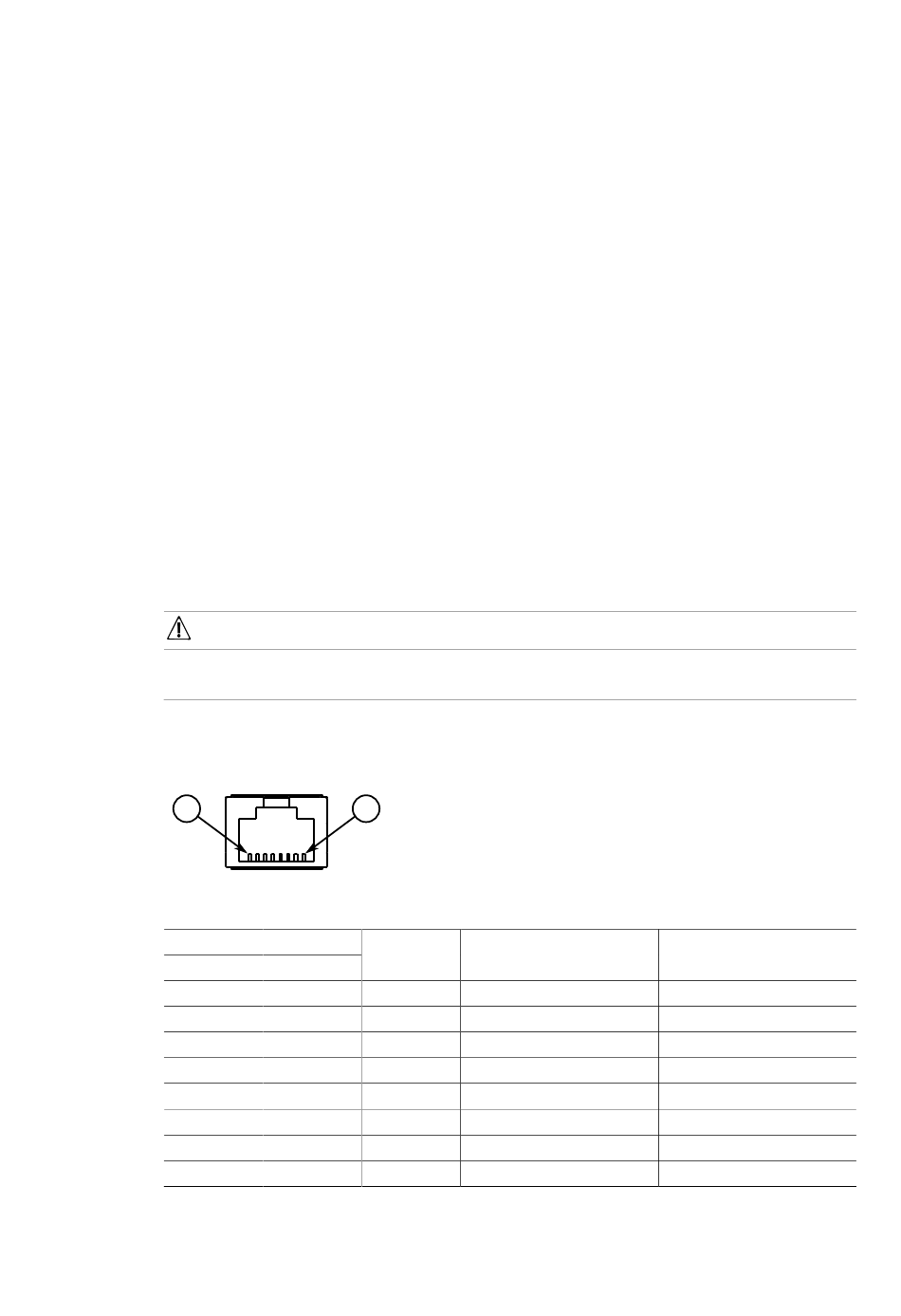

Figure 3.1
RJ45 Male
RUGGEDCOM RSG2300
Installation Manual, 04/2022, C79000-G8976-1046-18
NOTICE
1
RJ45 Console Port Pin Configuration
Pin
DB9 Female
1
6
2
1
3
4
4
5
5
2
6
3
7
8
8
7
Name
Description
a
DSR
Data Set Ready
a
DCD
Carrier Detect
a
DTR
Data Terminal Ready
GND
Signal Ground
RxD
Receive Data (to DTE)
TxD
Transmit Data (from DTE)
b
CTS
Clear to Send
b
RTS
Read to Send
3
Comment
Reserved (Do Not Connect)
21
