Communication Ports
The RUGGEDCOM RSG2300 can be equipped with various types of communication
ports to enhance its abilities and performance.

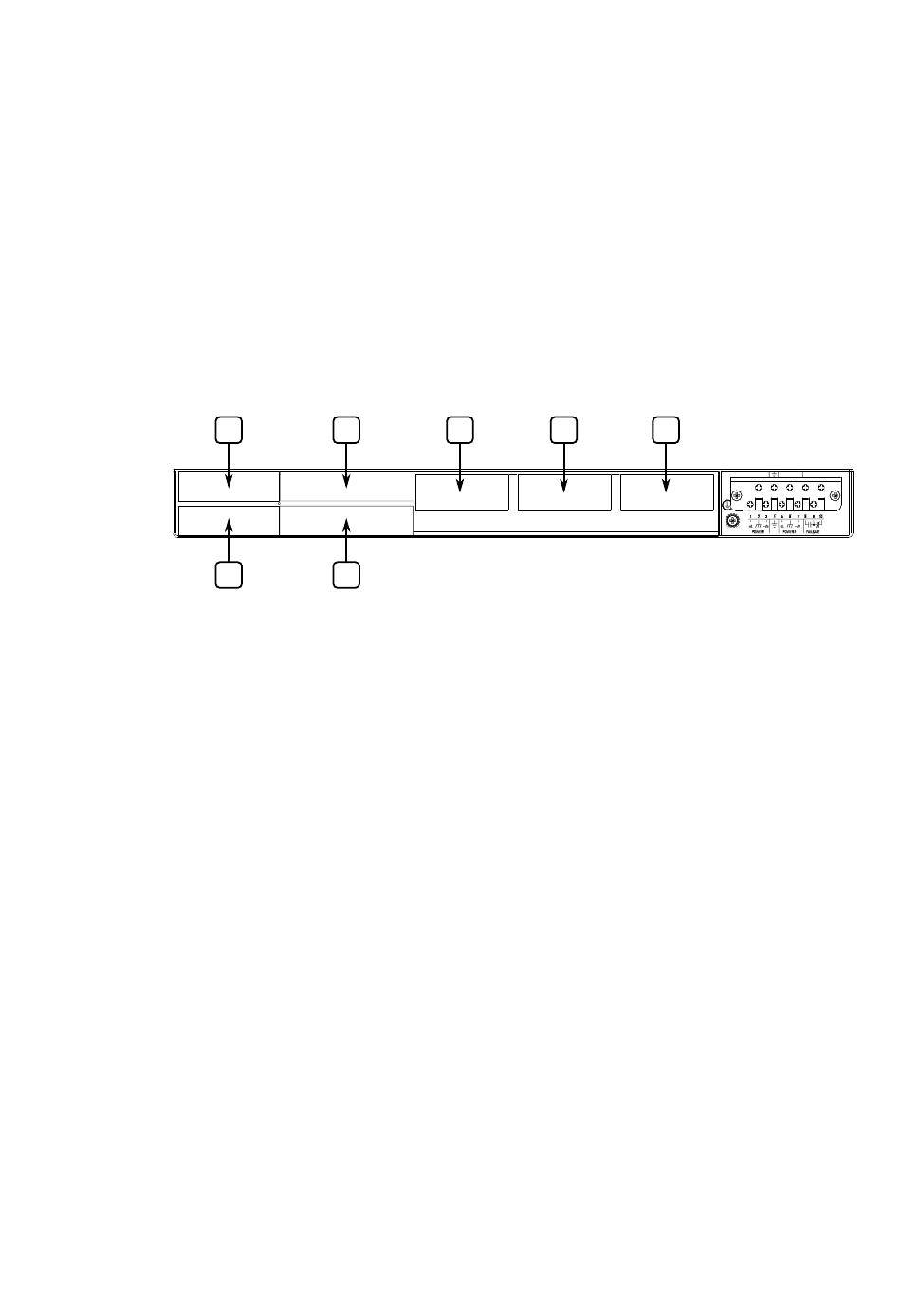

Module Assignment
Figure 4.1
Each type of module has a specific location in the RUGGEDCOM RSG2300 chassis:
•
•
•
The exact configuration of the device can be determined by reading the factory
data file through the RUGGEDCOM RSG2300 user interface. For more information
about how to read the factory data file, refer to the "RUGGEDCOMROS Configuration
Manual" for the RUGGEDCOM RSG2300.
Port LEDs
Each communication port is equipped with an LED that indicates the link/activity
state of the port.
RUGGEDCOM RSG2300
Installation Manual, 04/2022, C79000-G8976-1046-18
1
3
2
4
Module Assignment
Slots 1 and 2 support any combination of two-port fiber or copper Ethernet
modules up to 100 Mbps
Slots 3 and 4 support any combination of two-port Gigabit Ethernet (1 Gbps)
ports
Slots 5, 6 and 7 house 8-port 10/100TX copper RJ45 Ethernet ports, totaling 24
ports
5
6
4
7
23
