Quick Start Guide
AD9739-R2-EBZ

Result

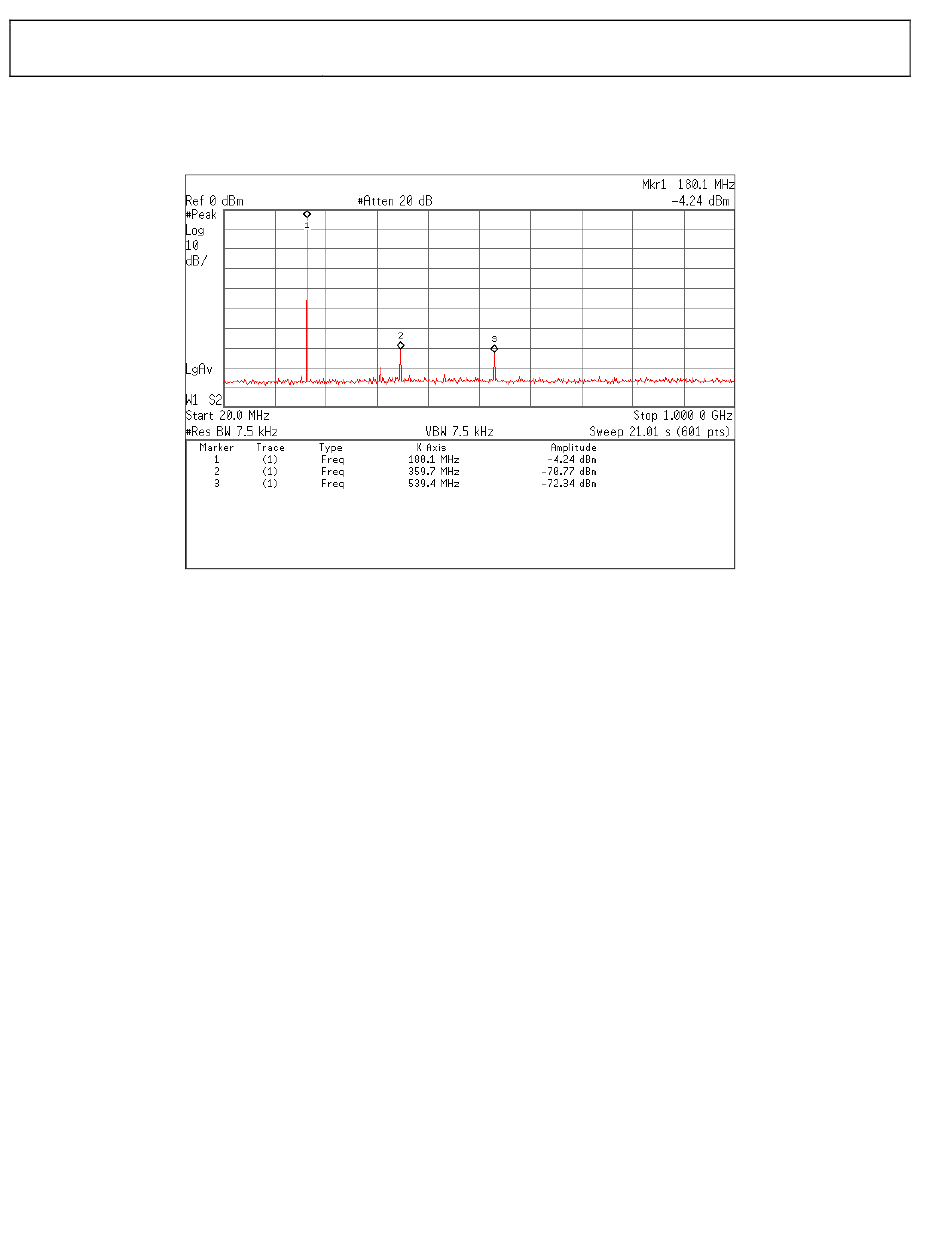

The result of this setup should be as shown in Figure 8. Note the RF Attenuation of 20dB to accurately measure harmonics.
Figure 8
Rev. A | Page 4 of 8
