ASSEMBLY INSTRUCTIONS

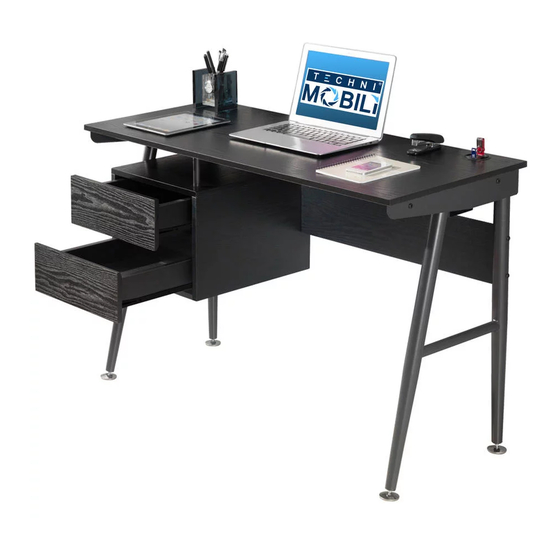

MODEL RTA - 2334
Thanks for purchasing one of our products.
Please read carefully the assembly instructions before the installation.
Please save this manual for future reference.
MODEL RTA - 2334

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-2334 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Techni Mobili RTA-2334

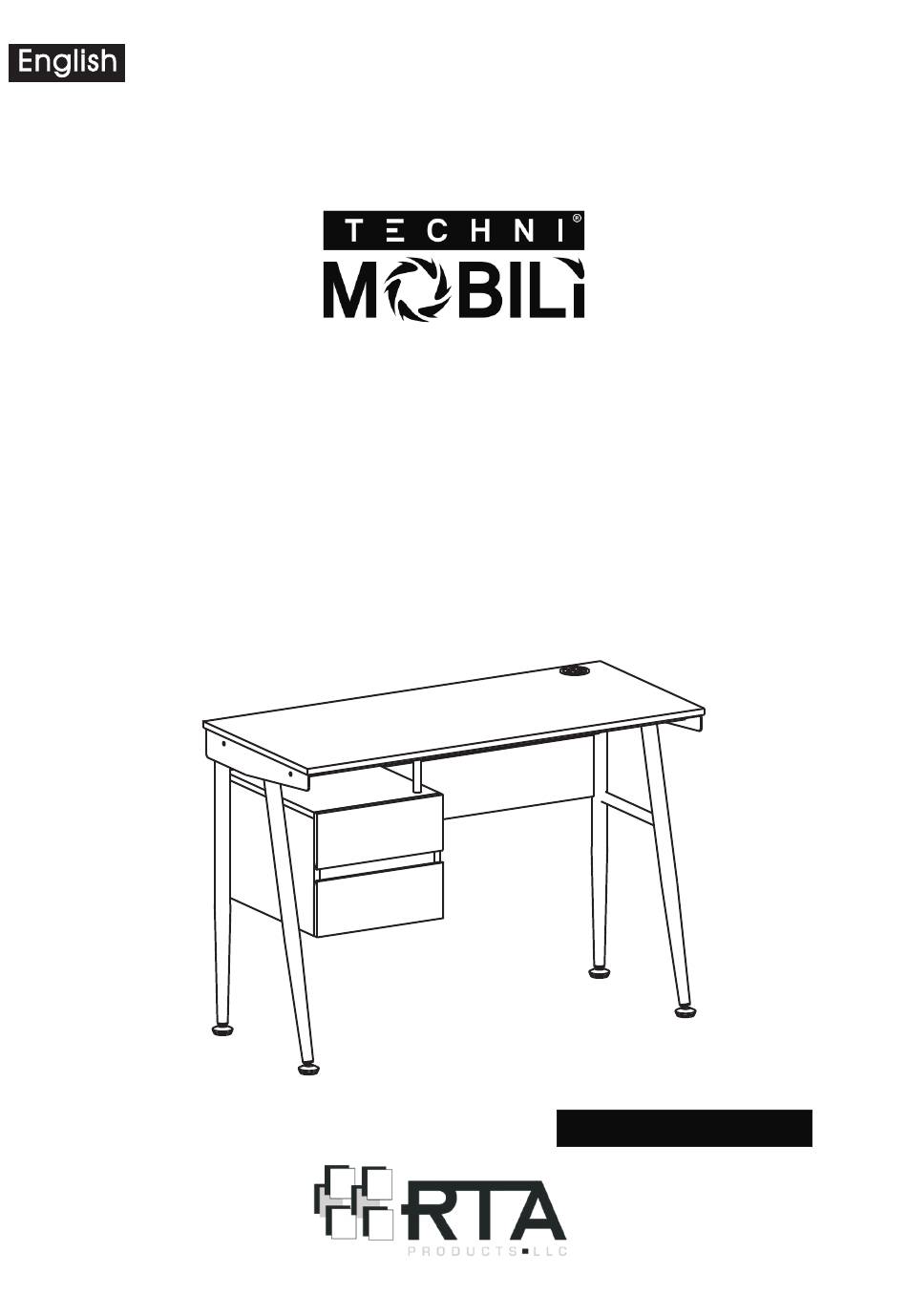

  • Page 1 ASSEMBLY INSTRUCTIONS MODEL RTA - 2334 Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation. Please save this manual for future reference. MODEL RTA - 2334...
  • Page 2 RTA-2334...
  • Page 3 RTA-2334 Right Structure Left Structure Back Tube Front Tube Right Panel Studs Left Panel Back Panel Top Panel Bottom Panel Small Front Panel Sliders Top Drawer Front Bottom Drawer Front Connecting Tube Drawer Connect Panel Panel...
  • Page 4 RTA-2334 Drawer Right Panel Drawer Left Panel Drawer Bottom Panel Drawer Back Panel Table Top Connect Panel Wire Base USB Hub Φ18 MM...
  • Page 5 RTA-2334...
  • Page 6 RTA-2334...
  • Page 7 RTA-2334 Use screws B to assemble the Drawer Connects (14) to the Drawer Left and Right Panels (17 & 18). Use screws D to assemble the Drawer Connects (14) to the Top Drawer Front Panel (15) and Bottom Drawer Front Panel (16).
  • Page 8 RTA-2334 RTA-2334 Use screws C to assemble the Drawer Back Panels (20) to the Drawer Left and Right Panels (17 & 18). Grab the 2 sets of the Drawer Sliders (12) and separate the flat ones from the “L” shaped ones. Place the drawer upside- down as shown and use screws B to assemble the “L”...
  • Page 9 RTA-2334 Use screws E to assemble the Back Tube (3) and Front Tube (4) to the Left and Right Structure (1 & 2). Please pay attention to the orientation of the tubes and their holes as shown. 4PCS Grab the Flat Sliders (12) and use screws B to assemble them to the Left &...
  • Page 10 RTA-2334 P.10 First screw bolts A to the Left and Right Panel (6 & 7) , but make sure to use the correct holes that are the ones closer to the edges. Then assemble the Back Panel, Bottom Panel and Small Front Panel (8, 9 &...
  • Page 11 RTA-2334 P.11 Use screws F to assemble the Connecting Tubes (13) to the Back Tube (3) and Front Tube (4). Use screws F & I to assemble the Left Panel (6) to the Left Structure (1). Use screws G, H & I to assemble the Connect Panel (21) to the Right Panel (7) and Right Structure (2).
  • Page 12 RTA-2334 P.12 Use screws D, G & K to assemble the Table Top (22). Φ18 MM Insert the USB Hub (24) to the Table Top (22). Tighten any and all screws. Insert the drawers into the cabinet, starting with the bottom drawer.
  • Page 13 CARE AND MAINTENANCE English - DO NOT EXPOSE THE SURFACES TO DIRECT SUNLIGHT OR EXTREME ENVIRONMENTAL CONDITIONS. ANY DAMAGE RESULTING FROM SUCH EXPOSURE IS NOT COVERED BY THE PRODUCT’S WARRANTY. - THE PREFERABLE METHOD TO CLEAN THE SURFACES IS TO WIPE THEM USING A SOFT CLOTH DAMPENED WITH A SOLUTION SOAP AND WATER, THEN DRY WITH A CLEAN TOWEL.
