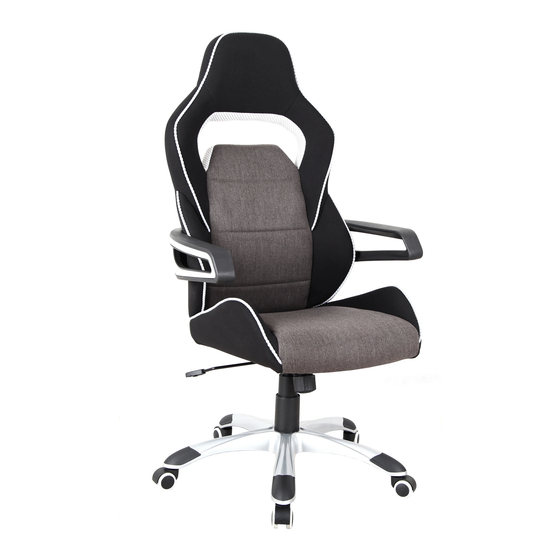

Techni Mobili RTA-2017 Assembly Instructions

PARTS LIST
ATTENTION: Before you begin to assemble the
product, please make sure that all the parts are
included in the package and in good condition.
A Backrest B Seat
x1 x1
C
5-Star base D Mechanism
x1
x1
F Casters
E Hydraulic
Gas Lift
x5
x1
G
Armrests
x1 Right x1 Left
When you seat on the chair, not looking at it.
H Covers for I
M6x20mm
Gas Lift (Set)
x1 x4
(Mechanism)
K
M6x30mm Washers
J
⌀13x⌀6x1.5mm
x6
x10
(Backrest, armrests)
(Armrests)
L Hole Covers
M
5mm Allen Wrench
x6
x1

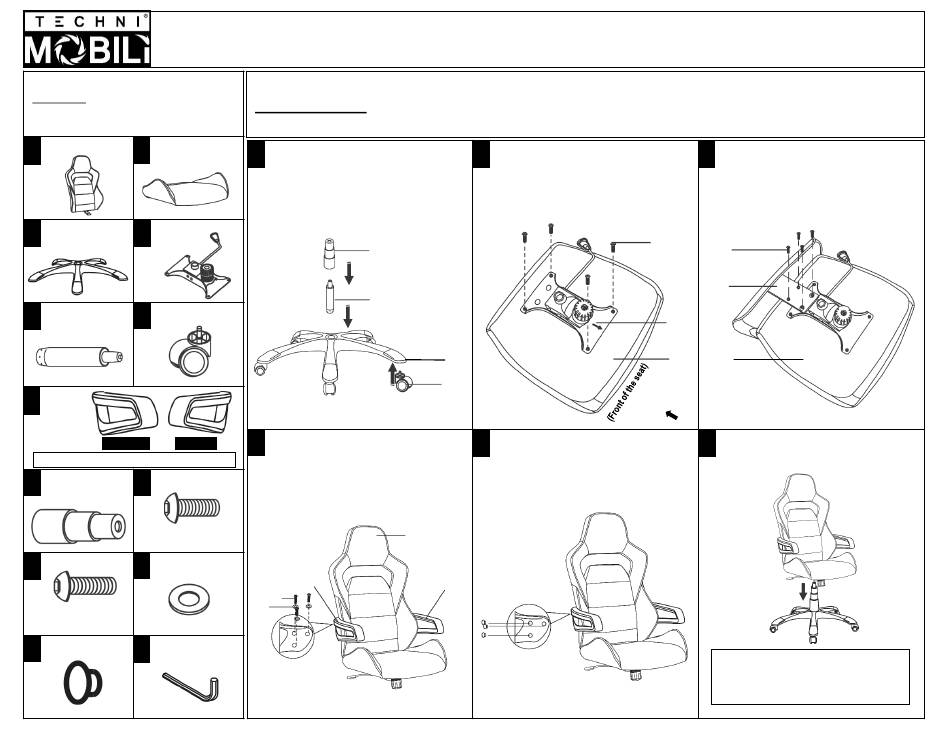

ASSEMBLY INSTRUCTIONS
CHAIR STYLE RTA-2017 AND RTA-2021
• Follow the instructions step by step.
ATTENTION:
• To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
• Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
• Using the wrong size of screws on a part could result in damage to the screw or the part
1
Insert the casters (F) in the legs of the
base (C) using pressure, then place the
gas lift (E) in the middle of the base and
cover it with (H) as shown.
H
E
4
Assemble the armrests (G) in the
respective sides to the backrest (A) from
and washers
behind using screws (J)
(K) as shown.
A
G
(Right)
J
K
2
Flip over the seat (B) with its front
towards you and using screws (I)
assemble the mechanism (D) with its
handle facing to the RIGHT as shown.
C
F
5
Cover the armrest holes with (L).
G
(Left)
L
3
Using screws (J), assemble the
backrest (A) to the seat (B) with its metal
plate on top of the mechanism (D) as
shown.
I
J
A
D
B
B
6
Place the top parts over the base parts
making sure the tip of the gas lift enters
into the hole of the mechanism.
Before seating and using the chair for
the first time, make sure that all
screws are properly tightened.
