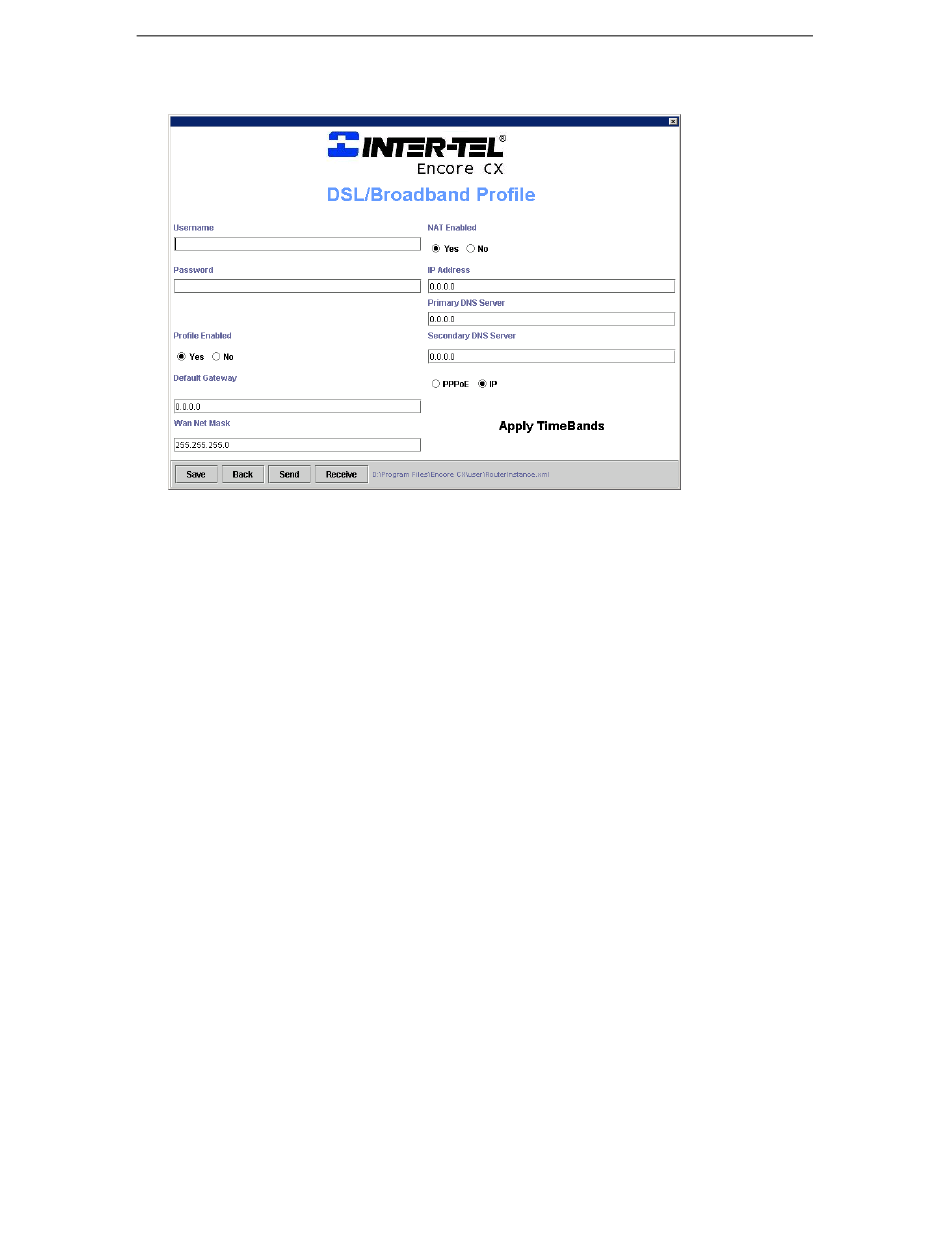

Select DSL/Broadband Profile on the WAN Setup screen. The following screen is displayed.
·
Enter the Username assigned by the ISP to allow access to the Internet. The username can be up
to 60 alphanumeric characters long.
·
Enter the Password assigned by the ISP to allow access to the Internet. The password can be up to
20 alphanumeric characters long.
·
Selecting a Protocol.
Select PPPoE or IP depending on how the ADSL service is delivered. This information will
be provided by your ISP.
·
If using PPPoE, select PPPoE and proceed to the next step (NAT Enabled).
·
If IP addresses are dynamically assigned by the ISP, select IP and proceed to the next step
(NAT Enabled).
·
If IP addresses are to be statically defined, select IP and enter the relevant IP addresses in
the following fields:
Default Gateway IP address
WAN Net Mask
WAN IP address
Primary DNS Server
Secondary DNS Server
·
NAT Enabled - this box is checked by default. This allows all PCs connected to the LAN to
concurrently access the Internet.
·
Profile Enabled - this enables the profile.
·
Click Save.
·
Click Send.
·
Timebands takes you into the Timebands menu, which allows you to restrict Internet access
during certain times of the day. The default setting is that no restrictions are applied. See the
section on Timebands.
The Internet module is now set up for Internet access using DSL.
