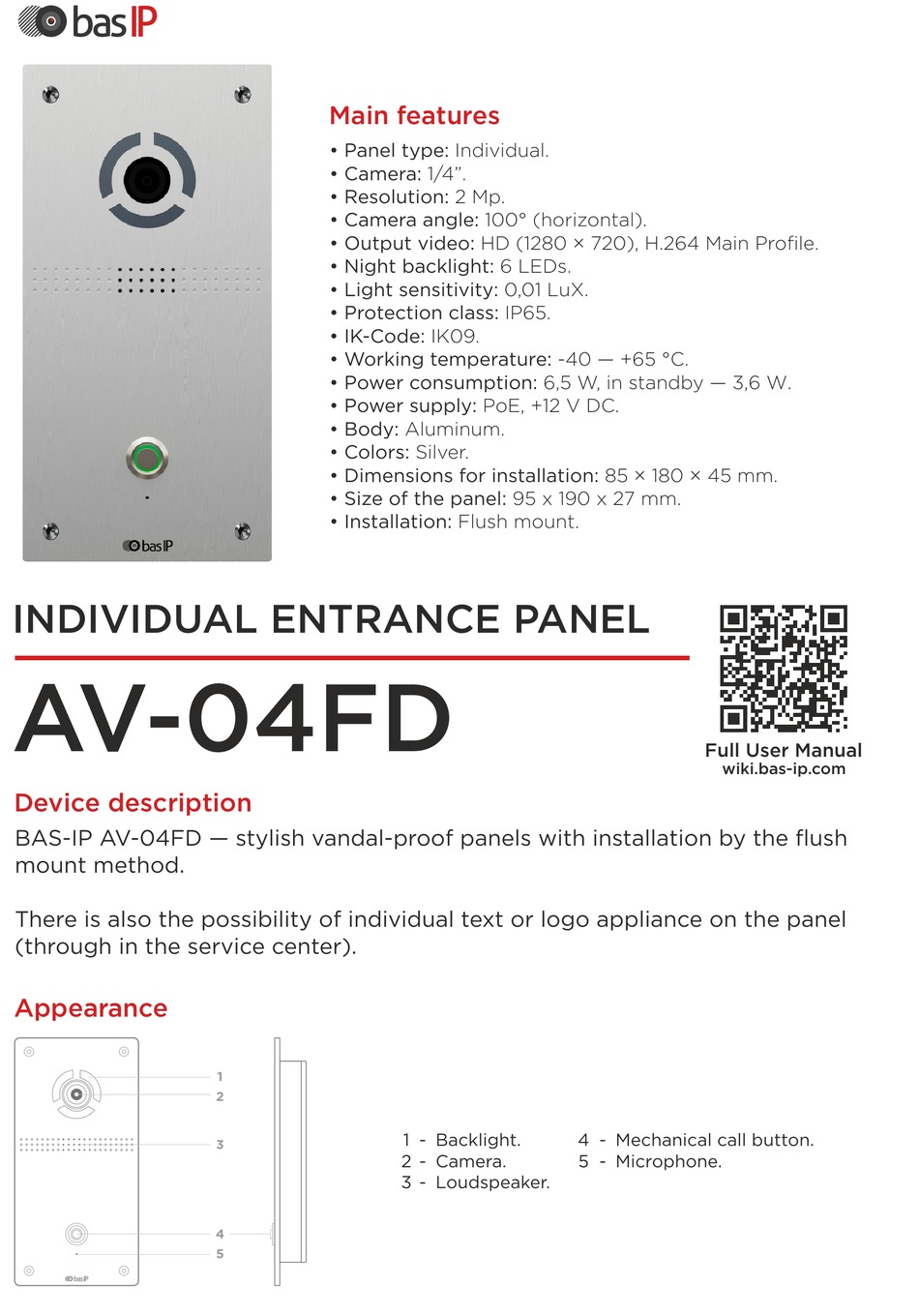

INDIVIDUAL ENTRANCE PANEL
AV-04FD

Device description

BAS-IP AV-04FD — stylish vandal-proof panels with installation by the flush
mount method.
There is also the possibility of individual text or logo appliance on the panel
(through in the service center).
Appearance

Main features

• Panel type: Individual.
• Camera: 1/4".
• Resolution: 2 Мp.
• Сamera angle: 100° (horizontal).
• Output video: HD (1280 × 720), H.264 Main Profile.
• Night backlight: 6 LEDs.
• Light sensitivity: 0,01 LuX.
• Protection class: IP65.
• IK-Code: IK09.
• Working temperature: -40 — +65 °С.
• Power consumption: 6,5 W, in standby — 3,6 W.
• Power supply: PoE, +12 V DC.
• Body: Aluminum.
• Colors: Silver.
• Dimensions for installation: 85 × 180 × 45 mm.
• Size of the panel: 95 x 190 x 27 mm.
• Installation: Flush mount.
1
2
3
4
5
1 - Backlight.
2 - Camera.
3 - Loudspeaker.
Full User Manual
wiki.bas-ip.com
4 - Mechanical call button.
5 - Microphone.
