Directed DB3 Installation Manual page 7

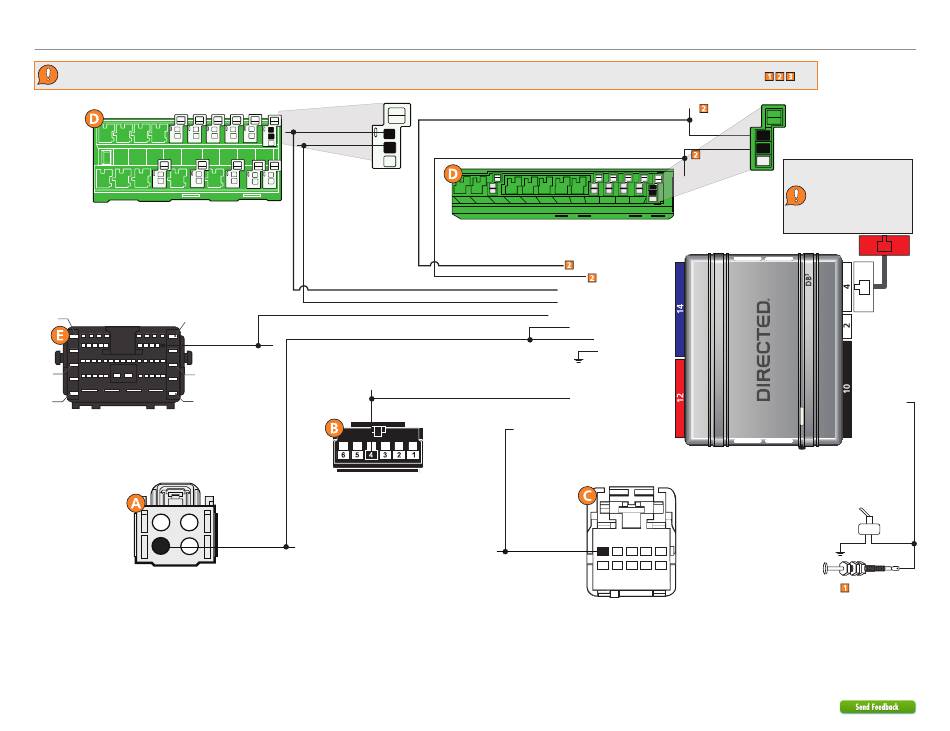

Wiring diagram
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
CAN Junction
(green CAN junction connector
behind headlight switch)
Junction Connector
(black connector, plug - XY401A,
above driver kick panel)
1 10
(+) Ignition Sense:
Pink/White, pin 21
39
23
59
54
BCM
(black-gray 4-pin conn., plug [B],
under driver dash, on firewall)
1 2
3 4
7 403.CHRYSLER20 1.05 2022 Dodge/Ram 2500 (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
CAN C High:
White/Green, pin 1
1
1
2
3
2
CAN C Low:
3
White/Blue, pin 2
(+) PTS:
Violet/Brown, pin 4
Keyless Ignition Node
(black conn. at
Start-Stop button)
(+) 12V:
Violet/Red, pin 3
1
2
3
CAN Junction
(green CAN junction connector
behind headlight switch)
HS CAN 2 High: Tan/Black: 3
HS CAN 2 Low: Tan: 4
HS CAN 1 High: Orange/Green: 5
HS CAN 1 Low: Orange/Brown: 6
(+) Ignition Output: Yellow/Red: 11
(+) 12V Input: Brown/Red: 12
(+) 12V Input: Red: 13
(+) Ground: Black: 14
(+) PTS Output: Gray/Black: 7
(MUX) Parking Light Output: Violet/Brown: 9
Headlight Switch
(black 10-pin conn.)
(MUX) Parking Lights:
White/Brown, pin 1
1 2 3 4 5
6 7 8 9 10
).
CAN IHS High:
White/Gray, pin 1
1
2
CAN IHS Low:
3
White/Orange,
You can connect to either a
pin 2
XL202 RFTD OR a SmartStart
module.
Refer to the SmartStart/XL202
Installation Notes for more
information.
6: White/Black:
(-) Hood Input
Remote Start Safety
Override Switch
Hood Pin
